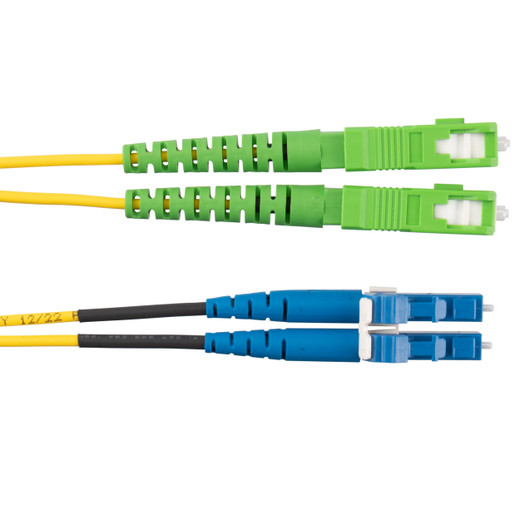

Panduit F92ELANLNSNM015 Opti-Core OS2 Fiber Patch Cord
The Panduit F92ELANLNSNM015 delivers single-mode OS2 performance in a compact 1.6mm duplex cable designed for high-density data center and enterprise fiber deployments. This 15-meter (49.2 ft) patch cord features SC/APC connectors on one end and LC connectors on the other, combining the low back-reflection advantage of angle-polished SC terminations with the space efficiency of LC interfaces. The LSZH jacket meets plenum and riser fire-safety requirements, making it code-compliant for in-building horizontal and vertical runs without additional conduit in many jurisdictions.
Key Features
- OS2 single-mode fiber supports 10G, 40G, 100G, and beyond over extended distances up to 10 km or more
- SC/APC (green) angled connectors reduce return loss to -60 dB typical, critical for high-speed and analog RF-over-fiber links
- Duplex LC connectors on opposite end fit standard SFP/SFP+ transceiver cages in switches, media converters, and NICs
- 1.6mm slim cable diameter enables higher port density in patch panels and cable managers compared to 2.0mm or 3.0mm cordage
- LSZH (Low Smoke Zero Halogen) jacket complies with IEC 60332-1, IEC 60754-1/2, and IEC 61034 for reduced toxic emissions during fire
- 15-meter length suits rack-to-rack connections, cross-aisle links, or floor-to-ceiling vertical runs in typical data center or telecom room layouts
- Yellow outer jacket provides instant visual identification of single-mode OS2 cabling per TIA-598-C color coding
- Factory-terminated and tested to IEC 61300-3-35 (connector endface geometry) and IEC 61300-3-4 (insertion loss) standards
Single-mode OS2 fiber is the backbone of modern 10GBASE-LR, 40GBASE-LR4, 100GBASE-LR4, and emerging 400G optics, offering 9-micron core diameter and zero modal dispersion for multi-kilometer transmission with minimal attenuation (typically 0.4 dB/km at 1310 nm, 0.3 dB/km at 1550 nm). The SC/APC connector on this cord uses an 8-degree angled polish to direct reflected light into the cladding rather than back toward the source—essential when deploying DWDM systems, CATV RF distribution, or any application where return loss below -55 dB is required. The green SC connector boot follows industry convention for APC terminations, preventing accidental mating with flat-polished UPC connectors that would cause immediate endface damage. On the opposite end, the duplex LC interface packs two fibers into the same footprint as a single SC, doubling usable port density on 1U fiber panels and simplifying cabling in 40G/100G SR4 breakout scenarios.
At 1.6mm diameter, this Opti-Core patch cord is 20% slimmer than legacy 2.0mm cordage, reducing bundle cross-section and improving airflow in congested pathways. Installers working under raised floors, in overhead cable trays, or behind vertical wire managers will appreciate the smaller bend radius and improved flexibility when dressing cables into tight turns. The LSZH jacket chemistry substitutes metal hydroxides for PVC and halogenated flame retardants, cutting hydrogen chloride and toxic smoke generation by over 80% compared to PVC-jacketed cables—a requirement in European Union installations per CPR (Construction Products Regulation) Class B2ca and increasingly specified in North American healthcare, transportation, and public-assembly facilities. Panduit's Opti-Core line undergoes factory insertion-loss testing with results traceable to NIST standards, and each jumper ships with individual test data available on request, streamlining contractor documentation and eliminating field testing for moves/adds/changes in audited networks.
This cord is purpose-built for integrators deploying 10G storage-area networks, 40G/100G spine-leaf data center fabrics, or long-haul single-mode links between buildings or campuses. The 15-meter length bridges typical distances between distribution switches and core routers in split-row or end-of-row architectures, and the SC/APC-to-LC asymmetry makes it ideal for connecting legacy SC-based DWDM mux/demux equipment to modern LC-transceiver switches without adapters. Panduit's controlled-environment manufacturing ensures consistent 50-micron ferrule geometry and sub-0.3 dB insertion loss across production lots, and the yellow jacket color aligns with TIA-598-C single-mode identification standards, reducing mis-patching risk during maintenance windows. Backed by Panduit's manufacturer warranty and designed to meet or exceed TIA-568.3-D single-mode cabling performance specifications, the F92ELANLNSNM015 is a field-proven choice for installations where attenuation budget, return loss, and fire safety cannot be compromised.
