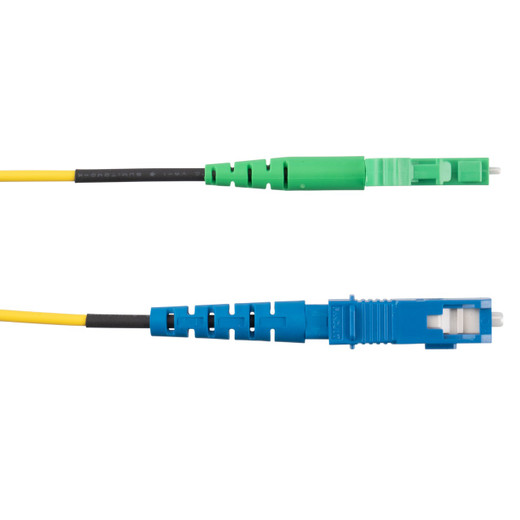

Panduit F91EL3NB1SNM025 Opti-Core OS2 Single-Mode Fiber Patch Cord
The Panduit F91EL3NB1SNM025 is a 25-meter OS2 single-mode fiber optic patch cord engineered for high-speed datacenter and enterprise network installations. Featuring SC to LC/APC simplex connectors and a LSZH-rated jacket, this Opti-Core cable delivers the low insertion loss and fire-safety compliance required for 10G/40G/100G transmission over long distances. The 1.6mm cable diameter supports high-density patching in space-constrained racks, while the yellow jacket provides instant visual identification of OS2 single-mode fiber per industry color standards.
Key Features
- OS2 single-mode fiber supports 10GBASE-LR, 40GBASE-LR4, 100GBASE-LR4 up to 10 km and beyond
- SC to LC/APC simplex connectors with angled physical contact for <-60 dB return loss
- LSZH (Low Smoke Zero Halogen) jacket meets EN 60332-1-2 flammability rating for plenum and riser installations
- 25-meter (82-foot) length ideal for rack-to-rack, floor-to-floor, or equipment-room-to-MDF runs
- 1.6mm outer diameter enables high-density patching and cable management in confined spaces
- Standard insertion loss specification ensures reliable link budgets across multi-hop fiber paths
- Yellow jacket color-coded to OS2 single-mode fiber per TIA-598-C standards
- Panduit Opti-Core quality: factory-terminated, tested, and serialized for traceability
OS2 single-mode fiber uses a 9-micron core and 125-micron cladding to support laser-based transmission over distances up to 10 kilometers (10GBASE-LR) or 40 kilometers (100GBASE-ER4) depending on transceiver type. Unlike multimode fiber, single-mode eliminates modal dispersion, making it the only choice for high-bandwidth applications spanning multiple equipment rooms, campus buildings, or metro-area links. The F91EL3NB1SNM025's APC (Angled Physical Contact) connectors—specifically the LC/APC termination—feature an 8-degree endface angle that directs reflected light into the cladding rather than back toward the source. This produces return loss below -60 dB, critical for DWDM systems, analog CATV distribution, and any application where back-reflection can destabilize laser transmitters or introduce bit errors. Standard insertion loss (typically ≤0.3 dB for Panduit Opti-Core simplex jumpers) leaves headroom in link budgets for connectors, splices, and fiber length attenuation, which runs approximately 0.4 dB/km at 1310 nm and 0.25 dB/km at 1550 nm for OS2 fiber.
The SC-to-LC connector pairing reflects real-world datacenter and telco topologies: SC connectors commonly terminate equipment-side fiber interfaces on legacy switches, storage arrays, and DWDM multiplexers, while LC connectors dominate high-density patch panels and modern SFP/SFP+/QSFP transceivers. A 25-meter length bridges typical rack-to-rack distances within a single equipment room, connects main distribution frames (MDF) to intermediate distribution frames (IDF) on adjacent floors, or spans raised-floor datacenter rows without excess slack that complicates cable management. The 1.6mm cable diameter—roughly half the size of standard 3.0mm duplex jumpers—allows integrators to fit more cables through cable trays, vertical managers, and conduit, reducing congestion and improving airflow in hot-aisle containment scenarios. LSZH jacketing substitutes halogenated flame retardants with mineral fillers and hydrated metal compounds; during fire, it emits 20–40% less smoke and zero corrosive halogen acids compared to PVC, protecting personnel in enclosed spaces and preventing damage to sensitive electronics. EN 60332-1-2 certification confirms the cable self-extinguishes when the flame source is removed, meeting European and international building codes for plenum, riser, and general-purpose installations.
Panduit Opti-Core patch cords ship with serialized test reports documenting insertion loss, return loss, and endface geometry per IEC 61300-3-35 interferometry standards. Each SC and LC connector endface is inspected for scratches, contamination, and core-to-ferrule concentricity before leaving the factory, ensuring Day 1 compliance with IEEE 802.3 optical power budgets. When planning fiber runs, verify that both ends of the link match connector gender (simplex vs. duplex), polish type (APC vs. UPC—never mix them, as the 8-degree angle mismatch causes >1 dB insertion loss), and fiber type (OS2 single-mode vs. OM3/OM4 multimode). This F91EL3NB1SNM025 cable is sold individually with a carton quantity of 10 for volume deployments; ensure your transceivers, media converters, or fiber NICs support the 9/125 single-mode wavelengths (typically 1310 nm or 1550 nm) rather than 850 nm multimode optics before ordering.
