Panduit F91EL1NB1SNM015 Opti-Core OS2 Single-Mode Fiber Patch Cord

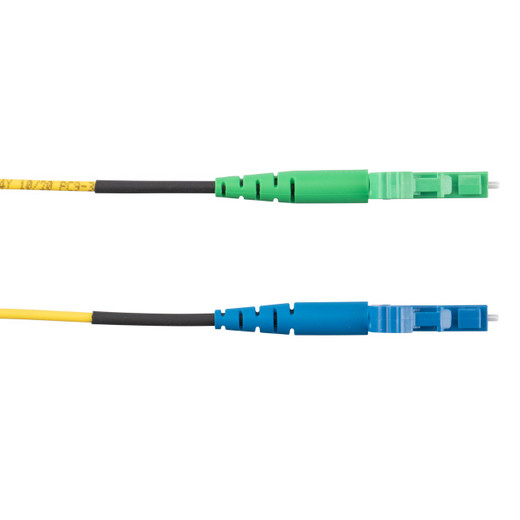

The Panduit F91EL1NB1SNM015 is a 15-meter OS2 single-mode fiber optic patch cord engineered for high-performance datacenter, security camera backhaul, and long-distance surveillance network installations. This simplex cable terminates in LC connectors on both ends—standard physical contact (PC) on one side and angled physical contact (APC) on the other—delivering the <8° polish required to suppress back-reflection in analog video transport, coherent optical systems, and RF-over-fiber links. The 1.6mm low-smoke zero-halogen (LSZH) jacket meets EN 60332-1-2 flame-test requirements for enclosed pathways and overhead plenum runs where PVC off-gassing is prohibited by fire marshal or building code.
Key Features
- OS2 9/125μm single-mode fiber rated for 10/40/100 Gb Ethernet and analog CCTV transmission beyond 10 km
- LC Simplex to LC/APC hybrid termination—PC polish for transceivers that don't support APC, APC polish for FTTx ONTs and PON equipment
- 1.6mm cable diameter enables tight-radius bends (10× bend radius = 16mm) in high-density patch panels and equipment racks
- LSZH jacket complies with EN 60332-1-2 and IEC 60754 for low-halogen emissions in occupied spaces
- Standard insertion loss (IL) grade—factory-tested to <0.3 dB typical at 1310/1550 nm wavelengths
- Yellow jacket follows TIA-598-C color coding for single-mode fiber identification
- Panduit Opti-Core construction—aramid yarn strength member and precision-polished ceramic ferrules
- 15-meter (49.2 ft) length suits intra-rack, rack-to-rack, and floor-to-floor datacenter runs
OS2 single-mode fiber uses a 9μm core diameter that confines light to a single propagation mode, eliminating modal dispersion and enabling transmission distances up to 40 km on 10GbE links and well beyond 100 km on coherent 100G/400G optics. Security integrators deploy OS2 for IP camera backhaul from remote gate stations, perimeter towers, and parking structures where copper or multimode fiber can't bridge the span. The LC Simplex form factor delivers one fiber strand per connector body—half the port density of LC duplex but essential when interfacing with SFP-based media converters, single-fiber bidirectional (BiDi) transceivers, or legacy analog-video-over-fiber systems that transmit and receive on the same strand using wavelength-division multiplexing. The hybrid PC/APC termination on this cable solves a common field problem: enterprise switches and NVRs typically ship with UPC (PC-polished) transceiver ports that suffer damage when mated to APC connectors, while fiber-to-the-desk ONTs and PON OLTs require APC to meet <−60 dB return-loss specs. By providing PC on one end and APC on the other, the F91EL1NB1SNM015 bridges both worlds without requiring field re-termination or mode-conditioning patch panels.
The 1.6mm cable diameter is Panduit's tight-bend construction, designed for installations where space is constrained—inside server cabinets with shallow horizontal managers, behind wall-mounted fiber distribution units, or within tight-radius corner pulls in overhead cable tray. Standard 2mm and 3mm fiber cables require 20–30mm minimum bend radius to avoid microbending attenuation; the 1.6mm variant achieves the same optical performance at 16mm bend radius, yielding 40% tighter routing. Installers working in high-density colocation environments or modular datacenter pods use this form factor to reduce congestion at patch-panel breakout points where dozens of fibers converge on a single 1U panel. The simplex LC connector uses a 1.25mm ceramic ferrule with push-pull latch—smaller footprint than SC but more robust than the plastic-bodied LC variants found in consumer-grade patch cords. Panduit's ceramic ferrule maintains <0.1 dB insertion-loss variation across 500 mating cycles, critical for field techs who re-patch surveillance networks during MAC (move-add-change) operations or troubleshooting.
The LSZH jacket is a halogen-free thermoplastic compound that produces <0.5% hydrogen chloride and hydrogen fluoride gas when exposed to flame, compared to 20–30% for standard PVC. Fire codes in occupied buildings—hospitals, schools, transit stations, and high-rise residential—often mandate LSZH or plenum-rated (OFNP) cable for any pathway above a drop ceiling or inside a vertical riser shaft. LSZH meets those requirements without the cost premium of Teflon FEP plenum jackets, and the low-smoke characteristic improves visibility during evacuation. The yellow jacket color follows TIA-598-C Appendix A, which specifies yellow for OS2 single-mode, aqua for OM3/OM4 multimode, and green for OM5. Field techs rely on jacket color to distinguish fiber types at a glance during after-hours maintenance or emergency restoration; incorrect fiber-type patching (plugging single-mode into multimode transceiver ports) causes immediate link failure and potential optic damage. EN 60332-1-2 is the European vertical flame-spread test—equivalent to UL 1581 VW-1 in North America—certifying that the jacket self-extinguishes and does not propagate flame beyond the ignition point.
Panduit ships this cable in cartons of 10 with individual retail packaging for each jumper, simplifying inventory management for integrators who stock common lengths on service vehicles or in project kits. The Opti-Core sub-brand denotes Panduit's structured-cabling-grade fiber line, which includes factory-terminated trunk assemblies, MTP/MPO modules, and field-installable connectors that share the same insertion-loss and return-loss performance spec as this patch cord. Integrators standardizing on Panduit Opti-Core can mix factory and field-terminated components in the same installation with confidence that end-to-end link budgets will meet IEEE 802.3 and TIA-568 channel loss limits. For surveillance deployments, this cable pairs with Panduit's LC-to-SC or LC-to-ST media converters when extending analog PTZ or legacy coax cameras over fiber, and with Panduit's fiber enclosures and splice trays when building out distributed antenna systems (DAS) or fiber-to-the-camera (FTTC) architectures in stadiums and industrial campuses.
