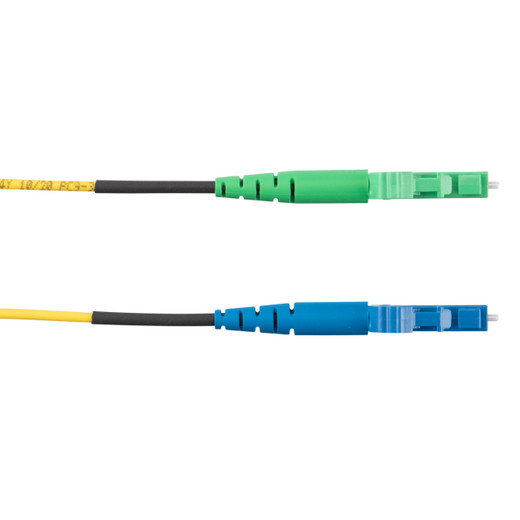

Panduit F91EL1NB1SNM002 OS2 Single Mode Fiber Optic Patch Cord
The Panduit F91EL1NB1SNM002 is a 2-meter OS2 single-mode fiber patch cord engineered for high-performance datacenter and enterprise network deployments. Featuring LC Simplex connectors with one UPC and one APC polish, this 1.6mm LSZH cable delivers the low insertion loss and superior return-loss performance required for 10G, 40G, 100G Ethernet links, fiber channel storage networks, and long-haul optical transmission systems. The slimline 1.6mm jacket enables higher-density cable management in congested rack environments while meeting international flammability standards for plenum and riser installations.
Key Features
- OS2 Single-Mode Fiber: 9/125µm core/cladding diameter supports transmission distances up to 10 km (10GBASE-LR) or 40 km (10GBASE-ER) depending on transceiver optics, ideal for campus backbone and inter-building links
- LC Simplex to LC/APC Connectors: Small form-factor LC connectors on both ends, with UPC polish on one side and APC (Angled Physical Contact) polish on the other, reducing return loss to <-60 dB for applications sensitive to back reflection such as analog video over fiber, DWDM, and coherent detection systems
- 1.6mm Low-Profile Cable: Smaller outer diameter than standard 2.0mm or 3.0mm patch cords allows tighter bend radius and higher port density in confined spaces, simplifying cable management in crowded patch panels and switch fabrics
- LSZH Jacket Material: Low Smoke Zero Halogen construction meets EN 60332-1-2 flame propagation requirements and emits minimal smoke and no halogenated gases during combustion, ensuring code compliance for plenum spaces, data halls, and international installations where toxic fume egress is regulated
- Standard Insertion Loss: Factory-terminated and tested to deliver ≤0.3 dB insertion loss typical, ensuring optical power budgets remain within spec for 10GbE, 25GbE, 40GbE, and 100GbE links without requiring additional attenuation margin
- Industry-Standard Yellow Jacket: High-visibility yellow outer jacket follows TIA-598 color coding for single-mode fiber, preventing accidental cross-connection with multimode (aqua/orange) cables during installation and maintenance
- 2-Meter Length: 6.5-foot cable suits rack-to-rack connections, top-of-rack to end-of-row aggregation switches, or intra-rack server-to-switch links in typical datacenter and telecom equipment layouts
OS2 single-mode fiber is the backbone of modern long-haul and high-speed optical networks. Unlike multimode fiber (OM3, OM4, OM5), which uses a larger 50µm or 62.5µm core and LED or VCSEL light sources, single-mode fiber's 9µm core supports laser-based transmission with near-zero modal dispersion, enabling multi-kilometer link distances and wavelength-division multiplexing (WDM) for maximum bandwidth density. The F91EL1NB1SNM002's OS2 rating certifies attenuation ≤0.4 dB/km at 1310 nm and ≤0.3 dB/km at 1550 nm, meeting or exceeding ITU-T G.652.D specifications for bend-insensitive single-mode fiber. This makes it suitable for 10GBASE-LR (10 km), 10GBASE-ER (40 km), 40GBASE-LR4, 100GBASE-LR4, and emerging 400G standards, as well as legacy Gigabit Ethernet and Fiber Channel 8G/16G/32G storage networks.
The APC connector polish is a critical differentiator for installations where return loss (back reflection) can degrade signal integrity or damage sensitive optical components. Standard UPC (Ultra Physical Contact) connectors have a flat or slightly curved endface, resulting in return loss around -50 dB; light reflects straight back into the transmitter, which can cause bit errors in high-speed digital links or visible noise in analog video transmission. APC connectors feature an 8-degree angled endface that directs reflected light into the cladding rather than back down the core, achieving return loss better than -60 dB. This is essential for DWDM systems, coherent 100G/400G optics, RF-over-fiber and analog CATV distribution, and any application using Fabry-Perot or DFB lasers sensitive to feedback. The F91EL1NB1SNM002's LC Simplex-to-LC/APC configuration supports scenarios where one end terminates at standard datacenter equipment (UPC) and the other connects to a device requiring APC—common in hybrid fiber/analog video systems, optical time-domain reflectometer (OTDR) testing setups, or when bridging enterprise Ethernet gear with telco/DWDM transport equipment.
The 1.6mm cable diameter is a key advantage in high-density environments. Traditional 2.0mm or 3.0mm single-mode patch cords, while robust, consume valuable pathway and panel space; a 24-port fiber patch panel filled with 3.0mm cables can become difficult to service and prone to exceed bend-radius limits when routed through horizontal or vertical cable managers. The F91EL1NB1SNM002's slimline 1.6mm construction reduces bundle diameter by up to 40%, enabling cleaner routing, improved airflow around cable bundles, and lower stress on connector clips during moves/adds/changes. This is particularly valuable in blade server enclosures, SAN (Storage Area Network) core switches, and top-of-rack aggregation layers where dozens of fiber links converge within a few rack units. Despite the smaller diameter, the cable maintains sufficient tensile strength and crush resistance for normal handling; Panduit's Opti-Core design includes aramid strength members and a durable outer jacket that meets pull tension and impact requirements without sacrificing bend performance.
LSZH jacket material is increasingly mandatory in commercial, institutional, and international datacenter construction. Building codes in the EU, Asia-Pacific, and many North American municipalities now require Low Smoke Zero Halogen cables in spaces where occupants may be present during a fire—data centers, telecommunications rooms, risers, plenums, and horizontal pathways above drop ceilings. Traditional PVC (polyvinyl chloride) jackets release dense black smoke and hydrochloric acid gas when burned, reducing visibility, corroding electronic equipment, and creating respiratory hazards during evacuation. LSZH compounds, by contrast, emit minimal particulate smoke and zero halogenated gases, preserving egress routes and reducing long-term damage to servers, switches, and storage arrays in the event of fire. The F91EL1NB1SNM002's EN 60332-1-2 compliance certifies vertical flame propagation resistance, ensuring the cable will self-extinguish and not contribute to fire spread along vertical cable runs.
Installation is straightforward: clean both connector endfaces with lint-free wipes and isopropyl alcohol, inspect for scratches or contamination under a fiber microscope (endface should show clean core with no debris in the ferrule contact zone), insert connectors with a firm push until the latch clicks, and verify link light or measure insertion loss with an optical power meter and light source (target <0.5 dB total link loss for a 2-meter jumper). For APC connectors, avoid mating APC to UPC—mixing polish types causes high loss (>1 dB) and potential endface damage due to the 8-degree angle mismatch. Always mate APC to APC and UPC to UPC. The yellow jacket provides at-a-glance identification of single-mode fiber, reducing the risk of plugging SM transceivers into MM fiber or vice versa—an error that results in either no link or severely degraded performance.
This patch cord ships in single-unit packaging with 10 units per carton, simplifying inventory management for integrators stocking common jumper lengths. Panduit's Opti-Core line is widely deployed in Fortune 500 datacenters, telecom central offices, broadcast facilities, and large-scale security control rooms where fiber uplinks carry IP camera streams from remote buildings or analog HD video over fiber from stadium/campus perimeter cameras. The combination of OS2 performance, APC return-loss mitigation, LSZH fire safety, and slim 1.6mm form factor makes the F91EL1NB1SNM002 a versatile choice for any project requiring standards-compliant, high-density single-mode connectivity over short to moderate distances.
