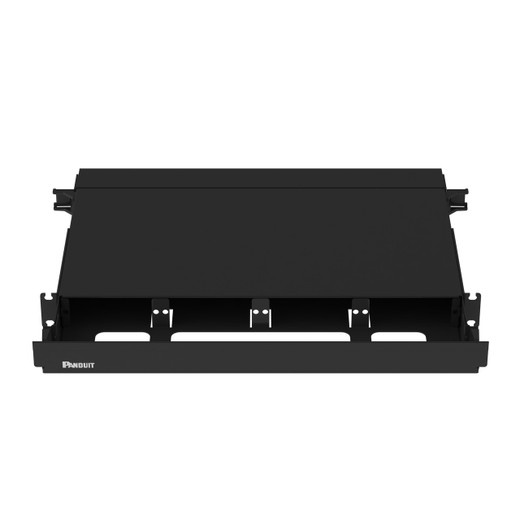

Panduit FRE1UBL Opticom 1RU Fiber Enclosure

The Panduit FRE1UBL Opticom rack mount frame consolidates up to 96 fiber terminations in a single rack unit, addressing the density challenges inherent in enterprise datacenter and telecom backbone installations. This black steel enclosure accommodates four cassette or FAP (Fiber Adapter Panel) slots with front and rear slide-out drawer access, enabling technicians to perform MACs (moves, adds, changes) without disturbing adjacent fibers or taking circuits offline. The frame supports LC duplex terminations across both single-mode and multimode fiber architectures, meeting TIA structured cabling standards for campus and building distributor deployments where rack space is at a premium and cable management discipline is non-negotiable.

Key Features

• 1RU steel construction holds up to 96 fiber terminations across 4 cassette/FAP slots
• Dual slide-out drawer design: front and rear access for MACs without service interruption
• Multi-platform compatibility: accepts 4 FAP panels, 4 Opticom cassettes, or 8 HD Flex cassettes
• LC duplex connector interface supports SM and MM fiber in the same enclosure
• Integrated cable management: adjustable hinge, front door, rear cover, and strain-relief pathways
• TIA-compliant structured cabling enclosure for campus backbone and building distributor applications
• Compact 1.72" H × 17.6" W × 15.59" D footprint fits standard 19" EIA racks

Fiber density in datacenter and telecom environments has escalated dramatically over the past decade, driven by 40G/100G/400G backbone migrations, hyperconverged storage fabrics, and distributed antenna system (DAS) fiber feeds serving in-building wireless infrastructure. The FRE1UBL addresses this density challenge by providing a modular architecture that accommodates up to 96 individual fiber strands within a single rack unit—equivalent to 48 duplex LC connections when fully populated with standard-density cassettes. The frame's four-slot design accepts Panduit FAP (Fiber Adapter Panel) modules for field-terminated applications, Opticom cassettes with factory pre-terminated MPO trunk-to-LC breakout configurations, or HD Flex high-density cassettes that double the port count per slot to reach maximum 96-fiber capacity. This modularity allows installers to start with a sparse fiber count—say, two cassettes supporting 24 circuits for initial datacenter buildout—and scale incrementally as circuit demand grows during tenant expansion or server refresh cycles, avoiding the rip-and-replace penalty of fixed-port enclosures that force over-provisioning at day one. The steel chassis provides structural rigidity necessary to support heavy trunk-cable loads, a critical consideration when terminating 144-strand or 288-strand OS2 single-mode trunks entering from overhead cable tray or underfloor conduit systems. The front door and rear cover protect connectors from dust accumulation and accidental contact during adjacent equipment service—a failure mode that causes insertion-loss spikes and elevated optical return loss on live 10GBASE-LR, 40GBASE-SR4, and 100GBASE-CWDM4 links in production switching environments.

Technicians working in live network environments need to perform adds, moves, and changes without taking entire fiber links offline or disturbing adjacent circuits carrying production traffic. The FRE1UBL's dual slide-out drawer mechanism—accessible from both the front (hot aisle) and rear (cold aisle) of the rack—enables this level of service continuity that fixed-mount patch panels cannot provide. Front access allows field techs to trace and re-patch horizontal circuits during office moves, VLAN reconfigurations, or server migrations without needing to access the rear of the cabinet, which may be blocked by vertical cable managers or positioned against a wall in space-constrained network closets. Rear access provides direct reach to backbone trunks running vertically between floors via riser conduit or horizontally between buildings via campus duct bank, enabling long-haul OS2 single-mode circuit management without disrupting the horizontal LC patch cords connected to front-facing active equipment. The adjustable hinge mechanism prevents the minimum-bend-radius violations (typically 1.5 inches for 2mm duplex LC cordage per TIA-568-C.3, 1.2 inches for 1.6mm simplex cordage) that lead to optical return loss degradation, elevated insertion loss, and increased bit-error rates on sensitive 10G/40G/100G links where link margin is already constrained by long span distances or passive optical splitter insertion loss. Cable management features include integrated pass-through slots for securing trunk cables with hook-and-loop tie wraps or cable lacing bars, preventing the cable-sag issues that plague poorly dressed fiber installations when service loops exceed 12 inches and begin to impose gravitational stress on connector end-faces. For datacenter operators managing hundreds of cross-connects between spine switches, leaf switches, and storage arrays in Clos or spine-leaf architectures, the frame's black powder-coated finish provides a professional appearance consistent with structured cabling standards, and the open-slot architecture simplifies visual circuit tracing using colored cassette modules (aqua for OM3/OM4 multimode, yellow for OS2 single-mode) or individually labeled FAP inserts.

The cassette compatibility matrix is critical for future-proofing fiber infrastructure investments in environments where migration from 10G to 40G to 100G occurs over multi-year refresh cycles. The FRE1UBL accepts standard Panduit Opticom cassettes in MTP/MPO-12 or MTP/MPO-24 trunk configurations, allowing installers to deploy pre-terminated trunk assemblies from equipment rooms to telecom closets or between datacenter rows without field splicing—reducing deployment time from days to hours and eliminating the performance variability associated with fusion splicing in the field. Each standard Opticom cassette supports 12 LC duplex connections (24 fibers), so a fully populated four-cassette frame delivers 48 duplex ports for connecting to SFP/SFP+/QSFP transceiver modules on switches and media converters. Alternatively, installers can deploy HD Flex high-density cassettes that pack 12 LC duplex connections into a half-width form factor, enabling eight cassettes per frame for a total of 96 duplex ports—effectively doubling port density for applications like high-radix leaf switches with 48× 10GbE SFP+ ports requiring individual fiber pairs to each server top-of-rack connection. FAP modules support field-terminated applications where installers are splicing or connectorizing individual simplex or duplex fibers on-site, common in retrofit installations or when extending existing structured cabling plants built with legacy SC or ST connectors. The frame also accommodates FOSM splice modules for passive optical LAN (POL) deployments where centralized optical line terminal (OLT) equipment feeds remote optical network terminals (ONT) through 1:4, 1:8, or 1:16 passive splitters housed within the enclosure, consolidating splice trays and splitter modules in a single 1RU footprint rather than consuming multiple rack units with separate splice enclosures.

Installation and cable routing discipline directly impact long-term reliability and troubleshooting efficiency in high-density fiber environments. The FRE1UBL's strain-relief pathways and cable pass-through slots guide trunk cables into the rear of the enclosure without imposing sharp bends or crush points where buffer tubes or aramid strength members might sustain damage during initial installation or subsequent maintenance. For trunk cables entering from above (overhead cable tray), the rear pass-through slots allow vertical entry with a smooth 90-degree bend radius, while cables entering from below (underfloor conduit or raised-floor grommets) can route upward into the frame without kinking. The adjustable hinge allows the drawer assembly to pivot open beyond 90 degrees, providing clear sight lines to connector end-faces during cleaning or inspection with a fiber microscope—a mandatory step before mating any fiber connection to avoid contamination-induced insertion loss or end-face damage. The front door and rear cover are removable for installations where airflow or rapid access is prioritized over dust protection, though best practice in production datacenters is to keep covers installed except during active maintenance windows to prevent particulate contamination from HVAC systems or raised-floor dust infiltration. For environments with seismic or vibration concerns—such as telecom central offices near rail lines or datacenters in seismically active regions—the steel construction and four-point rack-mount pattern provide mechanical stability that lightweight plastic or aluminum enclosures cannot match, reducing the risk of connector unmating or fiber breakage during seismic events or equipment vibration from adjacent high-RPM cooling fans.

The FRE1UBL meets TIA-568-C.3 and TIA-942-B structured cabling requirements for main cross-connects, horizontal cross-connects, and equipment distributor enclosures, supporting both OM3/OM4 multimode deployments (typical in 10G/40G horizontal applications up to 300 meters at 850nm) and OS2 single-mode backbones extending beyond campus distances at 1310nm or 1550nm wavelengths. The frame ships with the mounting hardware required for standard 19-inch EIA-310-D compliant racks, including cage nuts, screws, and rear support brackets, and its 15.59-inch depth fits within both shallow network cabinets (600mm front-to-rear depth) and deeper server racks (1000mm or 1200mm depth) without interfering with rear cable-management brackets, vertical PDU installations, or rear-door heat exchangers. For integrators building or refreshing structured cabling plants where future fiber count is uncertain—common in multi-tenant office buildings, grow-to-fit datacenters, or phased campus network upgrades—the FRE1UBL's pay-as-you-grow cassette model eliminates the capital waste of over-provisioning fixed-port enclosures while maintaining the 96-fiber port density required to justify 1RU consumption in space-constrained colocation environments where rack-unit costs exceed $100 per month. This modular scalability also reduces the performance risk of deploying unterminated dark fiber "for future use" that may degrade due to contamination or connector corrosion before the capacity is actually needed, allowing operators to deploy and test each cassette as demand materializes rather than front-loading all 96 ports at initial turnup.
