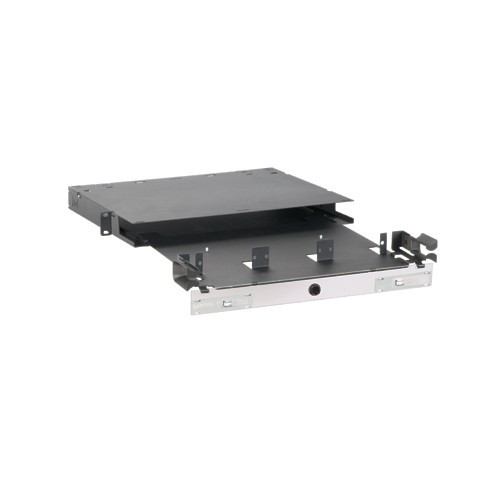

Panduit FRME1U Opticom 1RU Fiber Rack Frame

High-density fiber termination in telecom rooms and data centers demands bulletproof cable management that won't choke under capacity or fail during MACs. The Panduit FRME1U Opticom rack-mount fiber frame solves the 1RU density challenge: 72-fiber capacity across three modular slots, steel construction that survives decades of drawer cycling, and front/rear service access that eliminates the "pull the whole rack" nightmare during moves-adds-changes. Built for integrators installing enterprise fiber backbones, carrier aggregation points, or SAN interconnects where every RU counts and re-termination downtime isn't an option.

Key Features

• 72-Fiber Capacity in 1RU — Three modular slots accept FAP/FMP adapter panels or FOSM splice modules, each supporting up to 24 fibers; triple-slot configuration maximizes port density without vertical sprawl in 42U racks
• Dual Pull-Out Drawer Access — Front and rear extraction drawers provide full cable access for termination, testing, and patching without rack removal or adjacent-equipment disturbance; critical for live-network MACs in colocation environments
• Steel Chassis Construction — Black powder-coated steel frame withstands repeated drawer cycling and mounting hardware torque; rated for standard 19" EIA racks with #12-24 cage nuts or tapped rails
• Opticom Platform Compatibility — Native integration with Panduit FAP (Fiber Adapter Panel), FMP (Fiber Management Panel), and FOSM (Fiber Optic Splice Module) cassettes; modular design supports mixed LC/SC/ST/MPO terminations within single frame
• Cable Routing & Strain Relief — Internal bend-radius management guides and rear cable entry supports maintain minimum 1.5" bend radius per TIA-568 fiber standards; prevents microbend attenuation during high-density installs
• 1.74" Profile — True 1RU height (44.2mm) fits standard rack spacing; 14.20" depth clears shallow telecommunications cabinets and wall-mount swing frames common in IDF/MDF installations

The FRME1U addresses the modular-termination challenge in multi-tenant buildings and enterprise campuses where fiber counts fluctuate and termination standards vary by vendor. Three independent cassette slots let you deploy LC duplex adapters for 10GBase-SR server links in slot 1, SC/APC connectors for outside-plant GPON feeds in slot 2, and 12-fiber MPO-12 cassettes for 40G QSFP+ uplinks in slot 3 — all within the same 1RU frame. Each slot accepts Panduit FAP adapter panels (up to 24 LC duplex or 12 SC simplex per panel), FMP fiber management panels with integrated cable routing, or FOSM splice modules for fusion-splice terminations. This eliminates the "committed-at-install" trap where fixed-port panels lock you into connector types that don't match future switch purchases. Cassette modularity also isolates failure domains: a damaged MPO cassette in slot 3 swaps out in under two minutes without disturbing the LC production links in slots 1-2.

Front and rear pull-out drawers solve the access problem in fully populated racks. Traditional hinged-door fiber panels force you to swing the door into adjacent rack space — a non-starter when racks sit side-by-side in hot-aisle containment or when the panel backs up to a wall in telecommunications rooms. The FRME1U's drawer mechanism slides forward (front service) or rearward (rear service) on integrated rails, exposing all 72 fiber terminations and splice trays without requiring clearance beyond the rack's footprint. During MAC work, this means you can re-patch a 10G link or replace a failed pigtail while standing directly in front of the rack, with both hands free and full visibility of cable labels — critical for avoiding the "pulled wrong fiber" incidents that plague cramped IDF closets. The drawer's positive-lock detents hold it in the extended position during patching, preventing accidental closure mid-task. Steel roller guides rated for 10,000+ cycles ensure the drawer doesn't bind or sag even after years of daily access in high-change environments like colocation facilities or university network cores.

Internal cable management follows TIA-568.3-D fiber handling standards, with radiused guides that enforce minimum bend-radius compliance for both single-mode and multimode cables. Rear cable entry supports tie-down points for breakout kits and distribution cables, preventing trunk-weight transfer to individual fibers during vertical riser installs. The frame accommodates both pre-terminated MPO trunk cables (pulled from riser to frame, then broken out to LC duplex pigtails) and field-terminated individual fibers (spliced within FOSM modules). This dual-termination support makes the FRME1U viable for both new-build structured cabling (where pre-term trunks speed deployment) and retrofit projects (where you're splicing onto existing installed fiber that can't be replaced). Buffer tube routing channels within the frame segregate cable types — tight-buffered indoor cables route along the left channel, loose-tube OSP cables along the right — preventing cross-compression that causes attenuation in mixed-cable environments.

The FRME1U mounts to standard 19" EIA-310-D racks using #12-24 mounting screws (four-point attachment, two per side). The 17.38" overall width provides 0.31" clearance per side when mounted in square-hole racks with vertical rails, ensuring the frame doesn't bind against rail flanges during drawer extension. 14.20" depth fits shallow 18" telecom racks and deep 36" server racks alike; integrators report successful installs in wall-mount swing frames as shallow as 16" (with rear cable entry pre-routed before frame installation). Black powder-coat finish matches standard rack aesthetics and resists corrosion in non-climate-controlled telecommunications spaces. RoHS compliance per EU Directive 2011/65/EU ensures specification compatibility with corporate procurement policies and government contracts requiring hazardous-substance restrictions. Panduit includes a limited lifetime warranty covering material and manufacturing defects — relevant for integrators bidding long-term maintenance contracts where component lifespan affects total cost of ownership.
