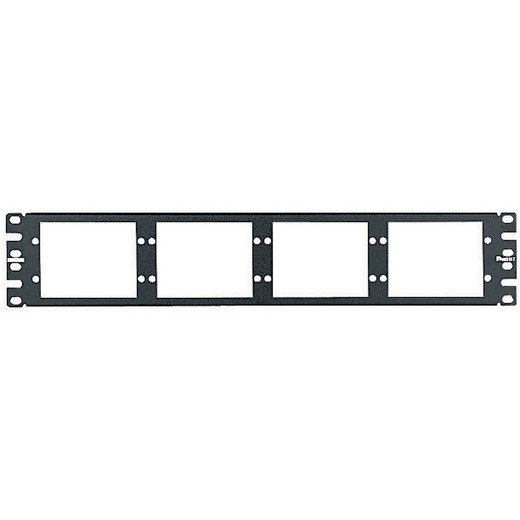

Panduit CFAPPBL2 Opticom® Fiber Patch Panel

The Panduit CFAPPBL2 is a 2U flat fiber patch panel engineered for high-density rack environments where modular fiber management and front-access serviceability drive installation efficiency. Built from black powder-coated steel, this panel accommodates up to four Opticom® cassettes or FAP adapter panels, integrating with FMT1 and FMT2 cable management ducts to deliver scalable fiber termination in datacenter, telecom closet, and enterprise backbone deployments. At 19" wide and 3.47" tall, it mounts to standard EIA racks and supports OM3 multimode fiber infrastructure with TIA/EIA-568-C.3 compliance.

Key Features

• 2U Modular Design: Holds four Opticom® cassettes or FAP adapter panels for flexible port density scaling from 24 to 96 fibers per panel depending on cassette configuration
• Front-Loading Architecture: All cassettes and adapter panels install and service from the front, eliminating rear-rack access requirements in deep or back-to-back cabinet layouts
• FMT Duct Integration: Designed for use with Panduit FMT1 and FMT2 horizontal cable management systems to maintain bend-radius compliance and prevent fiber stress at panel entry points
• 19" EIA Rack Compatibility: Standard 482.6mm width with universal mounting holes for two-post, four-post, and wall-mount rack configurations
• Black Powder-Coated Steel: Durable cold-rolled steel construction with corrosion-resistant finish rated for 10+ year service life in controlled environments
• OM3 Fiber Support: Optimized for 10Gb Ethernet and 16Gb Fibre Channel applications over laser-optimized 50/125µm multimode fiber to 300 meters
• TIA/EIA-568-C.3 Compliant: Meets or exceeds commercial building telecommunications cabling standards for optical fiber transmission performance and installation practices
• RoHS Conformant: Lead-free manufacturing meets EU Directive 2011/65/EU for restricted hazardous substances in electronic equipment

The CFAPPBL2's flat form factor positions all connector interfaces on a single vertical plane, enabling dense port counts without the depth penalties of angled or staggered panel designs. This geometry suits installations where rack depth is constrained or where rear door heat exchangers limit usable cabinet space. The panel's four cassette bays accept any combination of Panduit Opticom® cassettes—LC, SC, MPO, or hybrid configurations—letting installers match connector types to endpoint requirements without ordering separate panel SKUs for each interface standard. Mounting hardware ships with the panel and includes cage nuts, screws, and grounding lugs for bonding to rack infrastructure per ANSI/TIA-607-B telecommunications grounding and bonding requirements.

In multi-tenant datacenter or campus backbone scenarios, the CFAPPBL2 serves as a centralized cross-connect point where riser cables from floors or buildings terminate into cassettes, then patch to switch uplinks or storage arrays via LC or SC duplex jumpers. The front-access model simplifies adds, moves, and changes—technicians pull cassettes forward on their retention clips to access individual adapter ports or swap entire cassettes during technology migrations (e.g., 10Gb to 25Gb) without disturbing adjacent panels or rear cabling. Cable management ducts route trunk cables horizontally through the FMT duct fingers, maintaining the 30mm minimum bend radius for OM3 fiber and preventing kinks that cause insertion loss or return loss degradation. The panel's 2U height balances port density with per-port accessibility; taller 4U panels increase fiber count but shrink the working envelope for technician hands and patch cord strain relief boots.

Compliance with TIA/EIA-568-C.3 ensures the panel's mechanical dimensions, grounding provisions, and labeling zones align with structured cabling best practices for optical fiber installations. RoHS conformance satisfies procurement requirements for public sector, healthcare, and EU-market projects where hazardous substance restrictions apply. The CFAPPBL2 ships individually packaged with installation documentation; carton quantities of 10 support multi-rack builds or warehouse stocking for regional integrators managing recurring fiber backbone projects across office buildings, hospitals, or distribution centers.
