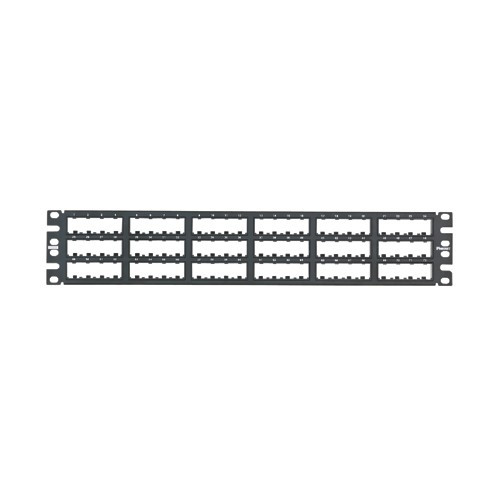

Panduit CPP72FMWBLY Mini-Com Flush-Mount Patch Panel
The Panduit CPP72FMWBLY is a 2U high-density modular patch panel engineered for structured cabling deployments where space efficiency and scalability matter. Accepting up to 72 Mini-Com modules in a flush-mount form factor, it delivers 36 ports per rack unit—ideal for datacenter consolidation projects, campus IDF/MDF builds, and enterprise network refreshes. Cold-rolled steel construction and flush alignment minimize protrusion into hot aisles while accommodating both 19" (483 mm) EIA-standard and 23" (584 mm) wide-body racks. Whether you're terminating Cat6A for 10GBASE-T backbone links or organizing copper crossconnects in a surveillance NOC, this panel provides the port density and modularity to scale with network growth without consuming additional rack height.
Key Features
- 72-port capacity in 2U form factor (36 ports/U) for maximum density in space-constrained racks
- Modular Mini-Com architecture—populate only the ports you need today, add more as the network expands
- Flush-mount design sits level with rack rails, reducing cabinet depth requirements and improving airflow in enclosed environments
- Cold-rolled steel (CRS) chassis for rigid mounting and long-term dimensional stability under repeated cable stress
- Dual rack compatibility: 19" (482.6 mm) EIA-310 and 23" (584 mm) wide-body frames
- Front-facing adhesive label fields for port identification—no need for external label printers or wrap-around tags
- RoHS compliant for projects with environmental procurement mandates
- Black finish integrates with standard IT and AV rack aesthetics
Panduit's Mini-Com modular platform gives network installers tactical flexibility: you're not locked into a fixed-port RJ45 panel. Instead, each of the 72 positions accepts a snap-in Mini-Com module—Cat5e, Cat6, Cat6A, fiber, or even coax—so a single panel can handle mixed-media terminations. For a surveillance integrator running PoE camera drops alongside fiber uplinks, this means one unified patch field instead of separate panels eating up rack space. The flush-mount design is critical in deeper cabinets: traditional panels with rear cable management arms can add 4–6 inches of protrusion, stealing clearance from servers or power distribution. The CPP72FMWBLY mounts flush to the rack face, keeping the rear zone clear for vertical cable managers and tight door clearances. The 2U height (88.13 mm) fits standard rack increments without wasted half-U gaps, and the 3.47" overall height leaves room for horizontal wire management between adjacent panels.
In practice, 72-port density suits mid-to-large access-layer builds: a 42U rack can house six of these panels (432 ports) while reserving space for core switches, UPS, and KVM gear. Campus network retrofits benefit from the modular approach—start with 48 ports populated, leave 24 positions open for future wings or IoT expansions. Datacenter colo installations appreciate the dual-width mounting: 23" racks are common in telco-grade enclosures, and the CPP72FMWBLY spans the wider hole pattern without adapters. Cold-rolled steel construction withstands the mechanical stress of 72 terminated cables—cheaper stamped-steel panels can bow under load, misaligning ports and stressing terminations. The front label area accepts P1-style adhesive labels (Panduit P1 label cassettes or generic die-cut sheets), so you can print room numbers, VLAN IDs, or asset tags and apply them directly to the panel face without covering ports. For integrators managing large camera networks, this panel pairs naturally with PoE midspan injectors or switch stacks: run home-run Cat6A from each camera to a Mini-Com jack, patch the jack to the switch, and the entire physical layer remains modular—swap a jack if a termination fails, no need to re-pull cable.
Unlike fixed-port panels that force you to choose copper or fiber at purchase, the CPP72FMWBLY's modular architecture future-proofs the physical layer: add LC fiber adapters for SFP uplinks, install coax F-connectors for legacy CCTV bridges, or mix shielded and unshielded jacks in the same panel. The flush-mount design also simplifies cable management in zero-U vertical manager setups—cables dress straight back into the manager without fighting a protruding panel body. Cold-rolled steel provides the rigidity needed to keep the panel square under side-load stress from bundle weight, and the black powder-coat finish resists scratching during installation. For projects requiring environmental compliance documentation, the RoHS-conformant construction satisfies LEED and federal procurement requirements. Panduit ships this panel in cartons of 10, making it a stocking candidate for integrators running multiple sites; the single-unit package quantity allows just-in-time ordering for one-off expansions without overbuying.
