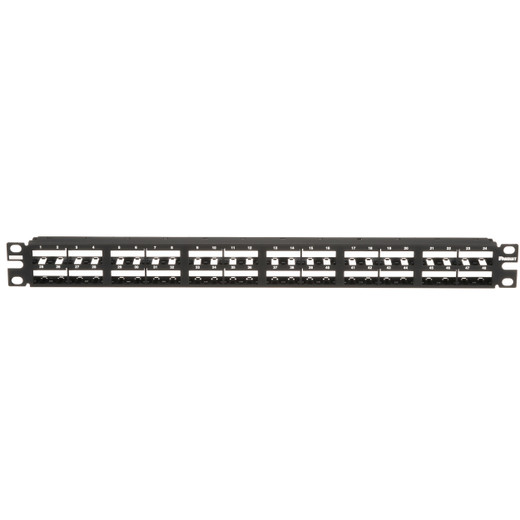

Panduit CPP48HDEWBL Mini-Com 48-Port Modular Patch Panel

The Panduit CPP48HDEWBL delivers maximum port density for structured cabling deployments where rack space drives project economics. This 1RU modular patch panel accepts up to 48 Mini-Com modules in a single rack unit, doubling the port count of standard 24-port designs without consuming additional vertical rack space. Built on Panduit's proven Mini-Com architecture, the panel gives installers complete flexibility to mix copper, fiber, A/V, and specialty modules in any configuration the project requires—from pure Cat6A data center builds to hybrid enterprise networks combining voice, data, and IP security trunk lines.

Key Features

• 48-port capacity in 1RU form factor maximizes rack density for data centers, MDFs, and high-port-count IDFs
• Universal Mini-Com module compatibility supports any combination of copper (Cat5e/6/6A), fiber (LC/SC/ST), A/V, and specialty connectors
• Cold-rolled steel chassis construction provides structural rigidity for heavily loaded installations and repeated plug/unplug cycles
• Fits both 19-inch and 23-inch equipment racks and network cabinets without adapters or modification
• Flush-mount design integrates cleanly with vertical and horizontal cable managers for professional finish
• Self-adhesive labeling surface accepts standard patch panel labels for circuit identification and asset management
• RoHS compliant construction meets environmental regulations for commercial and government installations

The CPP48HDEWBL's modular architecture solves the configuration lock-in problem that plagues fixed-port panels. Instead of committing to 48 RJ45 jacks at installation time, you populate only the modules each project requires—and change them later as network requirements evolve. A campus build might deploy 40 Cat6A copper modules plus 8 LC duplex fiber modules for building-to-building backbone links. A data center row aggregation point might run 32 Cat6A ports for server connections plus 16 fiber modules for switch uplinks. An enterprise telecom room might mix 24 voice-grade Cat5e modules, 20 Cat6A data modules, and 4 coax modules for building entry CATV distribution. The panel adapts to the job, not the other way around, and field reconfiguration takes minutes—pull the old module, snap in the new one, done.

The 1RU high-density form factor directly addresses rack space constraints in colocation facilities, cloud on-ramps, and dense network closets where every rack unit carries a cost. Compared to traditional 24-port-per-RU designs, the CPP48HDEWBL cuts vertical rack consumption in half for the same port count—a 96-port installation drops from 4RU to 2RU, freeing two rack units for active equipment or future expansion. The space savings compound in multi-rack deployments: a 10-cabinet data center standardized on 48-port panels reclaims 20+ rack units compared to 24-port equivalents, enough space for multiple additional switches or servers without expanding the physical footprint.

Panduit engineered the chassis from cold-rolled steel specifically to handle the mechanical load and vibration inherent in high-density patching. A fully populated 48-port panel under full cross-connect load sees substantial torque from dozens of patch cables pulling in different directions—cheaper stamped-steel or thin-gauge panels flex, deforming the module alignment and stressing terminations. The CPP48HDEWBL's heavy-gauge CRS construction maintains dimensional stability even when loaded with 48 Cat6A cables, each exerting bend-radius pull force. The rigidity matters most during adds/moves/changes: technicians yanking patch cables at awkward angles in cramped rack environments need a panel that won't twist or bow, keeping modules properly seated and maintaining contact integrity across hundreds of plug/unplug cycles over the panel's service life.

The panel mounts in standard 19-inch EIA racks and wider 23-inch telecom frames using included mounting hardware, eliminating the adapter brackets and spacer kits that other vendors charge for separately. Flush-mount design puts the front face of the modules in plane with the rack rails, integrating cleanly with vertical cable managers mounted on either side or horizontal managers mounted above and below. The black finish matches standard network rack aesthetics and hides the dust and handling marks that show on light-colored panels in high-traffic network rooms. For clean installations, the panel's top surface accepts industry-standard adhesive port labels—you can apply pre-printed label strips from Brother, Dymo, or Brady labeling systems, or use Panduit's own LS8E label cartridges for integrated label generation during termination.

Deployment typically pairs the CPP48HDEWBL with Panduit Mini-Com modules appropriate to the link specification. For 10GBASE-T data center server connections, use CJ688TGBL Cat6A modules terminated to solid copper backbone cabling with Panduit's PS6 tool. For fiber uplinks, install CFFBL-X LC duplex modules (single-mode or multimode depending on link distance) and terminate to duplex fiber backbone with Panduit's OptiCam system. For legacy voice circuits, use CJ5E88TGBL Cat5e modules. For IP camera PoE trunk lines in security control rooms, use CJ6X88TGBL Cat6 modules rated for the sustained PoE heat load. The panel itself is media-agnostic—the modules define the performance, and you can change them without tools if technology requirements shift mid-project.

The 1.72-inch (43.68mm) panel height leaves adequate clearance for horizontal cable managers in tight rack layouts. Standard practice places a 1RU horizontal manager immediately above and below each patch panel to dress and support the patch cable bundle, preventing cable weight from stressing the module connectors. In a typical stack, you'd install: 1RU horizontal manager, 1RU CPP48HDEWBL panel, 1RU horizontal manager, 1RU CPP48HDEWBL panel, repeating up the rack. This 2RU-per-panel pattern (panel + manager) yields 24 usable ports per rack unit when averaged across the assembly—still far denser than 24-port panels that consume the same 2RU total space but deliver only half the ports.

For jurisdictions and projects requiring environmental compliance documentation, the CPP48HDEWBL meets RoHS (Restriction of Hazardous Substances) standards, certifying that the panel's materials and finishes are free of lead, mercury, cadmium, hexavalent chromium, and brominated flame retardants above the regulated thresholds. Federal projects, state government contracts, and many large enterprise procurements now mandate RoHS compliance in structured cabling bills of material, and the CPP48HDEWBL's compliance is documented in Panduit's product environmental profiles available on their technical documentation portal. The panel ships in cartons of 10 units, with each panel individually packaged to prevent finish damage in transit—ideal for large multi-building campus rollouts or data center builds where you're deploying dozens of panels across multiple racks and rows.

This patch panel is the field-proven choice for integrators managing high-port-count structured cabling projects where rack space is constrained, technology requirements may evolve, and the installation needs to maintain signal integrity and mechanical reliability over a 10+ year service life. The modular design eliminates technology lock-in, the high-density format maximizes usable rack space, and the heavy-gauge steel construction ensures the panel will survive the mechanical abuse of daily operations in demanding commercial and data center environments.
