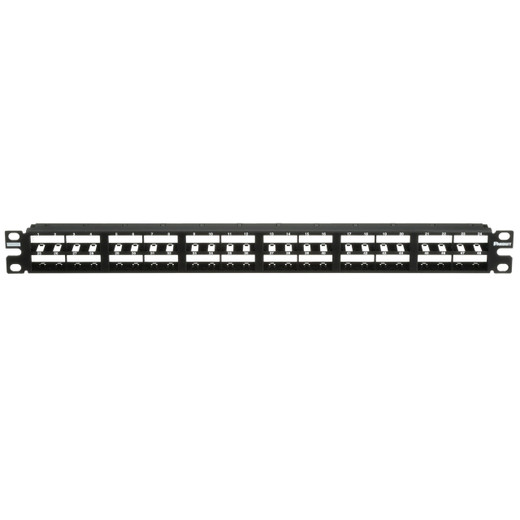

Panduit CPP48HDWBLY 48-Port 1 RU Modular Patch Panel

Panduit CPP48HDWBLY 48-Port Mini-Com Patch Panel The Panduit CPP48HDWBLY delivers maximum port density in a single rack unit for unshielded structured…

$215.08 $148.99 SAVE $66
Ships same business day
In stock

Quantity:

Adding to cart… The item has been added
Compatibility guidance available for your deployment
Senior specialists for pre and post-sales support
Authorized sourcing and documentation support
Shipping and lead-time confirmation before install

Laura Bennett, IPSD Senior Specialist

Talk to Laura

200+ hrs training • U.S - based

Senior Specialist • 877-277-7147

Panduit CPP48HDWBLY 48-Port 1 RU Modular Patch Panel

$215.08
$148.99

Overview

SKU: CPP48HDWBLY
UPC: 074983036592
Condition: New

No Bots, Just Experts

Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.

Description

Panduit CPP48HDWBLY 48-Port Mini-Com Patch Panel

The Panduit CPP48HDWBLY delivers maximum port density in a single rack unit for unshielded structured cabling deployments. This modular patch panel accepts 48 Mini-Com modules in 1 RU, letting datacenter and enterprise network installers consolidate terminations without sacrificing accessibility. The flush-mount design works in both 19-inch and 23-inch racks, and the cold-rolled steel chassis provides the rigidity needed to support repeated plug cycles in high-traffic wiring closets. When you're spec'ing campus backbone terminations or building out IDF consolidation points where vertical rack space is constrained, this panel puts four dozen connection points within a 1.72-inch footprint.

Key Features

  • 48-port capacity in 1 RU eliminates wasted rack space in congested wiring closets and datacenter cross-connects
  • Modular Mini-Com architecture accepts any combination of Cat5e, Cat6, Cat6A, or fiber modules for mixed-media deployments
  • Cold-rolled steel construction resists flexing during cable dressing and maintains port alignment under load
  • Dual rack compatibility (19" and 23" mounting) simplifies integration into Telco and standard IT racks without adapters
  • Flush-mount form factor keeps the panel face recessed for cable-arm clearance and cabinet door closure
  • Black powder-coat finish matches standard datacenter aesthetics and hides rack fingerprints
  • RoHS-compliant materials meet procurement requirements for green building certifications and federal installations

The Mini-Com module system gives you configuration flexibility that pre-loaded keystoned panels can't match. Each of the 48 positions accepts Panduit's snap-in Mini-Com jacks, so you can populate the panel with the exact mix of copper and fiber connectors your horizontal cabling plant requires—then swap individual modules in the field when a zone changes from workstation drops to IP camera uplinks or wireless AP feeds. The numbered port labels align with TIA-606-B administration standards, and the 1 RU height leaves room in a 42U cabinet for the active switches, cable managers, and power distribution you need in the same rack. When you're terminating a full panel, the flush-mount design keeps plug boots and cable jackets inside the rack envelope so hinged doors close without interference.

Cold-rolled steel construction matters in patch-panel applications because the chassis has to stay rigid while you're seating modules, dressing cables, and handling dozens of plug insertion cycles per port over the panel's service life. Thin stamped-steel panels flex when you push a Cat6A plug home, which can unseat adjacent jacks or crack solder joints on the module PCBs. The CPP48HDWBLY's formed-steel frame distributes load across the rack-mount ears and maintains a flat mounting plane even when all 48 ports are populated and under cable tension. The panel's 43.68 mm overall height fits standard 1 RU spacing with clearance for top and bottom cable managers, and the 19-inch width spans the full rack opening so there's no need for filler panels or custom brackets.

This panel is a fit for enterprise LAN installations where you're consolidating horizontal runs from open-office floors, healthcare nurse stations, or retail back-of-house areas into a central IDF. It's also a solid choice for IP camera networks where you're terminating Cat6 drops from a dozen access-control readers, two dozen ceiling cameras, and a handful of intercoms into a single patch field that feeds a couple of PoE switches. The modular design means you can start with copper jacks and add fiber modules later when you uplink to a building's MPOE, or you can reserve ports for future expansion without paying for unused keystones. The RoHS compliance clears procurement for government and healthcare projects, and the 10-pack carton quantity makes sense for campus rollouts where you're equipping multiple wiring closets with matching infrastructure.

Specifications
Product Type: Flush-Mount Patch Panel
Brand: Panduit
Manufacturer Part Number: CPP48HDWBLY
Sub-Brand: Pan-Net
Port Count: 48
Rack Units: 1 RU
Module Type: Mini-Com Modular
Application: Unshielded Twisted Pair
Material: Cold-Rolled Steel (CRS)
Color: Black
Overall Height: 1.72 in (43.68 mm)
Overall Width: 19 in (482.6 mm)
Rack Compatibility: 19-inch and 23-inch
Standards Compliance: RoHS-Compliant
Package Quantity: 1
Carton Quantity: 10
UPC: 074983036590
