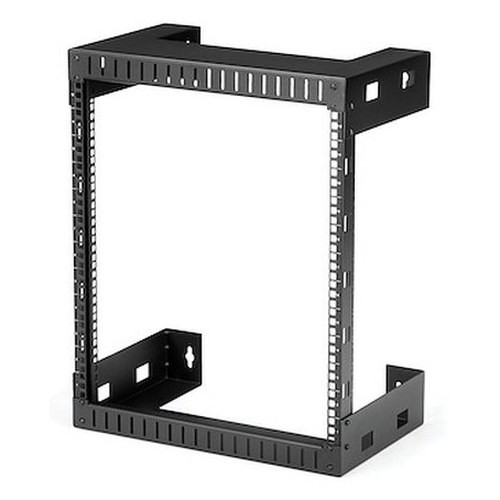

StarTech RK12WALLO 12U Open Frame Wall Mount Rack

Overview

The StarTech RK12WALLO is a 12U, 2-post open frame wall mount rack built for small to mid-size network closets, IDF rooms, and structured cabling installations where floor space is limited but you still need to house patch panels, unmanaged switches, and ancillary data equipment in a standards-compliant enclosure. At 25.2 in tall, 19.8 in wide, and 12.0 in deep, it fits in spaces too tight for a full floor cabinet while holding up to 198.4 lb — enough headroom for a fully populated 12U bay of real switching and patching hardware. If you've been cramming gear onto a shelf or a makeshift plywood board because a full rack wouldn't fit, this is the purpose-built fix.

The rack conforms to EIA/ECA-310-E standards, meaning your 19-inch rackmount equipment — patch panels, network switches, small NVRs, and similar gear — will align and mount correctly without shimming or adaptation. Hardware ships in the box: M6 cage nuts, M6 screws, and washers are all included so you're not hunting for hardware on installation day.

Key Features

• 12U Capacity: Twelve rack units gives you room for a 24-port patch panel, a managed PoE switch, a small network video recorder, and a cable management panel in a single wall-hung footprint — meaningful when your IDF closet has no floor space to spare.
• 198.4 lb Weight Capacity: At 90 kg rated load, this rack handles dense switch and patching configurations without flex or wall-anchor anxiety. That figure matters when you're mounting a 1U PoE switch (often 8–12 lb) plus a fully loaded 24-port patch panel and a small NVR — the aggregate weight adds up faster than most people expect.
• 11.9 in Mounting Depth: The 30.3 cm usable mounting depth accommodates standard 1U patch panels (typically 1–2 in deep) and most 1U access-layer switches (Dell, Cisco SG series, Ubiquiti) comfortably. It is not intended for full-depth servers or deep chassis switches — check your deepest piece of equipment against this figure before ordering.
• Open Frame 2-Post Design: Open frame means unrestricted front and rear cable access — critical when you're running structured cabling to a patch panel and need clean bend-radius management without fighting a closed door. The 2-post format keeps weight low and simplifies installation versus a 4-post wall unit.
• Steel Construction: Cold-rolled steel frame provides the rigidity needed for a loaded wall-mount application. At 19.1 lb unloaded, it's heavy enough to feel solid but light enough for a single installer to handle during rough-in.
• EIA/ECA-310-E Compliant: Industry-standard rail spacing ensures compatibility with virtually all 19-inch rackmount equipment from any vendor. No proprietary mounting patterns, no adapter plates needed for standard gear.
• M6 Hardware Included: M6 cage nuts, M6 screws, and washers ship with the unit. This eliminates the common annoyance of arriving on a job site with a rack and no mounting hardware — a small detail that saves a trip to the supply house.
• 5-Year Manufacturer Warranty: A five-year coverage period on a passive steel enclosure is straightforward and appropriate for infrastructure-class gear — longer than most competing wall racks in this price tier.

Integration and Compatibility

The RK12WALLO is compatible with all standard 19-inch EIA/ECA-310-E rackmount equipment. In a IP camera and surveillance infrastructure context, it suits installations where a small NVR, a PoE switch, and patch panel all need to live in the same wall-mounted enclosure — typical in retail backrooms, school hallways, or small office IDF spaces. When planning your rack layout, account for the 11.9 in mounting depth: most 1U managed switches designed for wiring closets fall in the 10–17 in depth range, so verify your specific switch model's depth against this spec. Full-depth 1U servers (typically 20–28 in) will not fit. For PoE switch installations, verify the combined weight of all installed equipment stays within the 198.4 lb rated capacity and that your wall-mounting surface (stud-backed drywall, concrete block, or steel framing) is rated for the aggregate load including the rack itself.

What's in the Box

• 1x RK12WALLO 12U open frame wall mount rack
• M6 cage nuts
• M6 screws
• Washers

Frequently Asked Questions

Q: What is the maximum weight capacity of the RK12WALLO?

A: The RK12WALLO is rated for 198.4 lb (90 kg). This is the total load across all installed equipment — factor in the weight of every switch, patch panel, NVR, and cable management unit when planning your rack population.

Q: Will full-depth 1U servers fit in the RK12WALLO?

A: No. The usable mounting depth is 11.9 in (30.3 cm), which accommodates most access-layer switches and patch panels but not full-depth 1U or 2U servers, which typically require 20–28 inches of depth. Verify your deepest equipment against this figure before purchasing.

Q: Does the RK12WALLO ship with mounting hardware for the equipment?

A: Yes. The rack includes M6 cage nuts, M6 screws, and washers. Wall anchors and fasteners for attaching the rack to the wall surface are not specified in the included hardware — confirm your wall anchor requirements separately based on your wall type and total load.

Q: Is the RK12WALLO compatible with standard 19-inch rackmount equipment?

A: Yes. It conforms to EIA/ECA-310-E industry standards, meaning any equipment built to the 19-inch rackmount standard will mount correctly without adapter plates or shimming.

Q: What is the warranty on the RK12WALLO?

A: StarTech covers the RK12WALLO with a 5-year manufacturer warranty.

Q: How many rack units does the RK12WALLO provide?

A: 12U. That is enough for a typical small IDF layout: a 24-port patch panel (1U), a managed PoE switch (1U), a small NVR (1–2U), a cable management panel (1U), and room for additional equipment or future expansion.

Marty Allison

The spec I focus on immediately with the RK12WALLO is the 11.9-inch mounting depth — that number either qualifies or disqualifies this rack for a given job before anything else. In a typical small IDF or surveillance closet build, that depth clears virtually every 1U patch panel and access-layer PoE switch on the market, but it rules out anything with a deep chassis. If you know your switch model, check its depth spec first.

Technical Highlights:

• 198.4 lb Load Rating: Enough for a fully populated 12U bay of switching and patching hardware — a loaded 24-port PoE switch, patch panel, and small NVR combined rarely approach 60–70 lb, so the 90 kg rating gives real headroom rather than being a borderline figure.
• EIA/ECA-310-E Compliance: Standard rail spacing means no guesswork on equipment fit — every vendor's 19-inch gear mounts without adapters, which matters when you're mixing patch panels from one vendor with switches from another.
• Included M6 Hardware: Cage nuts, screws, and washers ship in the box — this is a consistent pain point on competing racks that ship bare and leave you sourcing hardware on-site.

Deployment Considerations:

• Wall anchor selection is entirely on the installer — the rack itself weighs 19.1 lb, and a fully loaded bay could approach 100+ lb against your wall surface. Stud-backed or masonry anchoring is the right call; drywall anchors alone are not appropriate for this load class.
• The open frame design provides excellent cable access but offers no physical security or dust protection — if the closet is shared with non-IT staff or is in a dusty environment, a closed-door wall cabinet is a better fit for this application.

The RK12WALLO is well-suited for small retail or school IDF builds where you need a standards-compliant, wall-hung home for a PoE switch, patch panel, and small NVR, and you want installation hardware in the box on day one rather than sourced separately.
