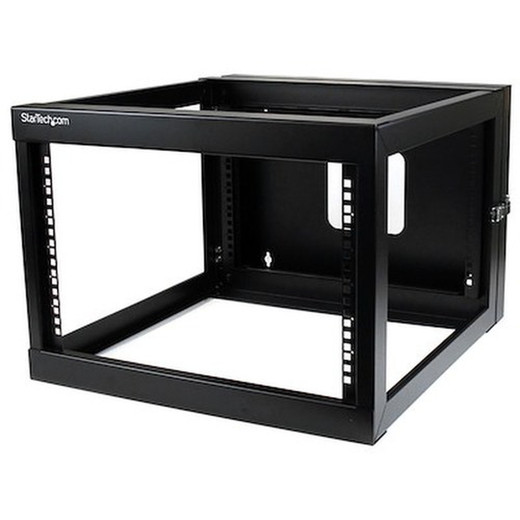

StarTech RK619WALLOH 6U Open Frame Wall Mount Server Rack

Overview

The StarTech RK619WALLOH is a 6U open-frame, 4-post wall mount rack built for small server closets, network equipment rooms, and edge deployments where floor space is at a premium but you still need a proper EIA-standard equipment enclosure. At 19.8 inches of usable mounting depth and a 109.7 lb rated load capacity, it handles real networking and security hardware — switches, patch panels, NVRs, and small UPS units — without requiring a dedicated rack room. If you're mounting a network video recorder alongside a PoE switch and a patch panel in a back office or server closet, this is the kind of infrastructure piece that keeps the install tidy and serviceable for the long haul.

The RK619WALLOH ships fully assembled, which matters on a commercial job site — no hardware bags to sort, no frame to bolt together under fluorescent lighting with a deadline. Unfold it, mount it to the wall studs, and start racking gear. StarTech backs it with a lifetime warranty, which is the right call for passive structural hardware that doesn't have a service interval.

Key Features

• 6U capacity: Six rack units gives you enough space for a PoE switch, NVR or small server, patch panel, and a 1U blank or brush panel — a complete edge node without over-buying a 12U or 18U enclosure that wastes wall real estate in smaller installs.
• 19.8-inch maximum mounting depth: Accommodates most 1U and 2U switches and appliances without depth conflicts. Full-depth servers may be a stretch at under 20 inches, so verify your deepest unit before committing to this rack.
• 109.7 lb weight capacity: Enough headroom for a loaded NVR, a managed PoE switch, and cabling without approaching the structural limit — critical if you're mounting this to drywall-backed studs rather than a solid concrete wall.
• 4-post open frame construction: Open frame means full airflow around equipment, easy rear cable access, and no fighting with a closed cabinet door when you need to reach a port at 2 AM. The tradeoff is zero dust or physical security protection — factor that into your site assessment.
• EIA/ECA-310-E compliant: Standard square mounting holes accept any EIA-standard cage nuts and rail equipment, so you're not locked into proprietary hardware. Every major vendor's rackmount equipment mounts here without adapters.
• Ships fully assembled: No assembly time on-site. For integrators running tight installation schedules across multiple locations, this alone reduces deployment time meaningfully compared to flat-pack alternatives.
• Steel construction, black finish: All-steel frame handles the structural demands of rackmounted equipment. The black powder coat blends into most IDF closet and back-office environments without looking like an afterthought.
• Compact footprint — 23.7 x 21.9 x 16.1 inches: The overall envelope fits comfortably in narrow server closets and IT rooms where a full-size rack would block access to adjacent equipment or doors.
• 40.2 lb unit weight: Heavy enough to feel solid, light enough for a two-person install team to handle wall mounting without mechanical assistance — plan for two people and the right anchor hardware for your wall type.
• Lifetime warranty: StarTech covers this rack for life, which matches the expected service life of passive rack infrastructure. No depreciation schedule to worry about when specifying it for a 10-year facility contract.

Integration and Compatibility

The RK619WALLOH follows EIA/ECA-310-E standards, which means it accepts standard 19-inch rackmount equipment from any manufacturer — PoE network switches, patch panels, 1U appliances, UPS units, and rackmount NVRs all mount without modification. Square mounting holes require standard cage nuts (verify whether cage nuts are included or need to be ordered separately based on your equipment's requirements). The open frame design integrates naturally with horizontal and vertical cable management accessories from any vendor. If you're building out a surveillance NVR closet or a small IDF, pair this with a rack-mount UPS and a managed PoE switch to keep the full stack organized and accessible. For installs needing equipment protection or a cleaner aesthetic in a public-facing space, consider a closed-door wall mount cabinet instead — open frame is the right call for locked, access-controlled rooms only.

Frequently Asked Questions

Q: Does the RK619WALLOH ship pre-assembled or does it require on-site assembly?

A: It ships fully assembled. No on-site assembly is required — mount it to the wall and start installing equipment.

Q: What is the maximum equipment weight the RK619WALLOH supports?

A: The rated load capacity is 109.7 lb. This covers most combinations of a managed switch, 1U NVR or appliance, and a patch panel without approaching the structural limit.

Q: What mounting hole type does the RK619WALLOH use?

A: Square mounting holes, compliant with EIA/ECA-310-E standards. Standard cage nuts are used to mount equipment — the same hardware used across the industry for 19-inch rackmount gear.

Q: What is the maximum rack depth the RK619WALLOH supports?

A: Maximum mounting depth is 19.8 inches. This accommodates most 1U and 2U networking appliances and NVRs. Verify your deepest equipment's depth before specifying — full-depth 1U servers near or above 20 inches may not fit.

Q: What warranty does the RK619WALLOH carry?

A: StarTech covers the RK619WALLOH with a lifetime warranty.

Q: Is the RK619WALLOH suitable for open office or public-facing installations?

A: The open frame design provides no physical security or dust protection. It is best suited for locked server closets, IDF rooms, or secure back-office environments where equipment access is controlled.

James Everett

The RK619WALLOH is one of those infrastructure pieces that doesn't get glamorous attention but determines whether a small install stays neat and serviceable five years down the road. I spec this one specifically when the site has a dedicated locked room and the integrator needs a fast turn — fully assembled, EIA-compliant, 109.7 lb capacity, and it's on the wall in under an hour with the right anchor hardware.

Technical Highlights:

• 19.8-inch mounting depth: Fits the overwhelming majority of 1U managed switches and NVRs from major vendors — verify against your deepest unit before ordering, since anything pushing 20 inches will be marginal.
• 109.7 lb load rating: Comfortable headroom for a fully loaded 6U stack of networking and surveillance hardware — you won't be close to the limit with a typical NVR, switch, and patch panel combination.
• Lifetime warranty: Passive structural hardware should carry a lifetime warranty, and this one does. It's a meaningful spec when you're writing facility contracts with 10-year infrastructure commitments.

Deployment Considerations:

• Open frame means zero dust and physical security protection — reserve this for locked server closets and IDF rooms. A back office with public or uncontrolled access calls for a closed-door cabinet instead.
• At 40.2 lb unloaded, plan for a two-person crew on the wall mount. Stud anchor capacity needs to exceed the combined rack and equipment weight — confirm your wall construction and anchor ratings before the install day.

For a small-to-mid surveillance or network edge node in a secured IDF room — say, a retail back office running a rackmount NVR and a managed PoE switch — the RK619WALLOH is the right-sized, right-priced infrastructure piece that holds up without overbuilding the enclosure.
