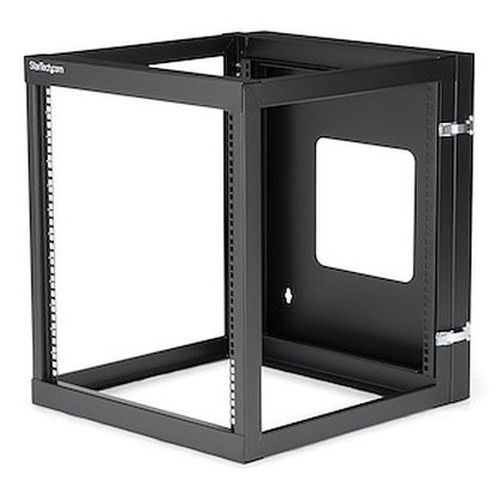

StarTech RK1219WALLOH 12U Open Frame Wall Mount Server Rack

Overview

The StarTech RK1219WALLOH is a 12U, 4-post open frame wall mount rack built for network closets, IDF rooms, surveillance head-end installations, and any space-constrained environment where a full floor-standing enclosure is impractical. With a 19.8-inch mounting depth and a 139.7 lb weight capacity, it handles real-world network switch, NVR, and patch panel loads without the floor footprint of a traditional cabinet. It ships fully assembled — no hardware puzzle on arrival — and conforms to EIA/ECA-310-E standards, so every 19-inch rack-mount device you already own drops straight in.

If you're deploying surveillance head-end equipment, dedicated network video recorders, or the PoE switching infrastructure that feeds an IP camera system, the RK1219WALLOH keeps that gear organized, accessible, and off the floor in rooms where space is the limiting factor.

Key Features

• 12U Rack Height: Twelve rack units gives you enough room for a mid-density NVR, a managed PoE switch, a patch panel, and a power strip in a single wall-mounted footprint — without committing to a 24U or 42U floor cabinet that dominates a small IDF closet.
• 19.8-Inch Mounting Depth: At 19.8 inches (50.2 cm), this rack accommodates the majority of 1U and 2U network switches, NVRs, and server appliances currently on the market. If you're running deep 2-post-only gear or full-depth 1U servers pushing 28–30 inches, measure first — this rack won't cover that.
• 139.7 lb Weight Capacity: A 63.4 kg load rating means you can populate all 12U with real hardware — dense PoE switches, multi-bay NVRs, UPS units — without worrying about the rack losing structural integrity. Verify your wall studs or concrete anchors are rated accordingly before mounting.
• 4-Post Open Frame Construction: Four-post design distributes weight to both front and rear rails, which matters when you're racking heavier chassis like UPS units or multi-drive NVRs. Open frame means unrestricted airflow — no side panels trapping heat — and full front/rear/side access for cable runs and maintenance without removing doors.
• Square Hole Mounting: EIA/ECA-310-E square hole rails are the current commercial standard. Cage nuts and mounting screws (the universal fasteners for square hole racks) work with essentially every rack-mount device on the market, and swapping equipment in and out takes seconds compared to threaded-hole systems.
• Ships Fully Assembled: The rack arrives ready to wall-mount — no assembly of rails, crossbars, or posts required on-site. For installers billing time on a multi-site rollout, eliminating even 30–45 minutes of rack assembly per location adds up fast.
• Steel Construction, Black Finish: Commercial-grade steel frame holds the rated 139.7 lb load without flex. The black powder coat finish is standard for rack infrastructure in server rooms and network closets, and it doesn't show fingerprints or cable dust the way lighter finishes do.
• Lifetime Warranty: StarTech backs the RK1219WALLOH with a lifetime warranty — relevant for infrastructure that tends to outlive the equipment it holds. Rack frames don't wear out under normal use; a lifetime warranty means you won't be repricing this as a replacement line item in a 5-year refresh cycle.
• Overall Dimensions — 23.7 x 21.9 x 25.5 inches: Footprint of roughly 24 by 22 inches on the wall. Measure your available wall space and factor in cable management clearance on all sides before ordering — particularly in mechanical rooms where conduit runs and junction boxes compete for the same wall real estate.

Integration and Compatibility

The RK1219WALLOH conforms to EIA/ECA-310-E, the industry standard governing 19-inch rack dimensions. Any device marked as rack-mountable in a standard 19-inch rack will fit the horizontal opening. The 19.8-inch usable depth sets the practical limit on which chassis physically fit — most 1U managed switches, 1U–4U NVRs, 1U patch panels, and 1U power distribution units fall well within that range. Pair this rack with a dedicated PoE switch and a rack-mount UPS to build a complete, wall-mounted surveillance infrastructure node.

For larger deployments requiring more than 12U, or equipment runs exceeding 19.8 inches in depth, consider a floor-standing open frame rack or a deeper wall-mount model in the server rack lineup. If you're sizing rack space for a new camera system, the network rack buying guide covers U-count planning and depth considerations in detail.

Frequently Asked Questions

Q: What is the maximum weight the RK1219WALLOH can hold?

A: The RK1219WALLOH is rated for 139.7 lb (63.4 kg). This covers most populated 12U configurations including PoE switches, NVRs, patch panels, and a 1U UPS, but verify that your wall mount anchors and wall structure are independently rated to support the combined weight of the rack plus all installed equipment.

Q: Does the RK1219WALLOH require assembly before installation?

A: No. It ships fully assembled. You receive a ready-to-mount rack — no rail assembly, post alignment, or crossbar installation required on-site.

Q: What mounting hole type does the RK1219WALLOH use?

A: Square holes, conforming to EIA/ECA-310-E. Standard cage nuts and M6 rack screws (the universal hardware for square hole racks) are used to secure equipment — compatible with virtually all commercial rack-mount hardware.

Q: Will full-depth 1U servers fit in the RK1219WALLOH?

A: The usable mounting depth is 19.8 inches (50.2 cm). Most 1U managed switches and NVR appliances fit comfortably. True full-depth 1U servers (which often run 26–30 inches) will not fit. Measure your deepest chassis before ordering.

Q: What is the warranty on the RK1219WALLOH?

A: StarTech covers the RK1219WALLOH with a lifetime warranty.

Q: Is the RK1219WALLOH compatible with standard 19-inch rack-mount equipment?

A: Yes. The rack conforms to EIA/ECA-310-E, the standard governing 19-inch rack dimensions. Any equipment marketed as standard 19-inch rack-mountable will fit the horizontal opening, subject to the 19.8-inch depth limit.

Eden Phillips

The RK1219WALLOH comes up regularly in surveillance infrastructure conversations specifically because of that 19.8-inch mounting depth — it's the threshold where the rack either works or doesn't for a given NVR or switch chassis, and StarTech lands right where most 1U and 2U appliances top out. For a 12U wall mount, the 139.7 lb load rating is also more generous than several competing products in this form factor, which matters when you start stacking a UPS alongside your switching and recording gear.

Technical Highlights:

• 19.8-Inch Mounting Depth: Covers the vast majority of commercial NVRs and managed PoE switches — most ship between 12 and 18 inches deep, leaving usable clearance for rear cable management at the back of the rail.
• 139.7 lb Load Rating: At 63.4 kg rated capacity, you can fully populate all 12U with real-world equipment without hitting a structural limit. A typical 12U build — 2U NVR, 1U 24-port PoE switch, 1U patch panel, 1U PDU — runs well under 80 lb in most configurations.
• Ships Fully Assembled: For multi-site security deployments where an integrator is commissioning 5–10 IDF closets in a single building, eliminating rack assembly at each location is a legitimate time saving — not a marketing line.

Deployment Considerations:

• The rack weighs 50.1 lb empty. Factor that into the wall anchor load calculation — you're looking at up to roughly 190 lb total (rack plus full load) that the wall mount hardware must support. Stud-to-stud mounting or properly rated toggle anchors in concrete are non-negotiable at this weight class.
• Open frame means no physical security — if this rack will be installed in a space with general employee or public access rather than a locked IDF room, consider whether the exposed equipment presents an acceptable risk for your environment.

The RK1219WALLOH is the right call for a dedicated surveillance head-end in a locked network closet or IDF room: 12U handles a typical single-floor NVR-plus-switching stack, the depth accommodates standard appliance chassis, and the lifetime warranty means this particular line item doesn't resurface in your next hardware refresh budget.
