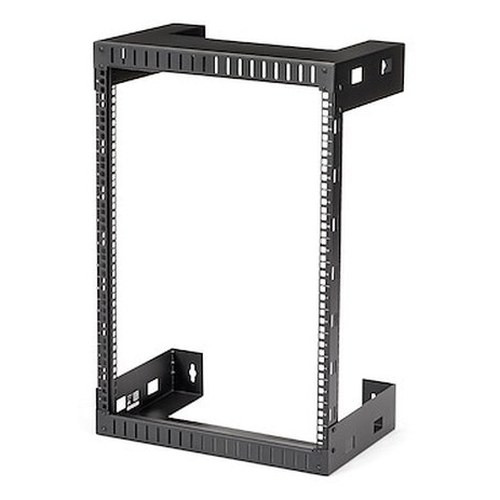

StarTech RK15WALLO 15U Open Frame Wall Mount 2-Post Rack

Overview

The StarTech RK15WALLO is a 15U open-frame, 2-post wall mount rack built for consolidating patch panels, network switches, and data equipment in space-constrained environments — IDF closets, server alcoves, retail back-of-house, and small branch offices where a full floor-standing enclosure is overkill. At 30.5 inches tall and 19.8 inches wide, it fits the standard 19-inch EIA/ECA-310-E equipment footprint while mounting flat against the wall, reclaiming floor space entirely. If you're planning a wall-mounted network distribution point and need a product that ships with the hardware to get started, this is worth a close look.

With a maximum mounting depth of 11.9 inches and a weight capacity of 198.4 lb (90 kg), the RK15WALLO handles a realistic mix of patch panels, 1U switches, and cable management gear without concern. Steel construction keeps the frame rigid under load — this isn't a light-duty consumer shelf, it's a commercial-grade rack designed for real switch and panel density. The 21.4 lb unit weight is manageable for a two-person wall install, which is important when you're anchoring a loaded rack overhead.

Key Features

• 15U of Usable Space: Fifteen rack units in a 30.5-inch-tall frame gives you enough room for a 24-port patch panel, a managed switch, a small UPS, and a couple of cable management blanks — everything a branch IDF needs without wasted vertical space.
• 198.4 lb (90 kg) Weight Capacity: Handles dense switch stacks and fully loaded patch panels without flexing. A fully populated 15U install with mid-weight 1U switches and patch panels will typically land well under this ceiling, giving you real headroom.
• 11.9-inch Maximum Mounting Depth: Accommodates most 1U and 2U switches and patch panels. Note this is a hard constraint — deeper devices such as full-depth servers or high-port-count chassis switches won't fit. Verify device depth before specifying.
• EIA/ECA-310-E Compliance: Standard 19-inch rack rail spacing means compatibility with virtually any rackmount equipment from any vendor — no adapter rails, no custom brackets needed.
• Steel Construction, Black Finish: All-steel frame resists racking and twisting when wall-mounted and loaded asymmetrically. The black powder coat is standard for low-visibility installs in server rooms and wiring closets.
• Open Frame Design: No door, no side panels — airflow is unrestricted, which matters when stacking switches that rely on passive or low-CFM active cooling. Also simplifies cable management and visual inspection without opening an enclosure.
• 2-Post Configuration: Two vertical mounting rails keep the footprint shallow against the wall. This is the correct choice when depth is the constraint; it's not the right configuration if you need rear cable support rails for heavier chassis equipment.
• M6 Screws, Cage Nuts, and Washers Included: Ships with the hardware you actually need to populate the rack. M6 cage nuts fit the threaded square holes standard on this rail type, and having them in the box means you're not waiting on a separate hardware order to start the install.
• 5-Year Manufacturer Warranty: StarTech backs the RK15WALLO with a 5-year warranty — longer than most rack hardware in this class, which reflects confidence in the steel construction and useful for long-cycle infrastructure installs where you don't want to source a replacement in year three.

Integration & Compatibility

The RK15WALLO conforms to EIA/ECA-310-E, the governing standard for 19-inch rackmount equipment spacing. Any device with standard 19-inch rackmount ears will install directly on these rails using the included M6 cage nuts and screws. This covers the overwhelming majority of enterprise and SMB networking equipment: Cisco, Juniper, Aruba, Ubiquiti, Netgear, patch panels from Panduit, Leviton, Belden, and cable management accessories from any major vendor.

The 11.9-inch maximum mounting depth is the compatibility constraint to verify first. Most 1U managed switches (Cisco SG350, Ubiquiti UniFi, Aruba 1930 series) fall well within this limit. Mid-depth devices like some Cisco Catalyst or HPE Aruba models should be measured before ordering. Full-depth servers and storage appliances will not fit — this rack is for networking and patch infrastructure, not compute.

For environments running structured cabling into an network switching infrastructure, this rack pairs well with PoE-capable switches for camera and VoIP distribution. Security integrators deploying IP camera systems at branch sites will find the 15U footprint appropriate for the switch, patch panel, and NVR that typically anchor a small surveillance closet. For guidance on planning your network distribution layer, see the PoE switch selection guide. If you need more U-space or a deeper mounting solution, compare against other wall mount racks in the same line.

Frequently Asked Questions

Q: What is the maximum equipment depth the RK15WALLO can accommodate?

A: The maximum mounting depth is 11.9 inches (30.3 cm). Verify your switch or appliance depth against this figure before ordering — most 1U managed switches fit comfortably, but deeper chassis equipment will not.

Q: Does the RK15WALLO include mounting hardware?

A: Yes. The RK15WALLO ships with M6 screws, M6 cage nuts, and washers — the standard hardware needed to mount rackmount equipment on this frame.

Q: What rack standard does the RK15WALLO conform to?

A: It conforms to EIA/ECA-310-E, the standard governing 19-inch rackmount equipment spacing. Any equipment with standard 19-inch rackmount ears is compatible.

Q: What is the weight capacity of the RK15WALLO?

A: The RK15WALLO supports up to 198.4 lb (90 kg) of rackmounted equipment — sufficient for a fully populated mix of switches, patch panels, and cable management hardware typical of a 15U IDF install.

Q: What warranty does the RK15WALLO carry?

A: StarTech provides a 5-year manufacturer warranty on the RK15WALLO.

Q: Is the RK15WALLO suitable for servers or storage appliances?

A: No. The 11.9-inch maximum mounting depth and 2-post open-frame design are optimized for networking and patch infrastructure. Full-depth servers and storage appliances typically exceed 11.9 inches in depth and require a 4-post enclosed rack.

Eden Phillips

The RK15WALLO comes up regularly in branch IDF and security closet builds where the real constraint is wall depth, not rack density. The 11.9-inch maximum mounting depth is the spec that drives the decision — it's deep enough for virtually every 1U managed PoE switch on the market today, but it closes the door on anything chassis-based. For the common use case (patch panel, PoE switch, maybe a small NVR or UPS), the 15U frame and 198.4 lb capacity leave plenty of margin.

Technical Highlights:

• 198.4 lb Load Rating: At roughly 13 lb per U of rated capacity, this frame handles a realistic dense 15U install — fully loaded 24-port patch panels run about 2–3 lb each, and 1U PoE switches typically land under 8 lb. You won't approach the ceiling in a standard IDF config.
• EIA/ECA-310-E Compliance: Standard 19-inch rail spacing means zero compatibility guesswork. Every mainstream switch, patch panel, and cable manager from every major vendor drops straight in using the included M6 cage nuts — no adapter rails, no sourcing extra hardware.
• 5-Year Warranty on Steel Construction: Most rack hardware warranties run 1–2 years. The 5-year coverage on the RK15WALLO reflects the all-steel build and matters for infrastructure that's expected to outlast two or three equipment refresh cycles without replacement.

Deployment Considerations:

• Wall anchor selection is the install variable that matters most. At 21.4 lb empty and up to 198.4 lb loaded, the fasteners and wall structure — not the rack — are what fail in a bad install. Stud-mount or use rated toggle anchors rated above the expected loaded weight; drywall anchors alone are not appropriate for a loaded rack at this capacity.
• The open-frame design means no cable containment is built in. Plan your horizontal and vertical cable management before populating the rack — adding it after the fact on a wall-mounted frame is significantly more difficult than on a floor unit.

The RK15WALLO is a solid fit for security integrators building out small branch surveillance closets: a 24-port patch panel on top, a managed PoE switch feeding cameras, and a compact NVR below. The 15U frame handles exactly that equipment mix with room to spare, and the wall-mount profile keeps the closet walkable.
