Viking K-1700-3-BN Bronze Vandal Resistant Entry Phone with Keypad

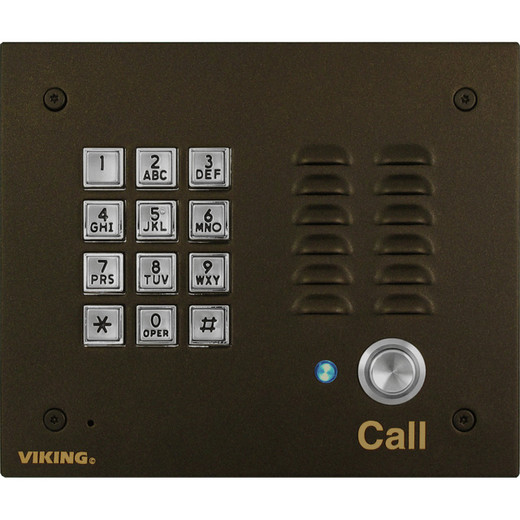

Viking Electronics K-1700-3-BN Oil Rubbed Bronze Vandal Resistant Entry Phone with Keypad

Overview

The K-1700-3-BN is a handsfree analog entry phone built for apartment lobbies, residential door entry, and access control integrations where appearance and durability both matter. The oil rubbed bronze powder coat finish over 14-gauge 316 stainless steel gives it a finished architectural look without sacrificing the structural integrity needed to resist tampering. It is telephone line powered — no separate power supply or PoE infrastructure required — making it straightforward to wire into existing analog telephone systems or door entry controllers. The unit ships flush-mount-ready with a rough-in box included; surface mounting requires the optional VE-6x7 enclosure.

Compatibility

The K-1700-3-BN integrates with any analog telephone system or door entry controller that accepts a standard REN 0.5A telephone line connection. It is part of the Viking Electronics K-1700-3 Series, and is compatible with Viking door controllers and entry systems designed for analog handsfree call boxes. The included rough-in box supports flush mounting in standard wall cavities. For entry phone and intercom deployments requiring surface mounting — common in retrofit or concrete wall installs — pair with the Viking VE-6x7 surface mount box (sold separately). The bronze finish matches the K-1700-3-BN-EWP variant if an enhanced weather protection version is needed for the same opening.

Installation Notes

The faceplate uses T-10 Torx security hardware — a standard T-10 driver is required; no proprietary tools needed beyond that. Flush mounting uses the included rough-in box (4.5" x 5.5" x 2.5"), which fits a typical new-construction or remodel wall opening. The unit is rated IP66, meaning direct rain and driven moisture won't be an issue, but verify the rough-in box is properly sealed at the wall penetration to maintain that rating in exterior applications. Operating range is -20°F to 130°F with humidity up to 95% non-condensing — suitable for most North American exterior climates, though extreme cold-climate installs below -20°F require a vandal resistant entry phone rated to lower thresholds. Speaker output is 70 dB maximum at 1 meter — adequate for a single-door vestibule, but evaluate ambient noise levels in high-traffic lobbies before specifying. Overall unit dimensions are 5.5" x 6.5" x 2.6"; confirm rough opening dimensions before rough-in. For access control integrations, wire the call button output to the door controller's input per the K-1700-3 Series manual.

What's in the Box

• 1x K-1700-3-BN entry phone unit (bronze finish)
• 1x rough-in box (4.5" x 5.5" x 2.5")
