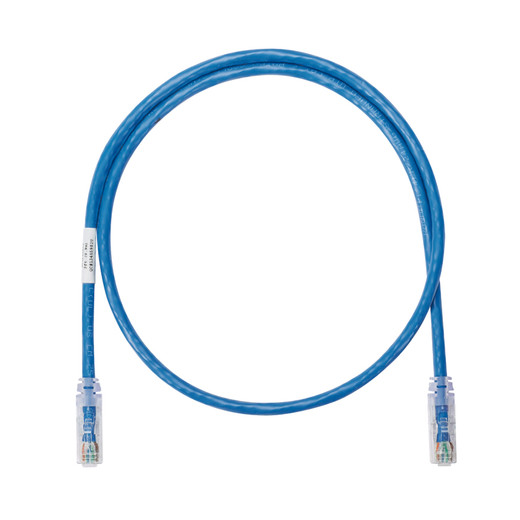

Panduit NK6APC12BU Cat6A 12ft Patch Cord

Panduit NK6APC12BU NetKey Cat6A Patch Cord

The Panduit NK6APC12BU is a 12-foot Category 6A patch cord engineered for high-performance 10GBASE-T Ethernet networks, wireless infrastructure backhaul, and Power over Ethernet installations. This blue UTP cable features CM/LSZH flame rating for plenum-equivalent safety, 26 AWG stranded copper conductors for flexibility in tight routing scenarios, and RJ45 modular plugs tested to exceed TIA-568-C.2 Category 6A channel requirements. The NetKey line delivers consistent 500 MHz bandwidth performance across the full 100-meter channel, making it the go-to patch cord for integrators deploying IP camera networks, wireless access point drops, and PoE++ infrastructure where link reliability and standards compliance are non-negotiable.

Key Features

• Category 6A performance to 500 MHz — supports 10GBASE-T Ethernet at full 100-meter distance without performance degradation
• CM/LSZH dual-rated jacket — low-smoke zero-halogen formulation meets both U.S. and international fire safety codes in a single cable
• 26 AWG stranded conductors — superior flexibility for patch panel dressing, horizontal cross-connects, and cabinet routing compared to solid-core alternatives
• PoE++ ready — tested to IEEE 802.3af/at and proposed 802.3bt Type 3/4 for 90W+ PoE delivery to PTZ cameras, high-power access points, and LED lighting controllers
• Exceeds TIA-568-C.2 and ISO 11801 Class EA — third-party verified headroom over minimum standards ensures margin against real-world insertion loss, NEXT, and return loss budgets
• Blue jacket for T568B pair identification — matches industry convention for horizontal cabling, simplifying troubleshooting and MAC work

Panduit NetKey Cat6A patch cords use F/UTP (foiled/unshielded twisted pair) construction with individually shielded pairs and an overall foil screen. This design delivers alien crosstalk immunity superior to standard UTP while avoiding the stiffness and termination complexity of S/FTP braided-shield cables. The 26 AWG stranded conductors provide bend radius performance critical for high-density patching — the cable routes cleanly in 1U and 2U panels without kinking or jacket deformation that degrades electrical performance over time. RJ45 plugs are gold-plated 50-microinch contacts in a modular 8P8C housing with integrated strain relief; the plug-to-cable bond is factory-crimped and tested to withstand 200+ insertion cycles without contact degradation. Each cord is swept-tested across the full 1–500 MHz spectrum and ships with a serialized test report confirming compliance to ANSI/TIA-1096-A field test standards.

This 12-foot length is the workhorse size for rack-to-switch patching, equipment-to-wall-port connections, and short horizontal runs in open offices and equipment rooms. In IP camera deployments, the NK6APC12BU eliminates the need for field terminations when dropping cameras within 12 feet of an IDF or PoE midspan — you get factory-terminated reliability without paying for 25-foot or 50-foot cord waste. The CM/LSZH rating makes it code-compliant for air-handling spaces without requiring conduit, and the low-smoke formulation is preferred in healthcare, education, and high-occupancy buildings where evacuation safety is a priority. The blue jacket integrates visually with T568B horizontal cabling (blue pair for pins 4/5), reducing the chance of accidental mis-patching during MAC work or troubleshooting.

Panduit NetKey Cat6A patch cords are cULus Listed to UL 1863 and CAN/CSA-C22.2, RoHS compliant, and meet ANSI/TIA-568-C.2 component requirements with verified headroom over minimum insertion loss and return loss specs. The stranded-conductor design and foiled-pair construction make these cords the right choice for integrators running 10G surveillance networks, PoE++ access control panels, and high-density wireless infrastructure where cable performance directly impacts uptime and you can't afford to troubleshoot intermittent link drops caused by substandard patch cords.
