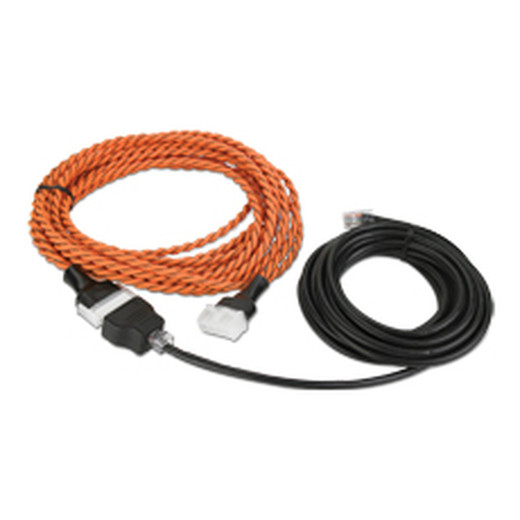

APC by Schneider Electric Netbotz Leak Rope Sensor - 20 Ft. - NBES0308

APC by Schneider Electric NBES0308 NetBotz 20 Ft Leak Rope Sensor

Overview

The NBES0308 is a wired leak rope sensor from APC by Schneider Electric's NetBotz environmental monitoring line, designed to detect water presence along a 20-foot sensing rope. Where a single point-sensor covers one spot, a rope sensor sweeps an entire floor zone — the right tool for data center raised floors, server room perimeters, and equipment room crawl spaces where a leak can travel before pooling in one detectable location. Pair it with a compatible environmental monitoring appliance from the APC by Schneider Electric catalog to generate alerts before standing water reaches critical equipment.

Key Features

• 20-Foot Rope Coverage: A 20-ft sensing element sweeps a broad floor zone in a single sensor run — far more practical than deploying multiple point sensors to guard a server room perimeter or under-floor cooling path.
• Wired Connectivity: Wired connection eliminates battery maintenance and the wireless reliability questions that matter in 24/7 monitored environments. Once installed, the sensor reports continuously without intervention.
• Operating Temperature 0–45°C (32–113°F): Covers the full range of conditioned data center and equipment room environments. If your space routinely exceeds 45°C you have larger problems than leak detection, but the spec confirms this sensor is calibrated for normal IT room conditions rather than outdoor or industrial extremes.
• Non-Operating Altitude up to 15,000 m: This rating speaks to shipping and storage resilience — the sensor arrives from altitude-variable logistics chains without calibration drift, which matters for facilities at elevation or receiving shipments via air freight.

Integration and Compatibility

The NBES0308 is designed to integrate with APC NetBotz monitoring appliances. Before ordering, confirm the target appliance's sensor port count and supported sensor SKUs — NetBotz platforms vary in the number and type of external sensor connections supported. Consult the network management and environmental monitoring accessories section for compatible appliances and expansion options. For facilities running a broader physical security overlay, environmental sensors like this one are increasingly integrated into access control and building management platforms via the NetBotz appliance's SNMP or API output.

Frequently Asked Questions

Q: What does the NBES0308 rope sensor detect?

A: It detects the presence of water or conductive liquid along the 20-foot sensing rope. When liquid contacts the rope at any point, the sensor signals the connected NetBotz appliance to generate an alert.

Q: Does the NBES0308 require a separate NetBotz appliance to function?

A: Yes. The NBES0308 is a passive sensor that connects to a compatible APC NetBotz monitoring appliance. It does not generate standalone alerts — the appliance processes the sensor signal and handles notification routing.

Q: What is the operating temperature range of the NBES0308?

A: The NBES0308 operates from 0°C to 45°C (32°F to 113°F), covering standard conditioned data center and equipment room environments.

Q: Can the NBES0308 sensing rope be extended or daisy-chained?

A: Extension capability depends on the specific NetBotz appliance and any available rope extension accessories in the NetBotz line. Verify maximum supported rope length with the appliance documentation before planning your installation.

Q: Is the NBES0308 suitable for outdoor or industrial environments?

A: Based on its 0–45°C operating range and wired indoor design, this sensor is intended for controlled indoor environments such as data centers and server rooms, not outdoor or harsh industrial settings.

Marty Allison

The NBES0308 is the sensor I recommend when a facilities team insists a single point-detector is "good enough" for a raised-floor data room — 20 feet of rope coverage fundamentally changes the detection geometry. One rope run along the perimeter of a standard hot-aisle cold-aisle layout catches leaks from cooling units, condensate lines, and roof penetrations before they pool under a rack. The 0–45°C operating spec confirms it's calibrated for conditioned IT space, not the ambient hallway outside it.

Technical Highlights:

• 20-Foot Rope Span: Covers roughly 6 meters of linear floor zone per sensor — enough to guard an entire row of racks or a CRAC unit perimeter with a single cable run back to the NetBotz appliance.
• Wired Signal Path: No RF interference, no battery swaps, no pairing failures at 3 AM during a weekend emergency. For a sensor whose job is to catch the leak you didn't know was coming, wired reliability is non-negotiable.
• 0–45°C Operating Range: Matches ASHRAE A1-class data center envelope exactly. If your facility runs warmer than 45°C, you're already outside recommended IT equipment ratings — the sensor spec is a secondary concern at that point.

Deployment Considerations:

• The NBES0308 requires a compatible NetBotz appliance with an available external sensor port — confirm port availability and supported sensor list before ordering. Not all NetBotz models support the same sensor SKUs.
• Route the rope along the lowest point of the floor zone where water would naturally collect; routing it at elevation along a wall significantly reduces detection reliability for floor-level leaks.

The NBES0308 is the right fit for data center raised-floor deployments where a single point sensor leaves too much unguarded floor — specifically any room with in-row cooling, under-floor cabling chases, or roof-fed conduit penetrations where condensate accumulation is a known risk.
