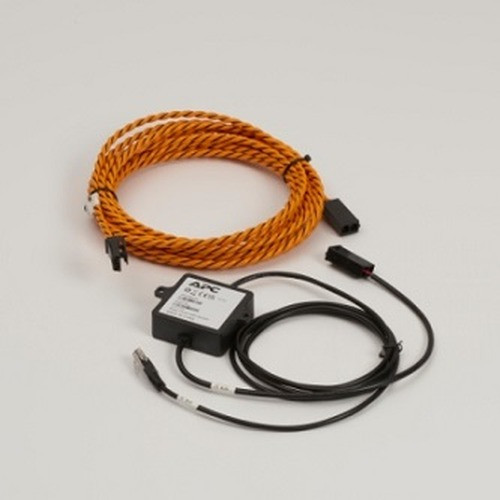

APC by Schneider Electric Netshelter Rack PDU 10000 Rope Leak Sensor - APDU1308

APC by Schneider Electric APDU1308 Netshelter Rack PDU 10000 Rope Leak Sensor

Overview

The APDU1308 is a rope-style leak detection sensor purpose-built for use with APC Netshelter Rack PDU 10000 series environments. Water intrusion in a data center or server room can cause rapid, irreversible equipment damage — and it typically goes undetected until damage is already done. This sensor is designed to close that gap, providing a discrete detection element that can be routed along the floor beneath racks, under raised floors, or around cooling infrastructure where water pooling is most likely to originate.

At 50 mm wide × 100 mm deep × 6 mm tall, the APDU1308 has a near-flat profile that fits into tight underfloor or under-rack runs without displacing cable trays or blocking airflow paths. The black and orange color scheme gives installers a clear visual reference when tracing sensor routing during commissioning or maintenance.

Key Features

• Rope Sensor Form Factor: The rope configuration lets you lay detection coverage along the actual path water would travel — under raised floors, along pipe runs, beside CRAC unit drip pans — rather than a fixed-point sensor that only catches spills directly above it. Coverage follows the geometry of your risk, not a fixed mounting point.
• Compact 6 mm Profile: At just 6 mm tall, this sensor clears standard raised floor tile thresholds and fits in conduit pathways where traditional bulky sensors would require rerouting. The 50 × 100 mm footprint means it occupies minimal real estate in densely cabled under-rack environments.
• RoHS Compliant: Meets Restriction of Hazardous Substances (RoHS) requirements — relevant for facilities with sustainability procurement mandates or EU-destination equipment refreshes. Documented compliance simplifies vendor qualification in regulated environments.
• Sustainability Compliance: Carries formal sustainability compliance status, which supports procurement requirements in organizations with environmental reporting obligations or green-building certifications (LEED, BREEAM).
• Black and Orange Color Coding: The two-tone finish isn't cosmetic — black body blends into the under-floor environment while orange accents remain visible during inspections, reducing the risk that a sensor gets removed or repositioned unknowingly during maintenance activities.
• Single-Unit Pack: Ships as a single sensor per pack (1 pc), which suits targeted installations where you need to add coverage to a specific risk zone without over-ordering. For full perimeter coverage of a large raised-floor environment, plan quantities based on your linear run requirements.

Integration and Compatibility

The APDU1308 is designed for the APC Netshelter Rack PDU 10000 series ecosystem. Deploy it in conjunction with the compatible PDU monitoring infrastructure to route leak detection alerts through your existing rack-level management layer. This avoids the need for a separate standalone leak alarm controller — the PDU's monitoring capability handles event reporting.

For facilities running power management and rack PDU infrastructure, integrating rope leak sensors at the rack level is standard practice in Tier III and Tier IV data center designs where the cost of an undetected water event far exceeds the sensor investment. Pairing leak sensors with environmental monitoring at the infrastructure management layer creates a more complete facilities-awareness posture.

The sensor's physical packaging (180 mm × 200 mm × 80 mm outer carton, 540 g shipped weight) is standard for international freight and small-parcel shipping, making it straightforward to include in rack-build kits or parts orders without special handling.

Deployment Context

Rope leak sensors like the APDU1308 are most valuable when deployed proactively during initial rack installation rather than retrofitted after a near-miss event. Route the sensor along the lowest point of the raised floor zone directly below each row of racks, with particular attention to areas adjacent to networking and power distribution equipment where condensation or CRAC drain lines pass through the floor plenum. A single undetected drip event that reaches live rack equipment can cause downtime costs orders of magnitude higher than the sensor cost.

This sensor is part of the broader APC by Schneider Electric rack infrastructure product line, which covers PDUs, UPS systems, and environmental monitoring across data center, edge, and distributed IT deployments.

Frequently Asked Questions

Q: What is the APDU1308 designed to detect?

A: The APDU1308 is a rope-style water leak detection sensor. It is designed to detect the presence of water or moisture along its length when deployed under raised floors, near CRAC units, or along other water-risk pathways in rack environments.

Q: Which APC product line is the APDU1308 compatible with?

A: The APDU1308 is designed for use with the APC Netshelter Rack PDU 10000 series. Verify compatibility with your specific PDU model before ordering to confirm the sensor connector and monitoring interface are supported.

Q: Is the APDU1308 RoHS compliant?

A: Yes. The APDU1308 carries RoHS compliance certification, making it suitable for facilities with hazardous-substance procurement restrictions or EU equipment-destination requirements.

Q: How many sensors come in one package?

A: One sensor per pack (1 pc). For extended coverage across multiple racks or a full raised-floor perimeter, order quantities based on your linear run requirements.

Q: What are the physical dimensions of the APDU1308 sensor?

A: The sensor body measures 50 mm wide × 100 mm deep × 6 mm tall, with a very low-profile form factor designed to fit in tight under-floor or under-rack installations without obstructing cables or airflow.

Q: What does the black and orange color scheme indicate?

A: The two-tone finish serves a functional purpose: the black body blends into the underfloor environment while orange accents remain visible during inspections, helping technicians locate and verify sensor routing without disturbing nearby cabling.

Marty Allison

The APDU1308 is one of those products that rarely gets discussed until a facility has had a water event — at which point it becomes the first line item on every future build spec. The 6 mm profile is the detail that matters most in practice: I've seen installers skip rope sensors entirely because the sensor body was thick enough to catch raised-floor tiles or block cable tray egress. At 50 × 100 × 6 mm, that objection disappears, and there's no excuse not to route one along every rack row during initial installation.

Technical Highlights:

• 6 mm sensor height: Clears standard 38 mm raised-floor supports with room to spare — no floor tile modification or cable rerouting required during installation.
• RoHS certification: Documented compliance is a real procurement gate in healthcare, federal, and EU-destination builds — not just a checkbox. Having it on the APDU1308 spec sheet prevents a last-minute qualification hold.
• Single-pack configuration: Useful for phased deployments where you're adding coverage to a specific risk zone — a new row of racks, a CRAC unit addition — without being locked into a multi-sensor bundle you don't need yet.

Deployment Considerations:

• Route the rope element along the lowest point of the floor plenum directly beneath your highest-value rack rows — not just near the CRAC unit drain. Most water events in raised-floor environments travel 10–15 feet from origin before pooling.
• Confirm connector and port compatibility with your specific Netshelter PDU 10000 unit before ordering. The sensor is designed for this product family, but port availability varies by PDU configuration and existing sensor load.

The APDU1308 is the right call for any raised-floor data center build or retrofit where the PDU 10000 series is already deployed — specifically in environments where a CRAC unit, chilled water line, or condensate drain runs within 20 feet of rack infrastructure and no leak detection is currently in place.
