Viking Multi-Zone Paging Interface Touch Tone Controlled - ZPI-4

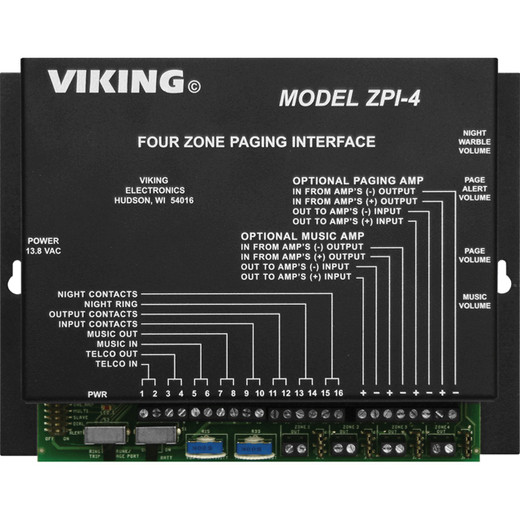

Viking Electronics ZPI-4 Four-Zone Touch Tone Paging Interface

The Viking Electronics ZPI-4 is a touch tone controlled, four-zone paging interface designed for facilities that need addressable, zone-by-zone PA switching from a standard telephone line. Whether you're routing paging audio to amplifiers via a 600-ohm line-level output or driving 70V/25V distributed speaker systems directly, the ZPI-4 handles both paths — a practical fit for schools, warehouses, healthcare corridors, and light commercial buildings where zone control matters but a full digital paging server is overkill. The unit ships ready for four zones and expands to eight, so you're not locked into a fixed deployment footprint.

Key Features

• Four Zones, Expandable to Eight: Standard four-zone operation covers most mid-size facilities. When your layout grows — adding a warehouse wing or a second floor — the ZPI-4 supports expansion to eight zones without replacing the controller. Plan for growth at install time rather than a forklift upgrade later.
• 600-Ohm Line-Level Output: The 600-ohm audio output impedance is the standard bridging impedance for professional audio equipment. This means direct, clean signal handoff to commercial amplifiers without impedance mismatch losses or the noise floor problems that plague consumer-grade interfaces.
• 200-Watt Maximum Amplifier Output at 8 Ohms: For zones with direct-drive speaker loads — 8-ohm systems rather than 70V distributed lines — the ZPI-4 supports up to 200 watts. That's enough headroom for large open-floor areas like gymnasiums or loading docks where volume needs to cut through ambient noise.
• Relay Contacts Rated 5A at 30V DC / 250V AC: The relay contacts aren't just for audio switching. At 5 amps, they can trigger auxiliary devices — strobe lights, door unlatch signals, or zone indicator lamps — as part of a paging event, without needing a separate relay board.
• Adjustable Night Bell Volume: Night bell level is field-adjustable, so after-hours alert volume doesn't have to match daytime paging levels. Facilities with security-only overnight staff can dial back the bell without touching the main paging gain.
• Multiple Disconnect Options: Silence, CPC, busy signal, and time-out disconnect modes give you control over how the paging session terminates. In high-traffic telephone environments, time-out disconnect prevents a stuck line from blocking the paging port indefinitely.
• Cage Clamp Screw Terminals: Cage clamp terminals hold wire more reliably than standard screw-only terminals under vibration or repeated thermal cycling — a detail worth noting in manufacturing or HVAC-adjacent installs where connections loosen over time.
• 120V AC Input, 13.8V AC with 1.25A Adapter: Standard North American mains input with a provided adapter. No special power conditioning required. The unit draws a modest 1.25A, so it won't stress a standard outlet or UPS branch circuit.

Integration and Compatibility

The ZPI-4 (often searched as ZPI 4) interfaces with Viking's PA-60 amplifier — one or two PA-60 units can be added per the manufacturer's documentation, providing 60W or 120W of amplified output respectively. For IP-based paging environments, the Viking 40-IP SIP/Multicast speaker and PSA-TB-IP IP Paging Speaker Adapter with talk-back are compatible Viking products to consider alongside this interface. The touch tone control architecture means any DTMF-capable telephone, PBX, or VoIP system can operate the zone selection without proprietary control hardware. For facilities already running a commercial paging system, the ZPI-4 drops in as a zone-switching layer rather than requiring a full system replacement. Integrators deploying Viking Electronics telephone entry or intercom products will find the ZPI-4 fits naturally into the same wiring infrastructure.

Frequently Asked Questions

Q: How many zones does the ZPI-4 support?

A: The ZPI-4 supports four zones standard and is expandable to eight zones, making it suitable for facilities that anticipate growth without requiring a full system replacement.

Q: What type of audio output does the ZPI-4 provide?

A: The ZPI-4 provides a 600-ohm line-level output for connection to external amplifiers, and also supports amplified output up to 200 watts at 8 ohms for direct speaker-load zones.

Q: What disconnect modes are available on the ZPI-4?

A: The ZPI-4 offers four disconnect options: silence, CPC, busy signal, and time-out. This flexibility helps prevent stuck paging lines in busy telephone environments.

Q: Can the ZPI-4 relay contacts control external devices like strobes or door hardware?

A: Yes. The relay contacts are rated at 5 amps at 30V DC or 250V AC, sufficient to trigger auxiliary devices such as strobe lights or door latch signals as part of a paging event.

Q: What is the operating temperature range of the ZPI-4?

A: The ZPI-4 operates between 0°C and 32°C (32°F to 89.6°F). It is not rated for outdoor or unheated space installation — plan for a conditioned equipment room or interior telecom closet.

Q: Does the ZPI-4 require a special power source?

A: No. The ZPI-4 runs on standard 120V AC mains power with the included 13.8V AC, 1.25A adapter. No special power conditioning or separate transformer is required.

James Everett

The ZPI-4 is one of those units that solves a specific problem cleanly: you have a telephone-based paging source and you need to split audio across discrete building zones without installing a full digital paging matrix. The 600-ohm output impedance is the right spec here — it bridges cleanly to any commercial amp input, and the 200-watt ceiling at 8 ohms means you have real headroom for large spaces, not just background music levels.

Technical Highlights:

• Expandable Zone Architecture: Ships as a 4-zone unit but supports expansion to 8 zones — spec this in at the time of installation so conduit and wiring runs account for the full potential zone count, not just today's four.
• Relay Contacts (5A / 250V AC): These contacts handle more than audio switching. At 5A/250V AC, you can run a strobe circuit or a door-release coil directly off the relay without an interposing relay — one less component to fail in the field.
• Operating Temperature Ceiling of 32°C: This is the spec most installers overlook. 32°C (89.6°F) is the hard ceiling — a telecom closet that gets summer solar loading can easily breach that. Verify the equipment room is actively cooled before final placement.

Deployment Considerations:

• The 24V DC talk battery voltage and the cage clamp terminal block are both signs this unit was designed for telephone-infrastructure environments — wire it into your 66-block or 110-block termination scheme the same way you'd treat any telco device.
• The operating humidity ceiling is 95% non-condensing, but the temperature limit of 32°C is the binding constraint for most US commercial installs — don't treat this as a general-purpose mechanical room unit.

The ZPI-4 is the right fit for a school, healthcare campus, or light-industrial facility that already runs telephone-based paging and needs reliable zone switching without migrating to an IP paging platform. If your environment is already IP-forward, evaluate the Viking 40-IP SIP speaker path instead — but for POTS or PBX-anchored infrastructure, the ZPI-4 is purpose-built for exactly that scenario.
