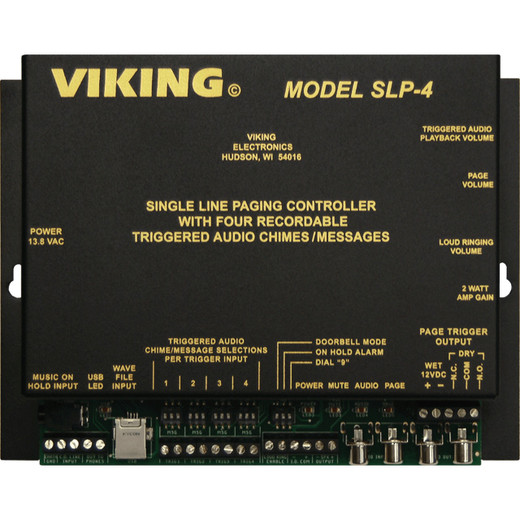

Viking Electronics SLP-4 Single Line Paging Controller

The Viking Electronics SLP-4 is a single-line paging controller built for small commercial facilities, light industrial spaces, and entry-control applications where you need on-demand audio announcements, door chime sequences, or triggered paging without a full distributed-audio infrastructure. It integrates directly with a standard POTS phone line, drives up to 16 paging speakers from a single 2-watt amplifier, and stores custom WAV files via USB — making it a practical fit for telephony-integrated intercom and paging systems in lobbies, warehouses, and small office buildings. The SLP-4 (often searched as SLP 4) ships as a wall-mount enclosure powered from 120V AC with an onboard regulated supply, so there's no separate transformer to provision.

Key Features

• 2-Watt Amplifier Output — Up to 16 Speakers: The onboard amplifier drives up to three 8-ohm speakers or up to sixteen 45-ohm paging horns from a single output zone. For a small warehouse or loading dock with a handful of ceiling horns, you won't need a separate amplifier rack — the SLP-4 handles the load directly. Run longer cable if needed; maximum speaker wire run is 300 ft (91m), which covers most single-floor commercial deployments.
• 100 dB SPL at 1 Meter: Tested with the Viking 25AE paging horn, the system produces 100 dB at 1 meter — loud enough to cut through ambient noise in light manufacturing or receiving areas without running a second zone. If your environment exceeds 85 dB ambient, that 15 dB of headroom keeps the page audible without shouting.
• CD-Quality WAV File Playback via USB: The SLP-4 accepts 16-bit or 8-bit WAV files at 44.1kHz, 22kHz, or 11kHz sampling rates over a USB port. Load your own pre-recorded announcements, door chimes, or emergency tones directly — no proprietary audio format, no encoding software required. Standard WAV files from any audio editor work. This is the spec to look for if you need site-specific voice announcements rather than a fixed electronic tone.
• Single-Line Phone Integration (REN 0.5A): With a Ringer Equivalence Number of 0.5A, the SLP-4 connects to a standard analog phone line without loading down the ring current. Talk battery is supplied at 36V DC, keeping the line compliant with normal POTS signaling. If you're integrating with an analog extension off a PBX, verify the extension port can supply adequate ring current — most can, but low-power PBX ports occasionally run tight.
• 305-Meter Doorbell Switch Wire Run: The doorbell/door-trigger input supports wire runs up to 305m (1,000 ft), giving you enough reach to place door-contact triggers at a loading dock or perimeter gate without a relay booster. Combined with the access control and door entry category, this makes the SLP-4 a natural companion to door controllers and intercoms in campus or multi-building layouts.
• Page Trigger Output — 1K Ohm Maximum Load: The unit includes a page trigger output rated for loads up to 1K ohm, allowing you to key an external device (relay, amplifier, strobe) when a page fires. That opens the door to visual alert integration or a secondary amplifier zone without an external relay module.
• 24 Screw Terminals + 4 RCA + 1 USB + 1 3.5mm: The connection block covers all the bases — screw terminals for line, speaker, and trigger wiring; RCA connectors for audio source input or output; 3.5mm for a headset or alternate audio feed; USB for WAV file management. The terminal density keeps this a single-enclosure install rather than a patchwork of adapters.
• 120V AC Power, Wall-Mount Enclosure: The unit runs on standard 120V AC (output: 13.8V AC at 1.25A regulated), sized to mount on a utility wall near the phone demarc or beside the access panel. Dimensions are 210mm × 159mm × 45mm — roughly the footprint of a small wall-plate device. No conduit knockout or DIN rail needed for a basic install.
• Operating Environment 0°C to 32°C / 5–95% Humidity: Rated for typical indoor commercial environments. This is not an outdoor-rated device — it belongs in a conditioned utility closet, server room, or interior wall. If you're deploying in an unconditioned warehouse bay that sees temperature swings below freezing in winter, plan for an enclosure with climate control or relocate the controller to a heated space.

Integration and Compatibility

The SLP-4 is designed around standard analog telephony. It connects to any POTS line or analog PBX extension, and its trigger inputs are compatible with dry-contact door switches, motion sensors, or access control relay outputs — the kind of hardware already present in most Viking Electronics door entry and paging deployments. The page trigger output can key downstream equipment: additional amplifier zones, visual strobes, or a relay that trips a secondary notification device. Audio input via RCA allows you to feed the system from an overhead music source or intercom panel, and the 3.5mm port accommodates a direct headset or auxiliary input. For facilities that have already standardized on Viking's intercom and door entry product line, the SLP-4 integrates without protocol translation or additional interfaces — it runs on the same analog wiring infrastructure already in place.

Frequently Asked Questions

Q: How many speakers can the SLP-4 drive?

A: The SLP-4's 2-watt amplifier supports up to three 8-ohm speakers or up to sixteen 45-ohm paging horns wired to the speaker output. Maximum speaker wire run is 300 ft (91m) on 18-gauge wire.

Q: What audio file formats does the SLP-4 support?

A: The SLP-4 plays back WAV files only — 16-bit or 8-bit resolution at 44.1kHz, 22kHz, or 11kHz sampling rates. Files are loaded via the USB port. No proprietary format or encoding software is required.

Q: Does the SLP-4 work with a PBX or VoIP system?

A: The SLP-4 is designed for standard analog POTS lines. It will work with an analog extension port on a PBX (the REN is 0.5A, well within most PBX port ratings). Native SIP/VoIP integration is not specified in the manufacturer documentation — a VoIP-to-analog adapter (ATA) would be required to interface with a SIP-only phone system.

Q: What is the maximum wire run for the doorbell trigger input?

A: Viking specifies a maximum doorbell switch wire run of 305m (1,000 ft), making it practical for campus entrances, loading docks, or perimeter gates without a signal booster.

Q: Can the SLP-4 be installed outdoors?

A: No. The operating range is 0°C to 32°C with 5–95% relative humidity — this is an indoor, conditioned-environment device. Outdoor or unconditioned installations require a climate-controlled enclosure.

Q: What does the page trigger output connect to?

A: The page trigger output is rated for a maximum load of 1K ohm. It can key a relay, strobe, secondary amplifier, or any compatible downstream device that triggers when a page event fires. It is not a relay contact itself — verify your downstream device's input impedance before wiring.

James Everett

The SLP-4 is one of those devices I recommend specifically when a site already has analog wiring and POTS-based door entry, and the customer wants triggered paging without committing to a full distributed audio system. The 2-watt amplifier driving up to 16 × 45-ohm horns is the key spec — most small commercial installs max out at 6–8 horns, so the SLP-4 rarely gets pushed to its ceiling, which keeps the audio clean. Add the USB WAV playback at 44.1kHz/16-bit and you have genuinely intelligible voice announcements, not a buzzy electronic squawk.

Technical Highlights:

• Speaker Load Flexibility: 8-ohm or 45-ohm speaker wiring — the 45-ohm configuration is the reason you can run 16 horns without tripping the amplifier. Mismatching impedance is the most common field error; confirm horn ratings before pulling wire.
• 305m Doorbell Trigger Run: 1,000 ft of doorbell switch wire is enough to reach a perimeter entrance on most mid-size campuses without a relay booster. That range makes the SLP-4 viable for sites where the controller lives in a central comms room far from the entry point.
• 36V DC Talk Battery: The onboard talk battery at 36V keeps the line within standard POTS signaling margins, which matters when integrating with analog PBX extension cards that have their own current limits — the 0.5A REN leaves plenty of headroom on nearly any port.

Deployment Considerations:

• The 0°C–32°C operating range is the primary installation constraint. In unconditioned spaces like unheated warehouses or mechanical rooms, the SLP-4 needs to live in a heated enclosure or an adjacent conditioned space — plan the wiring run accordingly rather than mounting it at the door.
• The page trigger output is a signal output rated at 1K ohm maximum load, not a dry relay contact. If you're driving a strobe or external amplifier that expects a contact closure, you'll need an interposing relay between the SLP-4 output and the downstream device.

For a school lobby, small clinic check-in, or warehouse receiving office that runs Viking door entry hardware on analog lines, the SLP-4 slots in cleanly and delivers site-customizable paging without adding a separate amplifier chassis or a VoIP media gateway to the rack.
