Viking C-200 Entry Phone Interface Single-Line CO Sharing Control

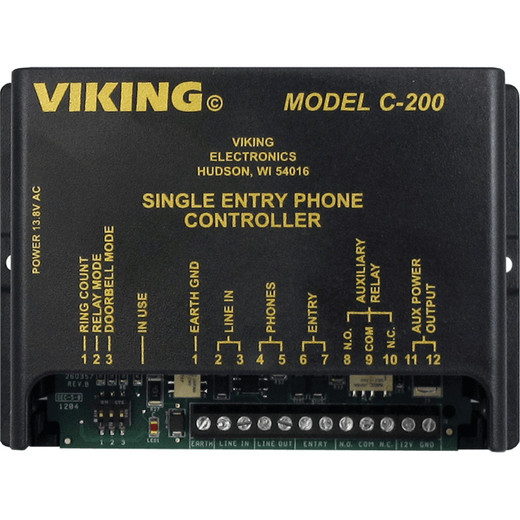

Viking Electronics C-200 Entry Phone Interface for Single-Line CO Sharing

Overview

The Viking Electronics C-200 is a dedicated entry phone interface that lets a single telephone line serve both a standard telephone system and one Viking entry phone — without requiring a dedicated line for the door station. If your facility runs a tight phone infrastructure and you need lobby or door entry audio without pulling a new line or expanding your PBX, the C-200 is a practical single-board solution. It ships with a UL-listed 120VAC adapter, so you're wiring a plug-in device, not a hardwired panel. The C-200 (often searched as C 200) measures 5.25″ × 4.1″ × 1.75″ and weighs 2 lbs — small enough to tuck inside a wiring closet or behind a reception desk.

Key Features

• Central Office Line Sharing: The C-200 bridges a single CO line between your telephone system and the entry phone. That means one POTS or analog trunk handles both inbound calls and door-station calls — no second line subscription, no additional analog port on your PBX or KSU.
• Call Waiting Integration: Built-in call waiting support lets the entry phone signal tenants who are already on an active call, so visitors aren't left unannounced at the door while the line is busy. Eliminates the most common complaint with basic entry phone wiring.
• One Auxiliary Contact (.5A @ 125V AC / 1A @ 30V DC): The onboard relay can trigger a door strike, magnetic lock, or gate controller. The contact rating — half an amp at 125VAC or one amp at 30VDC — is sufficient for most low-current electric strikes and small relay-driven access devices. Verify your strike's inrush current before wiring directly.
• Auxiliary Power Output (12VDC @ 300mA): The C-200 supplies 12V at 300mA for powering the entry phone or a small relay board locally, reducing the need to run separate power to the door station. That 300mA ceiling is enough for most Viking entry phones but won't support heated enclosures or high-draw peripherals.
• Talk Battery (32V DC): Provides the DC voltage needed to power the entry phone's audio circuit over the line, consistent with standard analog telephony signaling. No external bias supply required at the door.
• Ring Output (3.5 REN): At 3.5 REN, the C-200 can drive multiple standard telephone ringers on the tenant side without clipping the ring signal — useful in small multi-tenant lobbies where several desk phones share the same ring chain.
• UL-Listed 120VAC Adapter Included: The supplied adapter is UL listed, which matters for facilities that enforce electrical code compliance or require listed components at each device. No sourcing a third-party wall wart or worrying about adapter compatibility.
• Compact Form Factor (133mm × 104mm × 44mm): Fits in a standard wall-mount enclosure or above a drop ceiling without consuming rack space. Weight is 2 lbs — one person, no tools beyond a screwdriver.

Integration and Compatibility

The C-200 is designed for analog telephone environments — single-line telephones, small KSU systems, or any telephone system with a standard analog CO trunk interface. It supports entry phone and access control deployments where you need door-call functionality layered onto an existing phone infrastructure without VoIP complexity. The auxiliary contact can interface with most low-voltage electric door strikes and access control hardware within the relay's rated current.

Operating temperature is 0°C to 32°C (32°F to 90°F) — this is an indoor-rated device. Don't install it in an unheated vestibule, exterior enclosure, or mechanical room subject to sub-freezing temperatures. Humidity tolerance is 5% to 95% non-condensing; standard conditioned interior spaces are fine. For a broader look at Viking Electronics entry and intercom products, the C-200 sits at the single-entry, single-line tier of their door entry line.

If you're evaluating how this fits into a larger door entry or intercom system deployment, note that the C-200 handles exactly one entry phone on one line. Multi-tenant or multi-door applications will require additional interfaces or a different product family. For guidance on matching entry phone hardware to your phone system, consult the intercom and entry phone buying guide.

Frequently Asked Questions

Q: Does the C-200 require a dedicated phone line?

A: No. The C-200 is specifically designed to share one existing CO line between a telephone system and a single Viking entry phone — that's its primary function. No second line or additional analog port is needed.

Q: What is the warranty on the C-200?

A: Viking Electronics provides a two-year limited manufacturer warranty on the C-200.

Q: Can the C-200 drive an electric door strike directly?

A: The onboard auxiliary contact is rated 0.5A at 125V AC and 1A at 30V DC. Most low-current electric strikes fall within this range, but verify your strike's rated current and inrush before wiring it directly. High-draw strikes or magnetic locks may require an interposing relay.

Q: Is the C-200 rated for outdoor or unheated installation?

A: No. The C-200 is rated for 0°C to 32°C operating temperature and must be installed indoors in a climate-controlled environment. The entry phone itself can be mounted outside; the C-200 interface stays inside.

Q: What telephone systems are compatible with the C-200?

A: The C-200 works with single-line telephones and telephone systems that have a standard analog CO trunk interface. It is not designed for all-digital or VoIP-only systems without an analog adapter or ATA.

Q: Does the C-200 include a power supply?

A: Yes. A UL-listed 120VAC / 13.8VAC 1.25A adapter is included with the unit.

Ted Perry

The C-200 is a purpose-built analog interface and it does exactly one thing well: it lets you add door-entry call functionality to a telephone system without consuming a dedicated line or an analog port. That 32V DC talk battery spec tells you this is engineered to the same electrical standard as the POTS network — not a cobbled-together adapter — and the included UL-listed 120VAC supply means you're not hunting for a compliant wall wart at install time.

Technical Highlights:

• Auxiliary Contact (.5A @ 125V AC / 1A @ 30V DC): Sized for standard low-current door strikes. Enough headroom for the vast majority of Viking-paired electric strikes, but plan for an interposing relay if your lock's rated current or inrush exceeds this.
• 12VDC @ 300mA Auxiliary Output: Powers the entry phone locally, eliminating a separate power run to the door station. At 300mA, it's right-sized for a standard Viking entry phone — don't expect it to carry a heated enclosure or a multi-device load.
• 0°C to 32°C Operating Range: This is a narrower thermal envelope than most installers expect. The interface must live in heated, conditioned space — a lobby closet, a wiring room, behind a reception desk. Plan accordingly before roughing in conduit.

Deployment Considerations:

• The C-200 is strictly a single-entry, single-line device. If the project grows to two doors or two CO lines, you need a second unit or a different product tier — don't try to parallel two entry phones on one interface.
• The 5% to 95% non-condensing humidity rating and the 32°C upper limit mean mechanical rooms, unheated basements, and any space subject to temperature swings are out of bounds. Failure in those environments won't necessarily be immediate — it will be intermittent and hard to diagnose.

The C-200 is the right fit for a small office, medical suite, or single-tenant commercial space where a Viking entry phone needs to share an existing analog trunk and access-control demands are limited to a single electric strike. It's not an enterprise solution, but for a one-door, one-line, indoor analog deployment, it covers the requirement cleanly.
