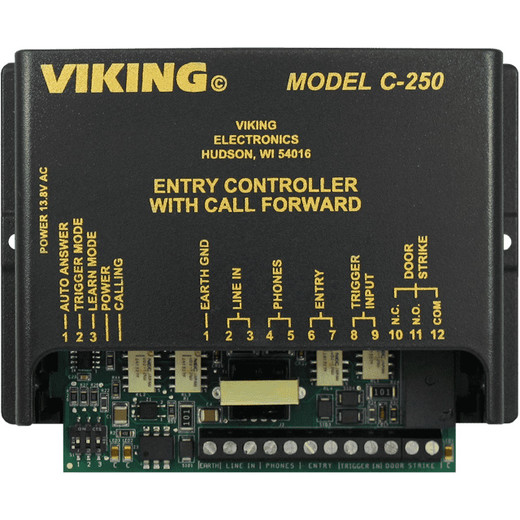

Viking Electronics C-250KE Entry Phone Controller with Call Forwarding

Overview

The Viking Electronics C-250KE is a single-line entry phone controller that lets a telephone system and a Viking analog entry phone share one phone line — no dedicated line required, no extra wiring run. It handles call forwarding to any extension or external number, so tenants can be reached wherever they are when a visitor presses the call button at the door, gate, or garage. For small commercial buildings, multi-tenant residential, or any site where pulling a second phone line is impractical, the C-250KE solves the wiring problem cleanly.

Compatible with the full Viking E-Series and K-Series analog entry phone lineup, the C-250KE (often searched as C 250KE) fits neatly into existing analog telephony infrastructure without requiring a VoIP migration or proprietary controller hardware. Power comes from a 120VAC wall source converting to 13.8VAC at 1.25A — straightforward to wire in a utility closet or back-of-house location near the entry point.

Key Features

• Single-Line Phone Sharing: One POTS line serves both the entry phone and the internal telephone system simultaneously. That eliminates the cost of a dedicated entry-phone line — on a monthly recurring basis, this pays for the controller quickly in any multi-line commercial account.
• Call Forwarding: Incoming entry phone calls forward to any reachable number — internal extension, cell phone, or off-site line. Tenants or staff don't need to be physically present to grant access, which is the primary operational requirement in smaller managed buildings.
• 6-Digit Security Code: Access is gated by a 6-digit numeric code rather than a simple 1-digit DTMF press. Six digits gives 1,000,000 possible combinations — meaningful resistance against casual code-guessing in multi-tenant environments compared to the 10-combination single-digit schemes found on basic controllers.
• 5 REN Ring Output: The ring equivalence number of 5 REN means the controller can drive up to five standard telephone devices on the ring signal simultaneously. In a small office where multiple desk phones need to ring on an entry call, this headroom matters — you won't run into silent-ring problems from an overloaded line.
• 32V DC Talk Battery: The 32V DC talk battery supply keeps audio levels stable during two-way conversation at the entry phone, regardless of line voltage fluctuations from the telephone system. Consistent talk battery means consistent voice clarity — relevant when the entry phone is mounted at distance from the controller.
• Relay Contact Rating — 5A @ 30VDC / 250VAC: The onboard relay is rated for real loads: 5 amps at either 30VDC or 250VAC. That's sufficient to drive an electric door strike, magnetic lock release, or gate actuator directly without an intermediate relay board — one less component in the control loop, one less failure point.
• Compact Form Factor — 5.25″ × 4.1″ × 1.75″: At roughly the footprint of a paperback book and under two inches deep, the C-250KE mounts in a standard electrical enclosure, a small surface box, or directly on a back-panel. The 2 lb. shipping weight means no special bracket hardware required for surface mounting.
• Operating Temperature Range — 32°F to 90°F (0°C to 32°C): This is an indoor-rated controller. It's designed for a conditioned utility closet or inside wall installation — not for direct outdoor exposure. If the controller needs to live in an unconditioned space that sees winter temperatures, plan for a heated enclosure.
• Operating Humidity — 5% to 95% Non-Condensing: The wide humidity tolerance handles most interior environments, including basements and utility rooms where HVAC isn't tightly controlled. Non-condensing is the operative word — avoid locations subject to direct moisture or temperature cycling that causes condensation.

Integration and Compatibility

The C-250KE is designed around Viking's own E-Series and K-Series analog entry phone hardware. If you're specifying a new entry system, pair this controller with any Viking E-Series or K-Series analog entry phone for a fully matched, manufacturer-supported installation. The controller integrates with standard single-line telephone systems and POTS-based PBX environments — it does not require SIP trunks, IP connectivity, or a cloud service to operate.

For broader context on analog entry phone systems and how controllers like the C-250KE fit into a building access architecture, see the access control category. If you're evaluating entry phone hardware to pair with this controller, the Viking Electronics product line includes a range of indoor and outdoor entry phones suited for commercial and multi-tenant residential applications. For installations that also require camera coverage at the entry point, review outdoor IP cameras for coverage options that complement an audio-only entry phone deployment. Where wiring infrastructure needs to be planned alongside the controller, consult the PoE switches category if you're integrating IP-based access control in the same project.

Frequently Asked Questions

Q: Is the C-250KE compatible with VoIP or SIP-based phone systems?

A: The C-250KE is an analog controller designed for single-line POTS and analog telephone systems. It is not documented as SIP or VoIP compatible. If your telephone system is fully IP-based without analog line ports, you would need an analog telephone adapter (ATA) or a hybrid PBX with FXO ports to interface with this controller.

Q: Can the C-250KE drive an electric door strike or magnetic lock directly?

A: Yes. The onboard relay is rated at 5A at 30VDC or 250VAC, which is sufficient to drive most standard electric strikes and low-current magnetic locks directly. Verify the current draw of your specific locking hardware against this rating before wiring — high-draw mag locks (those requiring more than 5A) will need an intermediate relay.

Q: What entry phones are compatible with the C-250KE?

A: The C-250KE is documented as compatible with all Viking E-Series and K-Series analog entry phones. Other analog entry phones may work on the shared phone line, but Viking documents compatibility with their own E-Series and K-Series lineup specifically.

Q: Where should the C-250KE be installed — inside or outside?

A: The C-250KE is rated for indoor installation only. Its operating temperature range is 32°F to 90°F (0°C to 32°C). Install it in a conditioned interior space such as a utility closet, telecom room, or inside wall enclosure. It is not rated for direct outdoor exposure or unconditioned environments that fall outside that temperature range.

Q: What is the security code length on the C-250KE?

A: The C-250KE uses a 6-digit security code, providing up to 1,000,000 possible combinations. This is a meaningful improvement over single or two-digit DTMF access schemes commonly found on basic entry controllers.

Q: What power supply does the C-250KE require?

A: The C-250KE operates on 120VAC input, converting internally to 13.8VAC at 1.25A. It connects to a standard North American 120VAC outlet — no special transformer or external power supply is required beyond the unit itself.

James Everett

I've spec'd the C-250KE into several small commercial and multi-tenant residential builds where the client had a single analog line they weren't willing to split the recurring cost on. The 5 REN ring output and 32V DC talk battery are the two specs that actually matter in day-to-day operation — the ring headroom keeps multiple desk phones chiming reliably on entry calls, and the 32V talk battery prevents the hollow, drop-out audio you get when line voltage sags under load.

Technical Highlights:

• Relay Rating (5A @ 30VDC/250VAC): Handles a standard electric door strike load without an add-on relay board — verified against most commercial 12VDC and 24VDC strikes in the under-500mA range. Size up to an external relay only if you're driving a high-current mag lock above 5A draw.
• 6-Digit Security Code: One million possible combinations is the floor for any commercial deployment where the access code might be shared with delivery personnel or contractors. Single-digit DTMF controllers common in residential installs are a non-starter here.
• 120VAC / 13.8VAC 1.25A Power: Draws from a standard outlet with no external transformer. At 5.25″ × 4.1″ × 1.75″ and 2 lbs., it fits in a half-depth wall box or mounts flat to a backboard in any telecom closet without bracket work.

Deployment Considerations:

• The 32°F to 90°F operating temperature ceiling is real — don't install the C-250KE in an unconditioned utility room or equipment closet that sees summer heat above 90°F. If the space isn't climate-controlled, plan for a ventilated or cooled enclosure before the first summer season.
• Confirm your telephone system presents a standard analog FXO interface to the controller. Fully IP-hosted PBX environments with no analog line ports will require an ATA in the signal path — that adds latency and a potential failure point that isn't present in a direct POTS installation.

This controller is the right fit for a 2–20 unit residential building or small commercial suite where the owner has one analog line, wants remote tenant notification via call forwarding, and needs a code-gated relay for an electric strike — all without a cloud subscription or IP infrastructure dependency.
