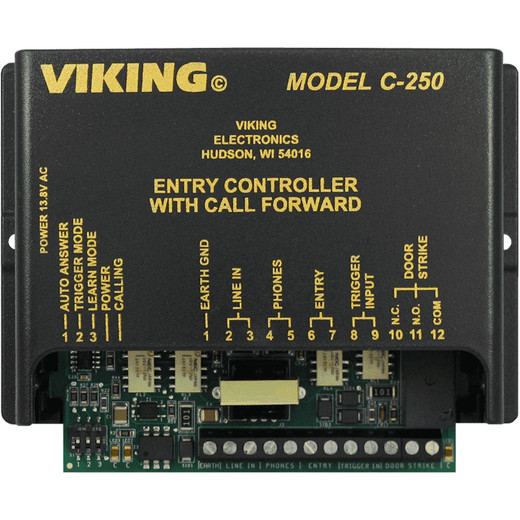

Viking Entry Phone Controller and Call Router - C-250

Viking Electronics C-250 Entry Phone Controller and Call Router

Overview

The Viking Electronics C-250 is a standalone entry phone controller and call router designed for commercial door entry systems where a dedicated POTS or analog phone line needs to handle visitor calls, door strike control, and call forwarding to remote extensions. The C-250 handles the signal routing and relay switching between your entry phone and the inside telephone network — eliminating the need for a full telephone system to manage a single-door entry point. At 5.25″ x 4.1″ x 1.75″ and under 2 lbs, it installs cleanly inside a standard enclosure or on a DIN rail mount without consuming significant panel space.

For integrators working with Viking Electronics entry phone systems or retrofitting analog door entry into an existing telephony setup, the C-250 slots in as the control brain behind the entry phone — managing ring output, door strike relay, and talk battery on a single 120VAC feed. It pairs naturally with Viking door phones and can be integrated into broader intercom and entry systems where call-forwarding capability is a site requirement.

Key Features

• Call Forwarding and Programmable Routing: The C-250 can be configured for 1-digit or 2-digit door strike commands, giving installers flexibility to match the dial plan of the connected telephone system. This means a single unit can serve a variety of site configurations without requiring additional hardware for command disambiguation.
• 5 REN Ring Output: A 5 REN ring output capacity means the C-250 can simultaneously drive multiple ringers or telephone instruments on the same line without signal degradation — useful in multi-station residential or small-commercial deployments where several inside phones must ring on a door call.
• 32V DC Talk Battery: The 32V DC talk battery supply powers the connected entry phone directly, so the door station does not require a separate power source. This simplifies wiring — fewer runs, fewer power supplies at the door, cleaner installation overall.
• Relay Contact Rating — 5A @ 30VDC / 5A @ 250VAC: The onboard relay handles up to 5A at both 30VDC and 250VAC, which is sufficient for the vast majority of electric door strikes and magnetic lock hardware in commercial use. No external relay module is needed for standard door hardware loads.
• 120VAC Power Input with 13.8VAC 1.25A Transformer: The unit runs on standard 120VAC mains and steps down internally via a 13.8VAC 1.25A transformer — wall outlet or panel connection, no specialty power supply required. This matters on retrofit jobs where adding a DC power supply to an existing closet is a project-scope argument you'd rather skip.
• 12 Cage Clamp Screw Terminals: All field connections terminate on 12 cage clamp screw terminals. Cage clamp terminations are faster and more reliable than standard screw-in terminals under vibration — a practical advantage in mechanical rooms or doors subject to heavy traffic.
• Compact Form Factor — 5.25″ x 4.1″ x 1.75″: At under 133mm x 104mm x 44mm, the C-250 fits inside a standard 4-square or handy box with room to spare, or mounts directly in a surface enclosure. Tight IDF closets and entry vestibule back-boxes are not a problem.
• Operating Temperature 0°C to 32°C (32°F to 90°F): This is a controlled-environment device — the rated range covers conditioned mechanical rooms, interior wiring closets, and heated vestibule panels. It is not rated for outdoor or unheated enclosure use; plan accordingly when specifying for cold-climate entry points.
• Operating Humidity 5% to 95% Non-Condensing: The wide humidity tolerance handles most interior environments including laundry rooms and basement utility spaces without issue, as long as condensation is not a factor at the installation point.

Integration and Compatibility

The C-250 (often searched as C 250) is designed to interface with analog telephone lines and Viking-compatible entry phone stations. The programmable 1- or 2-digit door strike command means it can be configured alongside most analog POTS or hybrid telephone systems that support DTMF signaling. For sites running a full access control infrastructure, the relay output can be wired in parallel with an access control panel to allow both phone-based and credential-based door release without conflicting with the strike circuit — though integrators should verify relay sharing compatibility with the specific access panel in use.

Planning a multi-door deployment? The C-250 is a single-door controller. Sites with two or more controlled entries will need one unit per door, or should evaluate multi-tenant entry system controllers that handle larger apartment or office door counts. For installations requiring extensive tenant phone number storage (up to 250 numbers), the Viking C-4000 is an alternative in the same family designed specifically for apartment-scale call routing.

Frequently Asked Questions

Q: What is the operating temperature range for the C-250?

A: The C-250 is rated for 0°C to 32°C (32°F to 90°F). This is an interior-only device — it should be installed in a conditioned space such as a wiring closet or interior panel enclosure, not in an unheated outdoor enclosure.

Q: Does the C-250 require a separate power supply for the door entry phone?

A: No. The C-250 provides 32V DC talk battery to power the connected entry phone directly. The unit itself runs on 120VAC mains via a built-in 13.8VAC 1.25A transformer — no additional power supply is needed at the door station.

Q: What door strike or lock hardware can the C-250 relay control?

A: The onboard relay is rated at 5A @ 30VDC and 5A @ 250VAC. This covers the majority of electric strikes, magnetic locks, and electric latch retraction hardware used in light commercial applications. Verify your strike's inrush current does not exceed 5A.

Q: Can the C-250 be configured for both 1-digit and 2-digit door strike commands?

A: Yes. Position #41 in the programming sequence selects either 1-digit or 2-digit door strike command mode, allowing the unit to match the dial plan of the connected telephone system or entry phone.

Q: How many telephone instruments can the C-250 ring simultaneously?

A: The C-250 provides a 5 REN ring output. Standard telephone instruments are typically rated at 1 REN each, so the unit can drive up to approximately 5 phones simultaneously on the same ring circuit.

Q: Is the C-250 suitable for outdoor installation?

A: No. The C-250 is an interior controller — its operating temperature ceiling of 32°C (90°F) and the absence of any weatherproof enclosure or IP rating make it unsuitable for direct outdoor installation. Mount it inside a conditioned enclosure and pair it with a separately weatherproofed Viking entry phone at the door.

Ted Perry

The C-250 is a purpose-built analog entry controller — not a multi-line telephone system accessory, not a VoIP gateway. What makes it specific to the job is the 32V DC talk battery output: the door phone gets its power directly from this unit, which on a retrofit job means you are pulling one cable run to the door instead of two. That is a real labor saving on masonry or finished-wall installs.

Technical Highlights:

• Relay Rating (5A @ 30VDC / 5A @ 250VAC): Handles standard electric strikes and mag locks without an add-on relay module. At 5A, it covers virtually all commercial-grade door hardware short of heavy industrial electromagnetic locks with high inrush — check inrush specs on any lock rated above 3A continuous.
• 5 REN Ring Output: With a 5 REN capacity, you can ring up to five standard telephone sets simultaneously on a door call — practical for small office or multi-station residential setups where you need every inside phone to alert on a visitor, not just a dedicated desk phone.
• Programmable 1- or 2-Digit Strike Command (Position #41): The two-mode dial plan configuration is the detail that determines whether this unit fits your telephone system. If your system uses a 2-digit DTMF release code, confirm the C-250 is programmed to position #41 before go-live — a 1-digit mismatch means the door never releases on first attempt, and troubleshooting it in the field costs time.

Deployment Considerations:

• The 0°C to 32°C (32°F to 90°F) operating range is a firm constraint — this is not a device for unheated mechanical rooms in cold climates or any outdoor enclosure. In northern installations, confirm the wiring closet or vestibule panel is on the conditioned side of the building envelope before signing off on the location.
• The C-250 is a single-door controller. If a project evolves to two or more controlled entries mid-scope, budget one unit per door or re-specify to a multi-tenant controller like the Viking C-4000, which handles up to 250 stored telephone numbers across multiple entry points.

The C-250 is the right specification for a single-door analog entry system in a commercial office, small multifamily, or institutional interior entry point — particularly on retrofit jobs where minimizing cable runs and avoiding a separate door-phone power supply are project priorities.
