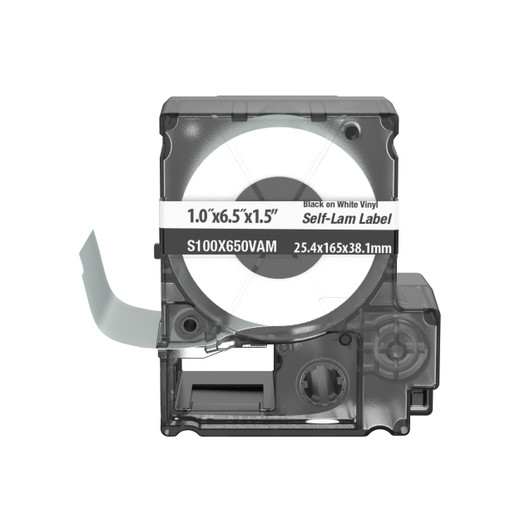

Panduit S100X650VAM PXE Pre-Cut Laminated Vinyl Label Cassette
The Panduit S100X650VAM is an all-in-one label cassette for the MP300 thermal transfer printer, designed for large-gauge conductor identification in electrical and datacenter installations. Each cassette contains 45 pre-cut vinyl labels measuring 1" × 6.5" (25.4 × 165.1 mm) with a white print zone and clear protective laminate, sized for wire and cable from 1/0 to 250 MCM. The integrated cassette design combines label material and ribbon in a single unit for fast changeovers in the field, eliminating manual threading and reducing downtime during high-volume labeling jobs.
Key Features
- All-in-one cassette with integrated label material and ribbon for tool-free installation
- Pre-cut laminated vinyl labels resist abrasion, chemicals, and UV exposure
- 25.4 × 165.1 mm (1" × 6.5") label size fits conductors from 1/0 to 250 MCM
- White print zone with clear protective laminate for high-contrast, durable markings
- 45 labels per cassette for extended run capacity
- Drop-in cassette design for the Panduit MP300 printer
- 38.1 mm print hole offset optimized for wrap-around application on large-gauge cable
- RoHS compliant for regulated installations
The S100X650VAM uses a two-layer laminated construction: a white vinyl base layer accepts thermal transfer ink from the integrated ribbon, then a clear vinyl topcoat bonds over the printed surface during the lamination process. This encapsulates the printed text between layers, protecting against smudging, chemical exposure, and physical wear in high-traffic electrical rooms and outdoor-rated enclosures. The pre-cut format eliminates die-cutting steps and ensures consistent label dimensions across the entire job, critical when labeling parallel conductor runs where visual uniformity signals professional installation quality. The cassette architecture integrates both the label web and the thermal ribbon into a single drop-in unit—when the MP300 completes a cassette, the installer swaps the entire assembly in under 10 seconds without re-threading or ribbon-spool alignment.
Large-gauge conductors in the 1/0 to 250 MCM range appear in service entrance equipment, switchgear feeders, and battery strings for UPS and solar installations. These environments demand labels that survive decades of thermal cycling, vibration, and maintenance contact without delaminating or fading. The 165.1 mm length provides enough wrap-around coverage for conductors up to 600V rated cable jacket diameters, with sufficient print area for circuit designations, phase identifiers, and voltage warnings per NEC 110.22 and NFPA 70E arc flash labeling requirements. Field crews printing labels on-site during rough-in phases benefit from the cassette's portability—five cassettes (225 labels total) fit in a tool bag alongside the MP300, enabling same-day labeling for typical commercial branch panel installations without return trips for material.
RoHS compliance supports installations in municipal and federal facilities where material certifications gate project closeout. The cassette format's all-in-one design reduces consumable SKU counts—rather than stocking separate label rolls and ribbon spools, inventory consists of application-specific cassettes matched to conductor sizes, simplifying procurement and eliminating mismatched material/ribbon combinations that cause print quality failures mid-job. Cross-compatible with Brady M-34-427 for multi-vendor labeling system deployments.
