Panduit S100X220VAC P1 Self-Laminating Label Cassette

The Panduit S100X220VAC delivers professional wire and cable identification with self-laminating thermal transfer technology. Each cassette produces 125 labels measuring 25.4mm × 55.88mm (1" × 2.2"), combining a white vinyl print zone with a transparent protective laminate that wraps around conductors to shield legends from abrasion, chemicals, and UV exposure. The integrated memory chip automatically formats labels, recalls your last legend, and tracks remaining label count—eliminating guesswork during multi-site installations where cassette swaps mid-job can break workflow.

Key Features

• Self-laminating construction: white vinyl print zone + clear protective overlay seals legends against moisture, solvents, and handling wear
• 125 labels per cassette at 25.4mm × 55.88mm—sized for 14–4 AWG wire and small-diameter cable bundles
• Smart cassette memory stores formatting profiles, last-used text, and real-time label inventory
• Thermal transfer printing produces smudge-proof, fade-resistant legends without ribbon waste
• Drop-in compatibility with Panduit LS8E and LS8EQ portable printers
• RoHS-compliant materials meet environmental procurement standards

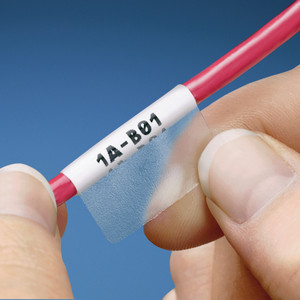

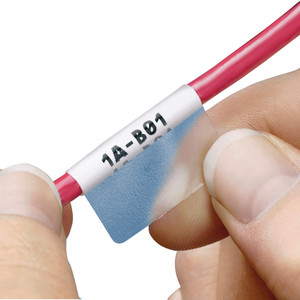

Self-laminating labels solve the core problem of legend durability in harsh environments. Unlike adhesive-only labels that peel or printed sleeves that slide, the S100X220VAC's two-layer design wraps completely around the conductor—the clear laminate section extends beyond the printed area to create a sealed flag that resists pullbox abrasion, conduit friction, and accidental contact with cleaning agents or lubricants common in industrial and data center spaces. The thermal transfer process bonds ink directly into the vinyl substrate, producing legends that won't smear when handled immediately after printing or fade under fluorescent lighting during inspections years later.

The integrated memory chip transforms cassette management for field teams. When you load an S100X220VAC into an LS8E printer, it auto-detects label dimensions and applies the correct print offset—no manual calibration or test prints. The chip also retains your last legend text, so reprinting a panel schedule across multiple enclosures requires one button press instead of re-entering data. Real-time label counting means you know exactly when you're down to your last 10 labels, preventing mid-run stockouts during telecom closet builds or access control retrofits where running to a truck for supplies adds 15 minutes per trip.

At 25.4mm width, these labels suit 14–4 AWG conductors and small Cat6/Cat6A bundles typically found in IP camera home runs, door strike feeders, and low-voltage control circuits. The 55.88mm length provides enough print area for two-line legends—combine circuit ID with destination room or device function without abbreviating to the point of ambiguity. Vinyl material flexes with cable movement in cable trays and maintains adhesion through the -40°C to +150°C temperature swings common in attic-mounted junction boxes or outdoor-rated equipment enclosures. The clear laminate section extends 30mm beyond the printed zone, ensuring full wrap coverage even on irregular-diameter cables or when applied over existing jacket printing.

The S100X220VAC cassette installs in under 5 seconds—slide it into the LS8E's cartridge bay until it clicks, and the printer reads the memory chip to configure print parameters automatically. No calibration strips, no alignment adjustments, no ribbon threading. When the cassette runs empty, the printer alerts you immediately, and swapping in a fresh cartridge resumes your labeling queue without losing formatted text or incrementing serial numbers. This plug-and-print reliability matters during occupied-space retrofits where noise restrictions limit your work window or multi-building projects where you're labeling 400+ circuits across a weekend shutdown.

RoHS compliance ensures the S100X220VAC meets environmental mandates for government, healthcare, and educational contracts that prohibit lead, mercury, and restricted flame retardants. Vinyl's chemical resistance handles accidental exposure to cable pulling lubricants, alcohol-based cleaners, and diesel residue from generator rooms without dissolving adhesive or smudging text. The white background provides high contrast against common cable jacket colors—black, gray, blue—improving readability in low-light spaces like under-floor vaults or behind rack-mounted equipment where troubleshooting happens with a headlamp and no room to reposition.
