Panduit S100X225VAC P1 Self-Laminating Label Cassette
The Panduit S100X225VAC is a self-laminating thermal transfer label cassette engineered for permanent wire and cable identification in commercial, industrial, and data center environments. Each cassette delivers 125 labels measuring 25.4mm × 57.15mm (1" × 2.25"), combining a white vinyl print area with a clear protective laminate overlay that wraps around conductors to shield legends from abrasion, chemicals, and UV exposure. Designed exclusively for Panduit LS8E and LS8EQ portable label printers, the S100X225VAC features integrated cassette memory that auto-formats labels, recalls the last legend printed, and displays the remaining label count — eliminating setup errors and reducing material waste on job sites.
Key Features
- Self-laminating design with white print zone and clear protective wrap for long-term legend durability
- Thermal transfer vinyl construction resists solvents, oils, and outdoor weathering
- Smart cassette memory stores formatting data, last legend, and label inventory count
- 125 labels per cassette, 25.4mm × 57.15mm (1" × 2.25") — optimized for 22–10 AWG wire and small cable bundles
- Drop-in installation for LS8E/LS8EQ printers with automatic media detection
- RoHS compliant for global installation projects

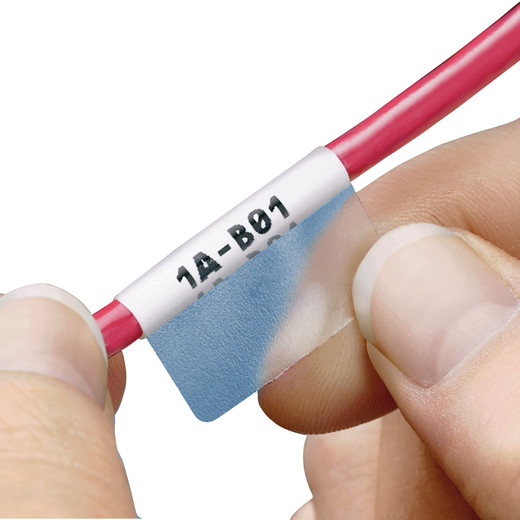

Wire and cable identification is a non-negotiable requirement in structured cabling, industrial control panels, and mission-critical infrastructure — but field-applied labels often fail when exposed to handling, temperature swings, or cleaning solvents. The S100X225VAC addresses this with a two-part laminate construction: the white vinyl base accepts thermal transfer ink for sharp, high-contrast legends, while the overlaminate wraps around the conductor to create a protective seal. This design is especially effective on small-gauge wires where adhesive-only labels can peel or shift during installation. The 25.4mm width accommodates up to three lines of 9-point text or a single line of 18-point type, making it suitable for circuit IDs, room numbers, or asset tags. Installers working on telecom demarcation points, PLC I/O terminations, or AV rack wiring will find the 1" format strikes the ideal balance between readability and real estate — wide enough for detailed legends without excessive bulk on densely packed terminal blocks.
The cassette's integrated memory chip delivers three workflow improvements over generic label stock. First, it auto-configures the LS8E/LS8EQ printer for the correct media size and print density, eliminating manual setup and the test-print waste that comes with trial-and-error formatting. Second, it stores the last legend printed, allowing installers to instantly repeat a label run without re-entering data — critical when labeling both ends of a cable run or marking multiple home-run circuits. Third, the cassette reports its remaining label count to the printer display, giving advance warning before depletion so technicians can stage a replacement cassette before running out mid-job. These features compound their value on large projects: a data center migration involving 2,000+ cable endpoints can see a 15–20% reduction in consumable waste and rework time compared to non-smart media. The cassette's drop-in form factor requires no threading or calibration — installers snap it into the LS8E/LS8EQ's media bay, and the printer's auto-sense confirms compatibility within seconds.
Material composition and environmental resistance separate specification-grade labels from office-supply alternatives. The S100X225VAC uses a plasticized vinyl base that remains flexible across a -40°C to +105°C operating range, preventing brittleness in freezer rooms or embrittlement in HVAC plenums. The thermal transfer printing process bonds resin-based ink into the vinyl surface rather than sitting on top of it, yielding legends that won't smudge under finger oils or abrade during cable pulls. The clear overlaminate is a 1-mil polypropylene film that resists isopropyl alcohol, citrus degreasers, and dilute acids commonly encountered during panel cleaning or equipment commissioning. This laminate also provides measurable UV stability — labels applied to outdoor junction boxes or rooftop equipment maintain legibility for 3+ years under direct sunlight, far exceeding the 6–12 month fade life of direct thermal or inkjet labels. For integrators working under NEC 110.22 (equipment marking) or TIA-606-C (telecom labeling standards), the S100X225VAC's archival durability ensures compliance audits years after installation.
The S100X225VAC ships as a single cassette containing 125 labels, with cartons of 10 cassettes (1,250 total labels) available for project staging. The white-on-clear color scheme maximizes contrast on dark wire jackets and backplanes while maintaining a professional appearance in customer-facing equipment rooms. Competitive cross-reference: this cassette replaces non-OEM TAGH9-100 media, offering guaranteed compatibility and print quality when paired with Panduit's LS8E/LS8EQ printer firmware. Installers managing mixed labeling systems should verify printer model compatibility — the S100X225VAC is not compatible with Panduit's legacy TLS or BMP series printers, which require different cassette formats. For projects requiring alternative dimensions, Panduit's P1 cassette family includes 19mm, 38mm, and continuous-length options, all sharing the same smart-cassette memory architecture and material specifications.
