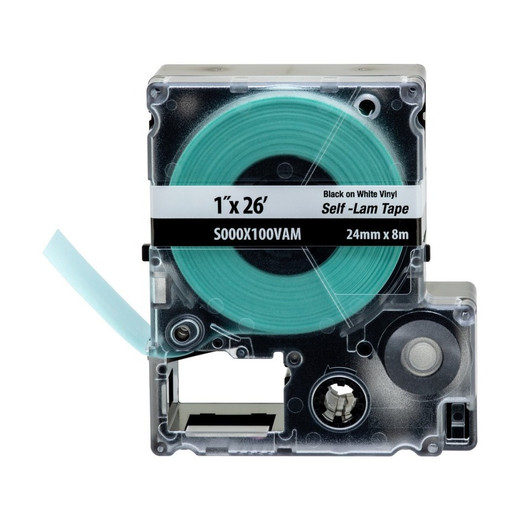

Panduit S000X100VAM PXE™ Self-Laminating Label Cassette

The Panduit S000X100VAM delivers permanent cable identification for commercial installations where labels face abrasion, chemical exposure, and inspection scrutiny. This 1-inch-wide continuous vinyl cassette produces self-laminating labels with a white print area and clear protective overlay, engineered for 12-10 AWG cables in datacenters, electrical panels, and industrial control systems. Compatible with Panduit MP100, MP200, and MP300 printers, the 26-foot roll yields approximately 312 one-inch labels or custom lengths cut to specification, eliminating waste from pre-sized label sheets.

Key Features

Self-laminating vinyl construction with clear protective overlay wraps printed text for abrasion and chemical resistance

1-inch width optimized for 12-10 AWG cable diameters with full-wrap coverage

26-foot continuous roll allows custom label lengths from 0.5 to 5 inches, reducing material waste

White print area with matte finish ensures high-contrast thermal-transfer text readability

Vinyl substrate conforms to curved cable jackets and withstands flexing at termination points

Drop-in cassette design for Panduit MP series printers eliminates threading and calibration

RoHS compliant for export-regulated projects and federal installations

5-cassette package supports install teams running multi-floor cable pulls

The self-laminating construction separates this cassette from paper or polyester tags. After the MP printer applies thermal-transfer text to the white vinyl print area, installers wrap the label around the cable jacket. The clear vinyl tail overlaps the printed section, creating a sealed sleeve that protects alphanumeric codes from hydraulic fluid, isopropyl alcohol, and solvent-based cleaners common in industrial environments. The laminate also shields against UV degradation in outdoor junction boxes and mechanical abrasion where cables pass through grommets or conduit entries. Vinyl's flexibility allows the label to conform tightly to round cable profiles without air gaps or lifting edges that trap moisture. Adhesive performance maintains bond strength across temperature swings from -40°F to 180°F, critical for rooftop telecom enclosures and below-grade vault installations.

Continuous-format cassettes like the S000X100VAM let you match label length to the specific application instead of adapting your workflow to fixed die-cut sizes. A six-character asset tag might need only 0.75 inches, while a full equipment identifier with location code could span 3 inches—the MP printer cuts each label to the exact length required. This approach reduces scrap compared to sheet-fed systems where unused label positions become waste. The 26-foot capacity supports approximately 312 one-inch labels or 104 three-inch labels before cassette replacement, minimizing mid-job reloads during large datacenter deployments. The 5-pack configuration lets install crews stock a vehicle or job trailer with enough consumables for 130 feet of printed labels, sufficient for typical 10-cabinet rack runs or 500-drop structured cabling projects.

The S000X100VAM integrates into Panduit's MP printer ecosystem, which uses RFID-tagged cassettes to auto-detect media width and material type. When you insert this cassette into an MP100, MP200, or MP300 printer, the unit reads the embedded tag and configures print darkness, speed, and cut length without manual parameter entry. This auto-configuration prevents misprints from incorrect settings and ensures consistent label quality across multi-printer fleets. For installers migrating from Brady or HellermannTyton systems, Panduit publishes a cross-reference showing the S000X100VAM as a direct functional equivalent to Brady M21-1000-427 and HellermannTyton MC1-1000-595-CL-WT, though cassette physical interfaces differ and require the corresponding printer platform. RoHS compliance ensures the cassette meets lead-free and restricted-substance directives required for European export projects, federal GSA schedules, and contractors working under LEED material-transparency mandates.
