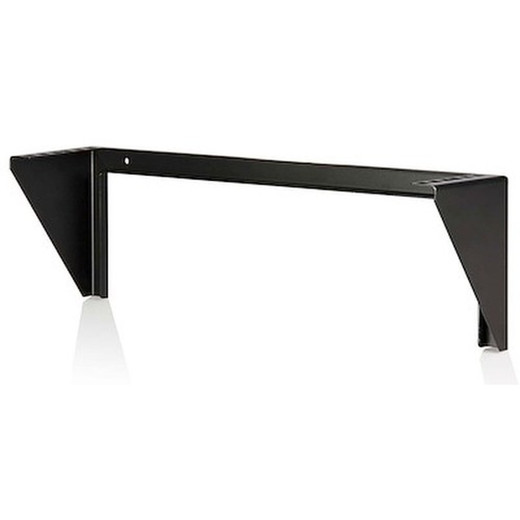

StarTech RK219WALLV 2U 2-Post Open Frame Wall Mount Rack

Overview

The StarTech RK219WALLV is a 2U, 2-post open-frame wall mount rack built for tight spaces where a full-depth cabinet simply won't fit — think IDF closets, small server rooms, retail back-of-house, and wall-mounted network drop points. At 5.9 inches deep and 1.7 lb unloaded, this is a hardware-minimal solution that still handles up to 125 lb of mounted equipment, covering most 1U switches, patch panels, and compact NVRs you'd realistically wall-mount. If you're sourcing StarTech mounting hardware for a distributed IT or security deployment, this rack fits neatly into a structured cabling or edge-compute strategy where rack space is measured in rack units, not rack feet.

Key Features

• 125 lb (56.7 kg) weight capacity: Enough to support a 1U managed PoE switch, a patch panel, and a compact NVR simultaneously — so you're not forced to choose between devices at a remote location or IDF node.
• 2U usable height: Two rack units gives you just enough room for a switch-plus-patch-panel combo or a single 2U appliance. It keeps the footprint minimal on the wall without sacrificing the standardized rack format that your existing 19-inch equipment already expects.
• EIA/ECA-310-E compliant 19-inch rail width (19.8 in / 50.4 cm overall): Any standard 19-inch rackmount device mounts without adapter plates or shimming — reduces installation time and eliminates compatibility guesswork when sourcing equipment for the site.
• L-shaped 2-post mounting rail profile: The L-shape rail geometry provides a stable front-face mount for 1U/2U equipment without requiring rear support rails, keeping the overall depth at just 5.9 inches — critical where wall clearance is the constraint.
• Square hole / cage nut mounting: Industry-standard square-hole pattern means you can use any standard cage nuts, clip nuts, or cage nut tooling already in your kit. No proprietary hardware to source separately.
• Steel construction, black powder coat: Commercial-grade steel frame survives the physical abuse of a working telecom closet. The black finish blends cleanly into structured wiring environments and doesn't show wear the way bare metal does.
• 4.1 in (10.5 cm) installed height, 19.8 in (50.4 cm) width: The compact profile means this rack can be installed on a half-wall or above a door frame where a standard wall cabinet wouldn't clear — useful in retrofits where wall real estate is limited.
• 1.7 lb (0.7 kg) unloaded weight: Light enough that one installer can handle wall positioning and fastening without a second person steadying the unit, reducing labor time on single-tech deployments.
• Lifetime warranty: StarTech backs this rack with a lifetime manufacturer warranty — unusual for passive mounting hardware and a meaningful differentiator when specifying for long-lifecycle infrastructure projects.

Integration and Compatibility

The RK219WALLV accepts any standard 19-inch rackmount equipment conforming to EIA/ECA-310-E — switches, patch panels, fiber enclosures, compact NVRs, KVM units, and UPS modules in 1U or 2U form factors. The square-hole cage nut pattern is compatible with standard M6 cage nuts (not included — source separately based on your equipment's thread spec). Because this is an open-frame design, cable management is entirely manual — plan for horizontal cable managers or D-ring guides if you're running structured cabling through or beside the rack. This rack pairs naturally with PoE network switches destined for remote IDF locations, and is a straightforward complement to compact wall-mount NVR deployments in surveillance edge nodes. For guidance on planning rack density and equipment layout, see the rack planning and capacity guide. If your installation requires deeper equipment or rear cable support, evaluate a 4-post wall-mount option from the StarTech wall-mount rack lineup instead.

Frequently Asked Questions

Q: What is the maximum weight the RK219WALLV can support?

A: The RK219WALLV is rated for 125 lb (56.7 kg) of mounted equipment weight. This is sufficient for most combinations of 1U–2U switches, patch panels, and compact appliances typically wall-mounted in IDF or edge locations.

Q: What rack unit height does the RK219WALLV provide?

A: It provides 2U of usable rack space on a standard 19-inch EIA/ECA-310-E compliant rail. The overall installed height is 4.1 inches (10.5 cm).

Q: Does the RK219WALLV include cage nuts and mounting screws?

A: The rack uses a standard square-hole pattern for cage nut mounting. Cage nuts and rack screws are not confirmed as included in the package based on available product data — verify with your order or source M6 cage nut kits separately.

Q: What is the depth of the RK219WALLV?

A: The rack depth is 5.9 inches (15.1 cm). This is a shallow, 2-post open-frame design — not suited for full-depth 1U servers or deep rack appliances. It is best matched to patch panels, shallow switches, and compact 1U/2U appliances.

Q: What warranty does the RK219WALLV carry?

A: StarTech covers the RK219WALLV with a lifetime manufacturer warranty.

Q: Is the RK219WALLV compatible with standard 19-inch rackmount equipment?

A: Yes. The rails conform to EIA/ECA-310-E standards, so any standard 19-inch rackmount device will fit without adapter plates.

Jerry Tildsen

The RK219WALLV earns a place in my standard IDF-node kit specifically because of two numbers: 5.9 inches of depth and 125 lb of rated capacity. That combination is harder to find than it sounds — most open-frame wall racks in this size class either go too deep for tight closets or cap out at 50–75 lb, which starts to get uncomfortable the moment you stack a managed switch on top of a patch panel. This one handles both constraints cleanly.

Technical Highlights:

• 125 lb load rating: At 56.7 kg rated capacity on a 2U frame, you have enough headroom to mount a 1U PoE switch (typically 8–15 lb) plus a 24-port patch panel (6–10 lb) with substantial margin — no need to derate for combined equipment weight in typical edge deployments.
• 5.9-inch depth: The shallow 2-post profile fits flush in spaces where even a 12-inch-deep wall cabinet won't clear — above door frames, in narrow utility corridors, or in retail POS closets where the stud bay is all you have to work with.
• EIA/ECA-310-E compliance: Standard square-hole rails mean you can pull cage nuts from your existing stock rather than hunting down proprietary hardware. In multi-site rollouts, that standardization matters for truck-stock consistency.

Deployment Considerations:

• The 2-post open-frame design provides no rear rail support — equipment with a center of gravity far behind the front ears (deep 1U servers, large UPS units) should not be mounted here. Stick to patch panels, shallow switches, fiber enclosures, and similarly front-heavy or balanced 1U/2U gear.
• At 4.1 inches tall installed, the RK219WALLV sits tight to the wall surface. Factor in adequate clearance above and below for airflow around any active 1U equipment — in enclosed telecom closets, even a shallow open-frame rack can trap heat if adjacent equipment blocks convection paths.

This rack is the right call for distributed surveillance and IT edge nodes in retail, light commercial, or multi-site enterprise deployments where a single IDF location needs a patch panel and a PoE switch mounted cleanly on the wall without committing floor space or a full wall cabinet. It is not the answer for deep appliances or anything requiring rear cable support rails.
