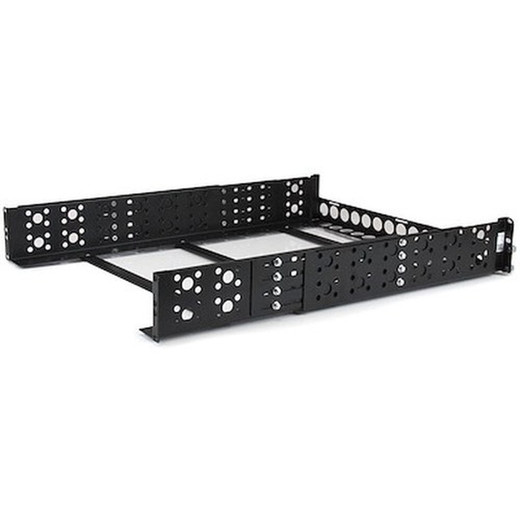

StarTech UNIRAILS2U 2U Universal Sliding Rack Mount Rail Kit

Overview

The StarTech UNIRAILS2U is a 2U universal rack rail kit built for integrators who need a single sliding rail solution that works across a wide range of rack depths and equipment types — servers, NVRs, network switches, and other 19-inch rackmount hardware. Constructed from steel and rated to EIA-310 standards, the UNIRAILS2U adjusts from 16.5 inches to 41.5 inches in mounting depth, covering nearly every cabinet form factor you're likely to encounter in a data closet, telecom room, or security head-end. The lifetime warranty makes it a one-time purchase decision rather than a recurring budget line.

If you're provisioning a rack mount hardware deployment for a surveillance head-end or network infrastructure room, these rails are designed to seat standard 19-inch equipment and handle the kind of weight that matters in practice — up to 99.8 pounds — so you're not shopping for replacements when you swap to a heavier NVR chassis.

Key Features

• 99.8 lb (45.2 kg) Weight Capacity: Handles most 2U server, NVR, and switching hardware without issue. A dense 2U NVR chassis loaded with drives can easily push 30–40 lb — the UNIRAILS2U leaves substantial headroom for heavier appliances and avoids the sag and failure risk of underpowered rails.
• 16.5 in to 41.5 in Adjustable Depth (42 cm to 105.4 cm): This range covers short-depth wall-mount enclosures on the low end and deep two-post or four-post data center racks on the high end. Most security closets and enterprise network rooms fall comfortably within this span, meaning you can use the same rail kit across mixed-depth infrastructure without ordering custom hardware.
• EIA-310 Compliance: The EIA-310 standard governs 19-inch rack equipment dimensions and mounting hole patterns. Compliance means the UNIRAILS2U will align correctly with EIA-310 conformant cabinets from any manufacturer — no adapter plates, no shimming, no rework on-site.
• Steel Construction: Steel rails don't flex or creep under sustained load the way polymer-composite alternatives can. For 24/7 environments where equipment stays in the rack for years, this matters for both safety and drawer alignment.
• 2U Form Factor (3.5 in / 8.9 cm Height): Occupies 2U of rack space, consistent with standard 2U server and appliance chassis. Plan your rack layout accordingly — 2U of clearance is required above or below the installed device depending on cable routing and airflow strategy.
• Product Footprint — 16.5 in L x 18.9 in W x 3.5 in H (42.0 x 48.1 x 8.9 cm): Compact enough to ship and stage easily; the 18.9-inch width accommodates standard 19-inch rack ear-to-ear clearance without protruding into adjacent bays.
• Lifetime Warranty: StarTech's lifetime warranty on the UNIRAILS2U removes the guesswork on longevity. In a head-end or server room context where rails rarely get replaced proactively, this eliminates a maintenance variable entirely.
• 7.7 lb (3.5 kg) Kit Weight: Light enough for a single technician to handle during installation without mechanical lift assist, even in overhead or awkward rack positions.

Integration and Compatibility

The UNIRAILS2U is designed around the 19-inch EIA-310 rack standard, which is the dominant format across commercial IT, telecom, and physical security infrastructure. Any equipment with standard 19-inch rack ears and a 2U chassis height is a candidate — this includes NVRs, managed network switches, access control servers, video management appliances, and general-purpose 1U or 2U servers mounted in a 2U slot configuration.

The mounting depth adjustment range (16.5 in minimum to 41.5 in maximum) makes it compatible with short-depth wall-mount racks common in branch offices and security closets, as well as full-depth four-post data center cabinets. Verify your specific rack's usable depth — some cabinets subtract 2–4 inches for cable managers or patch panels at the rear, which can affect whether the UNIRAILS2U reaches your rail mounting points at maximum extension.

For integrators deploying network video recorders or switching infrastructure as part of a larger surveillance system build-out, these rails pair naturally with standard rack enclosures to complete a clean, serviceable head-end installation. Consult a rack mount planning guide if you're sizing a mixed-depth enclosure for the first time.

Frequently Asked Questions

Q: What rack depth range does the UNIRAILS2U support?

A: The UNIRAILS2U adjusts from a minimum mounting depth of 16.5 inches (42 cm) to a maximum of 41.5 inches (105.4 cm), covering most short-depth wall-mount enclosures through full-depth four-post data center cabinets.

Q: What is the maximum weight the UNIRAILS2U can support?

A: The UNIRAILS2U is rated to support up to 99.8 lb (45.2 kg), which is sufficient for most 2U server, NVR, and network appliance chassis, including those loaded with multiple hard drives.

Q: Is the UNIRAILS2U compatible with all 19-inch racks?

A: The UNIRAILS2U is EIA-310 compliant and designed for standard 19-inch rack enclosures. It should be compatible with any EIA-310 conformant cabinet. Verify your rack's usable interior depth before installation, as cable managers or rear components can reduce available depth.

Q: What is the warranty on the UNIRAILS2U?

A: StarTech covers the UNIRAILS2U with a lifetime warranty.

Q: How many rack units does the UNIRAILS2U occupy?

A: The UNIRAILS2U occupies 2U (3.5 inches / 8.9 cm) of rack height, consistent with standard 2U server and appliance chassis.

Q: What type of equipment can be mounted with the UNIRAILS2U?

A: Any 19-inch wide, 2U rackmount equipment up to 99.8 lb is compatible — including NVRs, managed switches, servers, video management appliances, and access control hardware built to EIA-310 rack standards.

James Everett

The detail I keep coming back to on the UNIRAILS2U is that 25-inch adjustment range — 16.5 inches to 41.5 inches of mounting depth in a single kit. In practice, that means I can pull this rail out of a bag and fit it into a short-depth wall cabinet at a remote branch or a full-depth four-post rack in a data center without ordering two different SKUs. That kind of flexibility matters when you're managing a multi-site rollout and want to keep the parts list tight.

Technical Highlights:

• 99.8 lb Weight Capacity: A fully populated 2U NVR with eight or more hard drives can hit 35–40 lb without much effort. The UNIRAILS2U's 99.8 lb rating means you're not approaching the limit even with dense storage configurations — and you're not worrying about rail deflection over a five-year service life.
• EIA-310 Compliance: This isn't a marketing label — EIA-310 defines the physical interface between the equipment ears and the rack posts. Compliance means the mounting holes align correctly on day one with any conformant cabinet, regardless of manufacturer, without shimming or rework.
• Steel Construction at 7.7 lb Kit Weight: Steel gives you the structural rigidity to hold load without creep, but at 7.7 lb the kit is still manageable for a single technician working in a crowded rack row. That's a reasonable balance for a commercial-grade rail.

Deployment Considerations:

• Confirm your rack's usable interior depth before ordering — rear cable managers, PDU mounts, and brush strips can subtract 2–4 inches from the nominal cabinet depth, which affects where the rails actually seat at the rear posts. At 41.5 inches maximum, the UNIRAILS2U covers most standard cabinets, but measure before you order if you're working at the margins.
• The 2U height designation means you need a 2U equipment chassis to use these rails as intended — don't plan on using them for a 1U appliance without confirming the chassis has 2U mounting ears.

The UNIRAILS2U earns its place in a security head-end build-out where the rack lineup includes a mix of NVR appliances, managed PoE switches, and access control servers — all 2U, all 19-inch, all varying in chassis depth depending on vendor. One rail kit SKU across the board simplifies procurement and keeps the spare parts shelf manageable.
