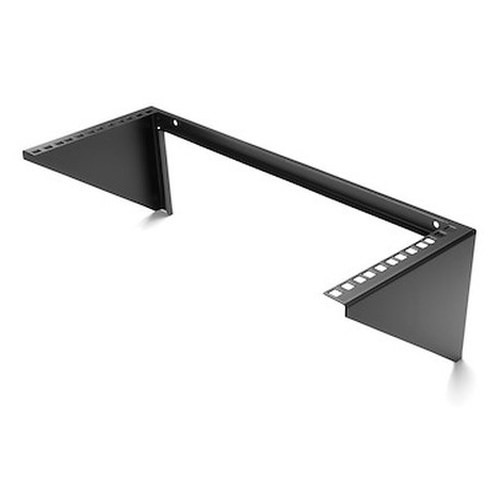

StarTech RK419WALLV 4U Open-Frame Wall Mount Rack

Overview

The StarTech RK419WALLV is a 4U open-frame wall mount rack designed for mounting servers, network switches, patch panels, and telecommunications equipment in space-constrained environments where a full floor-standing cabinet is impractical. Built to EIA/ECA-310-E standards, it accepts standard 19-inch rackmount gear and uses square-hole cage nut mounting rails — meaning virtually any enterprise-grade equipment you already own will drop straight in without adapters. At just 2.4 lb, the RK419WALLV itself imposes minimal load on your wall structure while supporting up to 125 lb (56.7 kg) of installed equipment — enough headroom for a PoE switch, patch panel, and a small NVR simultaneously. If you're planning a network camera deployment in a remote IDF closet, utility room, or above a dropped ceiling, this is the rack that keeps your infrastructure organized without consuming floor space.

Key Features

• 125 lb (56.7 kg) Load Capacity: Enough to support a fully loaded 4U configuration — think a managed PoE switch, a 4- or 8-channel NVR, and a patch panel — without requiring a full wall cabinet. Verify your wall stud or concrete anchor rating before install; the rack won't be the weak link.
• 4U Rack Height: Four rack units of usable space is the practical minimum for a standalone IDF node or remote surveillance head-end. You can fit a 1U switch, 1U patch panel, 1U NVR, and still have a spare unit for a power strip or UPS shelf. If you need more vertical real estate, assess your wall space before committing to this size.
• EIA/ECA-310-E Compliance: This is the governing standard for 19-inch rack equipment dimensions. Compliance means the rail spacing, hole pitch, and unit height all match what every major switch, router, and NVR manufacturer certifies against — no guesswork, no shimming.
• Square-Hole Cage Nut Rails: The L-shape mounting rail profile accepts standard M6 cage nuts, which are the most common fastener type across Cisco, HPE, Ubiquiti, and virtually all enterprise rack equipment. If your gear ships with cage nuts, it installs directly. If not, a standard M6 cage nut kit covers you.
• Steel Construction in Black: Cold-rolled steel construction resists flex under sustained load — relevant when a 20+ lb switch is cantilevered off a wall. The black finish reduces visual impact in finished spaces like server rooms, retail back-of-house, or telecom closets.
• 2-Post Open Frame Design: Open frame means no enclosure panels blocking airflow — equipment runs cooler without forced ventilation. It also means faster access: no doors to open, no side panels to remove. Drawback: no physical security barrier, so assess your installation environment accordingly.
• Compact Footprint (19.8 x 7.6 x 5.9 in): The 5.9-inch depth (15.1 cm) means the RK419WALLV protrudes less than 6 inches from the wall surface. Shallow-depth switches and patch panels fit without issue; deeper 1U servers or full-depth appliances will overhang — check your equipment depth before ordering.
• Lifetime Hardware Warranty: StarTech backs this rack with a lifetime warranty, which matters for infrastructure that gets installed and forgotten for a decade. Passive steel hardware should last indefinitely under normal conditions, and the warranty reflects that.

Integration and Compatibility

The RK419WALLV is compatible with any standard 19-inch rackmount equipment that uses square-hole cage nut mounting — the dominant standard across network switches, patch panels, network video recorders, fiber distribution units, and telecom gear. The EIA/ECA-310-E rail spacing means you can verify fit against any manufacturer's rack mount specification without field-measuring. This rack is a natural pairing with PoE switches used as the network backbone for IP camera deployments, keeping the entire local node — switch, NVR, and termination — consolidated on one wall surface. Review our rack planning guide if you're sizing out a multi-site deployment where each location needs a compact, self-contained equipment cluster. For larger installations requiring more than 4U, consider moving to a wall-mount cabinet or a deeper open-frame rack from the StarTech rack solutions line.

Frequently Asked Questions

Q: What is the maximum weight the RK419WALLV can support?

A: The RK419WALLV is rated to support up to 125 lb (56.7 kg) of installed equipment. Note that your wall anchor or stud mounting must independently support the combined weight of the rack (2.4 lb) plus the full equipment load.

Q: What size equipment fits in the RK419WALLV?

A: The RK419WALLV accepts standard 19-inch rackmount equipment using square-hole cage nut mounting rails. It provides 4U of vertical rack space. Equipment depth is a practical consideration — the rack itself is 5.9 inches deep, so deep appliances will extend beyond the rail depth.

Q: Does the RK419WALLV use square-hole or round-hole rails?

A: Square-hole rails with cage nut compatibility. This is the standard for enterprise network and server equipment. M6 cage nuts (sold separately if not included with your equipment) are the correct fastener type.

Q: What is the warranty on the RK419WALLV?

A: StarTech provides a lifetime hardware warranty on the RK419WALLV.

Q: Is the RK419WALLV compliant with industry rack standards?

A: Yes. The RK419WALLV is compliant with EIA/ECA-310-E, the governing standard for 19-inch rackmount equipment. This ensures dimensional compatibility with virtually all commercial-grade switches, patch panels, NVRs, and telecom gear.

Q: Can the RK419WALLV be used in a surveillance equipment installation?

A: Yes. It is well-suited for mounting a compact NVR, PoE switch, and patch panel in a single wall-mounted cluster — a common configuration for remote IDF nodes or small-site surveillance head-ends. Verify that your NVR and switch are shallow enough (under roughly 12–14 inches depth) to mount without excessive overhang.

Ted Perry

The RK419WALLV earns its place in surveillance and network infrastructure deployments primarily because of one spec most buyers overlook until it bites them: the 5.9-inch rack depth. That 5.9 inches is the depth of the rail frame itself — not a recommendation for equipment depth. I've seen integrators order this for a small utility closet, then discover their NVR is 14 inches deep and ends up cantilevered awkwardly past the rails. Know your equipment depth before you order, and the RK419WALLV is a genuinely clean solution.

Technical Highlights:

• 125 lb Load Rating: More than sufficient for a typical 4U surveillance node — a 1U managed PoE switch at roughly 8–10 lb, a 4- or 8-channel NVR at 10–15 lb, and a 1U patch panel still leaves you with 100 lb of margin. The rack structure is not your load constraint; your wall anchor is.
• EIA/ECA-310-E Compliance: Every enterprise switch, patch panel, and NVR I've deployed in the last decade specifies EIA-310 rack compatibility. This standard guarantees the hole pitch and rail spacing match — you're not improvising the fit.
• Lifetime Hardware Warranty: Passive steel infrastructure with a lifetime warranty is exactly what you want for equipment that gets bolted to a wall and ignored for years. No maintenance, no firmware, no expiring support contracts.

Deployment Considerations:

• The 2-post open-frame design provides zero physical security — anyone with access to the space can touch the equipment. In public-facing or unsecured rooms, pair this with a locked IDF closet or consider a wall-mount cabinet instead.
• At 19.8 inches wide and 7.6 inches tall, confirm your wall surface has at least two studs (or a solid concrete span) within that footprint. A single-stud mount carrying 125 lb of equipment is undersized — most installers use a plywood backer board or locate two studs for proper load distribution.

For a remote surveillance IDF node in a back-of-house utility room — housing a 1U PoE switch feeding 4–8 cameras, a compact NVR, and a patch panel — the RK419WALLV is the right-sized, standards-compliant solution that keeps the entire node on one wall surface without consuming any floor space.
