StarTech UNIRAILS3U 3U Universal Sliding Rack Mount Rails

Overview

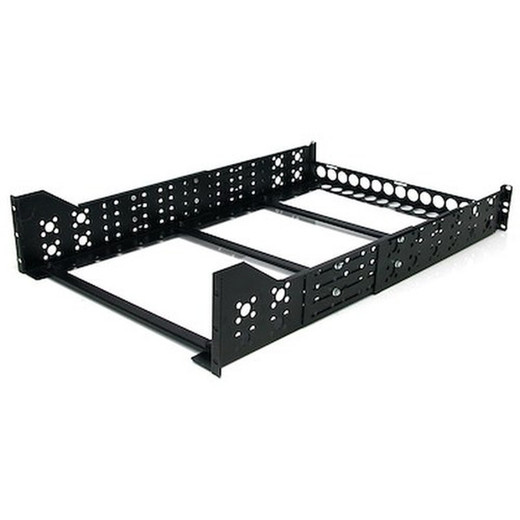

The StarTech UNIRAILS3U is a pair of 3U universal rack rails designed to mount servers, networking hardware, NVRs, and other rackmount equipment in any standard 19-inch rack. Built from commercial-grade steel, these rails adjust from 16.5 inches to 41.5 inches in mounting depth, making them a practical fit for everything from shallow wall-mount enclosures to deep two-post or four-post open-frame racks. At 214.5 lb rated capacity, the UNIRAILS3U handles dense 1U and 2U servers without reservation — and at just 7.9 lb of rail hardware, they add minimal overhead to your rack's total load budget.

If you manage a mixed rack environment where equipment arrives from multiple vendors with varying mounting geometries, universal rails eliminate the compatibility guesswork that vendor-specific sliding rails introduce. The UNIRAILS3U is built for exactly that scenario.

Key Features

• 214.5 lb (97.3 kg) weight capacity: Dense 1U and 2U servers — including dual-PSU storage nodes that push 30–40 lb each — mount without needing supplemental support. You can stack multiple heavy units in a single 3U footprint without worrying about rail deflection under load.
• 16.5 in to 41.5 in adjustable mounting depth: That 25-inch adjustment range covers the overwhelming majority of rack form factors deployed in the field — from 18-inch-deep wall enclosures to 42-inch-deep floor-standing open-frame racks. Measure your rack depth before ordering, but chances are the UNIRAILS3U already fits.
• 3U form factor (5.2 in tall): Three rack units of vertical space accommodates most 1U and 2U servers with clearance, and the 5.2-inch height keeps cabling accessible above and below the mounted equipment. If you're mounting a 2U chassis, this is the correct rail height to specify.
• 19-inch standard width (19.0 in / 48.2 cm): Drops into any EIA-310-compliant 19-inch rack without modification. No adapters, no custom drilling — align to the rack posts and secure.
• 19.5-inch rail length (49.5 cm): The rail body itself extends to 19.5 inches, providing adequate overlap and rigidity when extended to deeper rack positions. Longer contact surface means less flex at maximum extension depth.
• Commercial-grade steel construction: Steel rails resist the flex and creep that lighter alloy or plastic-composite alternatives develop over time under constant load. For permanent rack installations carrying production workloads or surveillance NVRs running 24/7, material rigidity is not a trivial spec.
• Lifetime warranty: StarTech backs the UNIRAILS3U with a lifetime warranty — notable for rack hardware that typically sees infrequent but rough handling during installs and migrations. If a rail fails under normal use, replacement is covered without a per-incident fee or support contract.
• Universal compatibility design: The adjustable geometry means these rails are not tied to a single chassis vendor or rack manufacturer. Mix-and-match deployments across Dell, HPE, Supermicro, or generic white-box hardware in the same rack are all viable without ordering model-specific rail kits.

Integration and Compatibility

The UNIRAILS3U targets standard EIA-310 19-inch rack enclosures — two-post relay racks, four-post open frames, and enclosed cabinet racks are all valid deployment targets provided the internal depth falls between 16.5 and 41.5 inches. Verify your rack's usable internal depth (post-to-post, not cabinet outer dimension) before purchasing.

For network video recorders and network switches deployed in surveillance or IT closets, universal rails like the UNIRAILS3U simplify refresh cycles — when you swap an NVR or switch to a different vendor's model, the rails stay in place. That matters when you're managing a rack with a five-to-seven year equipment lifecycle and don't want to re-source rail hardware with every refresh.

Integrators building out rackmount infrastructure for multi-site deployments benefit from standardizing on a single adjustable rail SKU rather than maintaining a shelf of vendor-specific rail kits. The UNIRAILS3U supports that standardization without sacrificing load capacity. For deeper guidance on rack planning for surveillance and IT infrastructure, the server rack buying guide covers post spacing, depth selection, and load distribution across mixed hardware environments.

Frequently Asked Questions

Q: What rack depths does the UNIRAILS3U support?

A: The UNIRAILS3U adjusts from a minimum mounting depth of 16.5 inches (42 cm) to a maximum of 41.5 inches (105.4 cm), covering most standard two-post and four-post rack enclosures.

Q: What is the maximum weight the UNIRAILS3U can hold?

A: The rated weight capacity is 214.5 lb (97.3 kg), sufficient for dense dual-PSU servers and storage appliances typically deployed in enterprise and surveillance environments.

Q: Will the UNIRAILS3U fit a standard 19-inch rack?

A: Yes. The UNIRAILS3U is 19.0 inches wide and is designed for EIA-310-compliant 19-inch rack enclosures. No adapters or modifications are required for standard rack posts.

Q: How much vertical rack space does the UNIRAILS3U occupy?

A: The UNIRAILS3U occupies 3U of vertical rack space (5.2 inches / 13.3 cm in height), which accommodates most 1U and 2U rackmount chassis.

Q: What is the warranty on the UNIRAILS3U?

A: StarTech provides a lifetime warranty on the UNIRAILS3U.

Q: What material are the UNIRAILS3U rails made from?

A: The rails are constructed from steel, providing the rigidity and load-bearing durability needed for permanent production rack installations.

Karl Wilson

The spec that matters most on the UNIRAILS3U is the 25-inch adjustment range — 16.5 to 41.5 inches of usable mounting depth in a single SKU. In my experience, the majority of rack compatibility problems on mixed-vendor deployments come down to rail kits that only cover a narrow depth window, forcing you to stock multiple part numbers or improvise. The UNIRAILS3U eliminates that problem for most real-world rack enclosures you'll encounter on a commercial or enterprise site.

Technical Highlights:

• 214.5 lb weight capacity: Handles dual-PSU 2U servers comfortably — most production servers in this class run 25–40 lb, so you have significant headroom before approaching the rated limit.
• Steel construction: Under sustained load in a production rack that may not be touched for years, steel maintains its geometry. Lighter rail materials develop flex over time, particularly at maximum extension depth near the 41.5-inch limit.
• Lifetime warranty: For rack infrastructure that gets installed and largely forgotten, a lifetime warranty means you're not repricing hardware replacement into your maintenance budget. That has real value in 10-year facility deployments.

Deployment Considerations:

• Always measure your rack's internal post-to-post depth — not the cabinet's outer dimension. A 42U floor cabinet may have anywhere from 28 to 40 inches of usable depth depending on manufacturer; confirm before assuming the UNIRAILS3U reaches both posts.
• The 3U height means you cannot use these rails for 4U or taller chassis without supplemental support — match rail height to the chassis U-height you're mounting, or use front-post shelf support for odd-height equipment.

For surveillance integrators standardizing rack infrastructure across multiple client sites — each with different enclosure vendors and depths — the UNIRAILS3U is the rail to specify when you want one SKU that works in an 18-inch wall box and a 42-inch floor cabinet without a second order.
