StarTech PEX4SFF8639 U.2 NVMe SSD to PCIe x4 Host Adapter

Overview

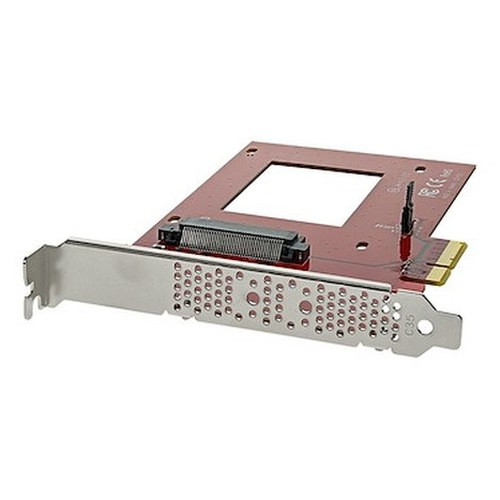

The StarTech PEX4SFF8639 solves a specific mechanical problem: U.2 (SFF-8639) NVMe SSDs are enterprise-grade storage devices — but they require a dedicated U.2 backplane or controller to function. Most desktop workstations and servers with open PCIe slots have no such backplane. This adapter bridges that gap, converting a PCIe x4 slot into a functional U.2 host port so you can deploy a 2.5-inch U.2 NVMe drive without modifying your server chassis or sourcing a purpose-built U.2 system. At 2.3 oz and full-length card dimensions of 6.5 × 4.8 × 0.9 inches, it installs cleanly into a standard half-height or full-height PCIe slot with no tools beyond a screwdriver.

This is not a RAID card, a HBA, or a caching controller — it is a passive signal adapter. The PCIe lanes from your motherboard or host bus connect directly to the SFF-8639 connector on the card. Performance is determined entirely by your drive and platform, not by adapter overhead. For architects planning NVR storage tiers or workstation-class surveillance servers, that passthrough architecture matters: there is no firmware to update, no driver stack to manage, and no controller to fail independently of the drive itself.

Key Features

• PCIe x4 Host Interface: The single PCIe x4 slot connector gives U.2 NVMe drives the full bandwidth they were designed for. Unlike SATA or SAS adapters that would bottleneck an NVMe drive, the PCIe x4 interface keeps the high-throughput path intact — critical if you are using the drive for video ingest, analytics scratch storage, or database workloads on a surveillance server.
• SFF-8639 (U.2) Drive Connector: The onboard U.2 connector accepts standard 2.5-inch enterprise SSDs using the SFF-8639 interface. This is the same connector used in hyperscaler and enterprise server environments, so you are not limited to consumer-grade M.2 form factors or proprietary drive sleds.
• Multi-Height Drive Support (5mm / 7mm / 9.5mm / 12.5mm / 15mm): U.2 drives ship in a range of z-heights depending on NAND configuration and capacitor backup components. Supporting all five standard heights means you are not locked into a single drive generation — whether you are deploying a slim 5mm read-optimized SSD or a 15mm write-intensive enterprise drive with power-loss protection capacitors, the adapter accommodates it without shimming or modification.
• Activity LED Indicator: The single activity LED gives you a visual confirmation that the drive is being accessed — useful during initial deployment and diagnostics without needing to open a VMS dashboard or run a disk utility just to confirm the drive is alive.
• OS-Independent Operation: Because this is a passive PCIe-to-U.2 adapter with no onboard controller, the host OS sees only the NVMe drive — not an adapter with its own driver requirements. Windows Server, Linux distributions, VMware ESXi, and other hypervisors that support NVMe natively will recognize the drive without additional drivers for the PEX4SFF8639 itself.
• Steel Construction: The PCB bracket and retention hardware are steel, not plastic — relevant in server environments where cards are handled during drive swaps and the bracket needs to survive repeated installation cycles without deforming around the slot retention screw.
• Compact Low-Profile Compatible Dimensions: At 6.5 inches long and 4.8 inches wide, the card fits standard PCIe slot envelopes. The 0.9-inch height keeps it clear of adjacent cards in dense multi-slot configurations.
• Operating Temperature Range (5°C–50°C / 41°F–122°F): Rated for the thermal environment of a conditioned server room or workstation enclosure. Not rated for industrial or outdoor deployment — plan accordingly if the host system operates in an unconditioned space.

Integration and Compatibility

The PEX4SFF8639 is compatible with any system that exposes a PCIe x4 or wider slot (x8 and x16 slots will accept a x4 card electrically). The adapter passes PCIe lanes directly to the U.2 drive, so NVMe support must exist at the platform level — confirm your motherboard or server's PCIe slot supports NVMe boot or NVMe data drives before deploying. Most Intel and AMD server platforms from the last several generations support NVMe natively; older platforms may require BIOS updates or may support the drive only as a data volume rather than a boot device.

For IP camera deployments where the surveillance server needs fast local storage for edge buffering, analytics inference caching, or high-bitrate recording, pairing this adapter with a high-endurance U.2 NVMe drive provides a significantly more reliable write path than consumer SATA SSDs — U.2 enterprise drives are rated for far higher drive writes per day (DWPD) than consumer alternatives. Consult your storage planning guide to match drive endurance ratings to your expected daily write volume before purchasing the drive itself.

Storage temperature range of -25°C to 70°C (-13°F to 158°F) means the adapter can be warehoused or shipped in uncontrolled environments without risk to the hardware.

Frequently Asked Questions

Q: What drive interface does the PEX4SFF8639 support?

A: It supports U.2 drives using the SFF-8639 connector with PCIe/NVMe signaling. It does not support SAS or SATA U.2 variants — confirm your drive is NVMe/PCIe before ordering.

Q: What PCIe slot does this adapter require?

A: The PEX4SFF8639 uses a PCIe x4 host connector. It will also fit physically into x8 and x16 slots, which are electrically compatible with x4 cards.

Q: What drive heights are supported?

A: The adapter supports 2.5-inch U.2 drives in 5mm, 7mm, 9.5mm, 12.5mm, and 15mm z-heights — covering the full range of enterprise U.2 SSD form factors.

Q: Does this adapter require drivers?

A: No. The PEX4SFF8639 is a passive signal adapter with no onboard controller. It is OS-independent — any operating system with native NVMe support will recognize the connected drive without additional adapter drivers.

Q: What is the warranty on the PEX4SFF8639?

A: StarTech covers the PEX4SFF8639 with a 2-year manufacturer warranty.

Q: Can this adapter be used in a server rack environment?

A: Yes, provided the server has an available PCIe x4 or wider slot and the operating environment stays within 5°C–50°C. The steel bracket construction handles repeated installation cycles without deforming.

Marty Allison

The detail I keep coming back to on the PEX4SFF8639 is that multi-height support — 5mm through 15mm. In practice, U.2 enterprise drives vary substantially in z-height depending on whether they carry power-loss protection capacitors or high-density NAND stacks, and a lot of adapters force you to match a specific drive generation. This one doesn't, which matters when you're sourcing drives across procurement cycles where exact SKU availability shifts.

Technical Highlights:

• Passive PCIe x4 Architecture: No onboard controller means zero adapter-introduced latency and no firmware dependency — the NVMe drive communicates directly with the host CPU over PCIe lanes. For surveillance analytics servers where consistent low-latency storage access matters, that passthrough path is preferable to any controller-in-the-middle design.
• Full Drive Height Range (5mm–15mm): Covers every standard 2.5-inch U.2 enterprise SSD form factor in production today — you won't be locked out of a high-endurance 15mm drive with PLPCs just because of adapter geometry.
• Operating Temperature 5°C–50°C: Keeps this squarely in the conditioned server room envelope. Not a field-deployment component — it belongs inside a rack chassis with proper airflow, not in a remote hardened enclosure.

Deployment Considerations:

• Confirm NVMe support at the platform BIOS level before deploying — particularly on older server generations where PCIe slots may be present but NVMe boot or bifurcation support requires a firmware update or may not exist at all.
• This adapter weighs only 2.3 oz and measures 6.5 × 4.8 × 0.9 inches — it fits standard slot envelopes, but verify half-height vs. full-height bracket compatibility with your specific chassis before mounting.

The PEX4SFF8639 is the right call when you are building or expanding a workstation-class surveillance recording server that has open PCIe slots but no U.2 backplane — specifically where you need enterprise-grade NVMe write endurance for continuous multi-camera recording and want to source the drive independently of the adapter.
