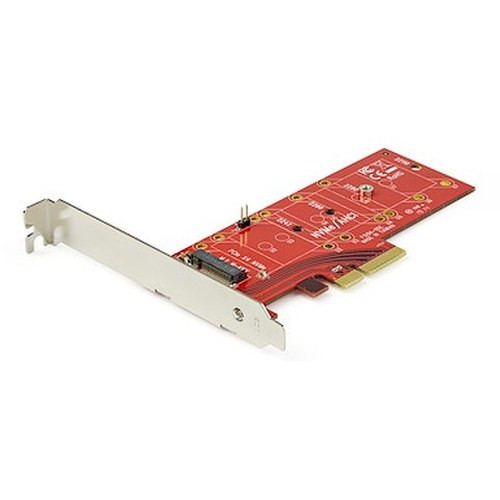

StarTech PEX4M2E1 M.2 PCIe NVMe/AHCI SSD Adapter for PCI Express x4

Overview

The StarTech PEX4M2E1 is a single-slot PCIe adapter that lets you install an M.2 NVMe or AHCI SSD into any available PCI Express x4 (or wider) slot — a practical solution when you need to add fast solid-state storage to a desktop workstation, server, or NVR chassis that lacks a native M.2 slot. It supports PCIe 3.0 at 8 Gbps per lane, which means the full bandwidth available to your M.2 drive is preserved without a bottleneck at the adapter itself. Whether you are expanding storage on a video surveillance workstation or recovering functionality from a motherboard with failed M.2 traces, the PEX4M2E1 gets the job done with minimal complexity.

Key Features

• PCIe 3.0 x4 host interface (8 Gbps): The adapter operates at PCIe 3.0 speeds, delivering up to 8 Gbps of bandwidth across the x4 slot. For NVMe drives capable of sequential reads above 3,000 MB/s, the slot is the limiting factor — but for typical workstation and NVR storage workloads, PCIe 3.0 x4 provides more than enough throughput to avoid any real-world bottleneck.
• Supports both NVMe and AHCI M.2 drives: Not every M.2 SSD is NVMe — many enterprise and prosumer drives still use the AHCI protocol over PCIe. The PEX4M2E1 handles both, so you are not locked into a single drive specification. Useful when you are standardizing on a mix of drive generations across a fleet of machines.
• M-Key M.2 connector (NGFF): The onboard M.2 socket uses the M-Key edge connector, which is the correct form for PCIe-based drives. B-Key and B+M-Key SATA M.2 drives will not work here — this adapter is strictly for PCIe-protocol drives, which is the right assumption for any performance storage application.
• Drive length support from 2242 to 22110: The adapter accommodates M.2 drives in 2242 (42 mm), 2260 (60 mm), 2280 (80 mm), and 22110 (110 mm) lengths — the widest range in the standard lineup. The 22110 length in particular is used by enterprise-class drives with higher capacities; having that standoff position available means you are not forced into a consumer-length drive when deploying high-capacity surveillance storage.
• Low-profile card dimensions (135 x 80 x 4 mm, 47 g): At 47 grams and just 4 mm thick, the adapter adds negligible weight and occupies only a single slot. In tight rackmount or compact tower systems where airflow and slot spacing matter, this footprint keeps options open for neighboring cards.
• Operating temperature 5°C to 50°C: Rated for standard indoor commercial environments. In a properly ventilated equipment rack or workstation chassis, this range is not a constraint. In poorly ventilated enclosures or industrial edge deployments running above 50°C ambient, plan accordingly — the drive itself may have a wider thermal envelope, but the adapter sets the ceiling.
• 2-year warranty: StarTech backs the PEX4M2E1 with a 2-year manufacturer warranty, which aligns with typical adapter hardware lifecycles in commercial deployments.

Integration and Compatibility

The PEX4M2E1 fits any motherboard or riser card with a PCIe x4, x8, or x16 slot — electrically x4, so wider slots work fine. It does not require additional power connectors; the drive is powered entirely through the PCIe slot, which simplifies installation in servers or workstations where spare SATA or Molex connectors may not be nearby. Compatibility depends on the host system's BIOS or UEFI supporting NVMe boot (if boot use is intended) — confirm your system firmware supports NVMe before purchasing for a primary boot drive role. For secondary or storage-only use, standard OS support handles the rest. This adapter is commonly deployed in network video recorders and surveillance workstations where the primary board lacks sufficient M.2 slots for expanding video retention storage. It also suits IT infrastructure scenarios where a managed network switch controller workstation needs expanded local storage. For buyers selecting drives to pair with this adapter, an M.2 NVMe SSD in the 2280 or 22110 form factor is the most common pairing. If you are planning storage architecture for a multi-camera deployment, the surveillance storage planning guide covers retention calculations worth reviewing before committing to a drive capacity. For full system context, browse the broader StarTech connectivity and infrastructure catalog.

Frequently Asked Questions

Q: Does the PEX4M2E1 support SATA M.2 drives?

A: No. The PEX4M2E1 supports only PCIe-protocol M.2 drives (NVMe or AHCI over PCIe). SATA-based M.2 drives use a different electrical interface and will not function with this adapter.

Q: Can I use the PEX4M2E1 as a boot drive adapter?

A: Potentially, but it depends on your system's UEFI/BIOS. The host system must support NVMe boot from a PCIe add-in card. Many modern systems do, but you should confirm in your motherboard documentation before purchasing for boot use.

Q: What is the longest M.2 drive the PEX4M2E1 supports?

A: The adapter supports M.2 drives up to 110 mm in length (22110 form factor), in addition to 2242, 2260, and 2280 lengths.

Q: Does the PEX4M2E1 require a separate power connector?

A: No. The drive is powered through the PCIe slot itself. No additional SATA or Molex power cable is needed.

Q: What PCIe slot sizes does this adapter fit?

A: The PEX4M2E1 is electrically x4 but physically fits in any PCIe x4, x8, or x16 slot. It will not fit a PCIe x1 slot.

Q: What is the warranty on the PEX4M2E1?

A: StarTech provides a 2-year manufacturer warranty on the PEX4M2E1.

Eden Phillips

The detail I find most relevant when speccing the PEX4M2E1 for surveillance storage expansions is the 22110 standoff support — that 110 mm drive length is where most of the higher-density enterprise NVMe options live, and having a PCIe x4 adapter that physically accommodates them without forcing a compromise to a shorter, lower-capacity 2280 drive saves a slot and a purchasing headache in the same move.

Technical Highlights:

• PCIe 3.0 x4 (8 Gbps): Preserves the drive's native bandwidth — no adapter-introduced bottleneck for typical NVR write workloads, which rarely saturate even a single PCIe 3.0 lane at sustained camera counts under 64 streams.
• Dual-protocol M.2 support (NVMe + AHCI): Allows deployment with both current NVMe drives and older AHCI-over-PCIe drives, which matters in environments where drive inventory is mixed across refresh cycles.
• Slot compatibility (x4/x8/x16): Fits most workstation and server form factors without a riser or adapter — x8 and x16 slots accept it electrically and physically without modification.

Deployment Considerations:

• Confirm UEFI/BIOS NVMe support before using as a primary boot device — not all legacy server boards enumerate PCIe add-in NVMe devices at POST.
• Operating temperature ceiling is 50°C; in a poorly ventilated rack with high drive thermal output, the adapter environment can approach this — factor in chassis airflow before deployment in tight edge enclosures.

The PEX4M2E1 is a practical fit for video surveillance workstations or NVR builds on motherboards with no available M.2 slot, particularly where a 22110-length high-capacity NVMe drive is the target storage medium for 30-day or longer video retention pools.
