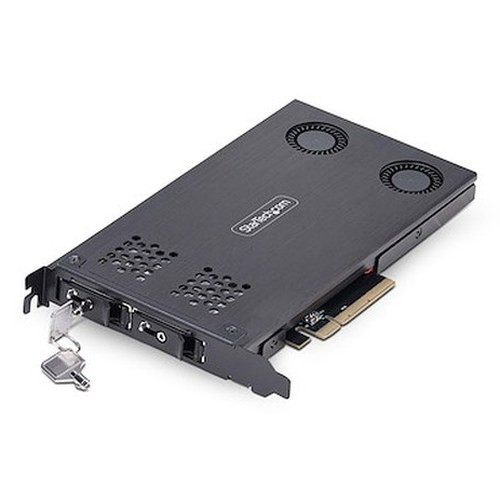

StarTech 2M2-REMOVABLE-PCIE Dual-Bay M.2 NVMe to PCIe x8 Removable Mobile Rack

Overview

The StarTech 2M2-REMOVABLE-PCIE is a dual-bay M.2 NVMe SSD carrier that installs into a standard PCIe x8 slot and exposes both drives directly to the host bus — no RAID controller, no driver stack, no overhead. If you need to add high-speed removable storage to a workstation or server without touching the OS, this is a direct path to do it. The card supports M.2 form factors from 2230 through 2280, accommodates M-Key NVMe drives over PCIe x4 per slot, and aggregates to a maximum theoretical bandwidth of 128Gbps across both bays under PCIe 4.0. One requirement that must be confirmed before ordering: your motherboard or host adapter must support PCIe bifurcation to split the x8 slot into two independent x4 lanes — without that, the second drive will not be recognized. Check your UEFI/BIOS settings before deployment.

Key Features

• 128Gbps Aggregate Bandwidth: Running two PCIe 4.0 x4 NVMe drives simultaneously, the 2M2-REMOVABLE-PCIE can sustain up to 128Gbps of total throughput. That headroom matters in video-intensive environments — think simultaneous write streams from multiple high-bitrate cameras or parallel read/write during AI inferencing workloads.
• PCIe 4.0 Interface via Single x8 Slot: The card slots into any standard PCIe x8 physical slot, making it compatible with current-generation server and workstation platforms without occupying two separate slots. One slot consumed, two NVMe drives added.
• Dual M.2 Drive Connectors (M-Key, PCIe x4): Each bay runs an independent M-Key M.2 connector wired for PCIe x4 — not SATA bridged, not shared bandwidth. Both drives operate at full rated speed simultaneously, which is the meaningful difference versus cheaper shared-bus adapters.
• Multi-Length M.2 Support (2230–2280): The bays accept 2230, 2242, 2260, and 2280 drives. This matters if you're sourcing drives from surplus or mixing form factors across a fleet — you're not locked to a single drive size.
• Removable Mobile Rack Design: The drives mount in a removable carrier tray rather than being directly soldered or permanently fixed. For environments where drives need to be swapped for maintenance, capacity upgrades, or chain-of-custody data handling, the removable form factor cuts the time to exchange media significantly.
• Bus-Powered, No External Power Required: The card draws all operating power from the PCIe slot itself. No SATA power dongle, no auxiliary connector to route. This keeps cable management clean in dense rack environments and eliminates one failure point.
• No Drivers Required: The card is recognized natively by the OS — Windows, Linux, and compatible platforms enumerate the NVMe drives without installing any additional software. Deployment is plug-and-configure, not plug-and-troubleshoot.
• 40,000-Hour MTBF: The rated mean time between failures of 40,000 hours reflects the reliability expectation for commercial continuous-use deployments — relevant if you're planning to run these systems unattended in edge nodes or recording servers.
• Compact PCIe Card Profile: At 7.3 in x 4.8 in x 0.7 in and 13.2 oz, the card fits standard ATX and server chassis without clearance conflicts from adjacent cards — the 0.7-inch height keeps it well within single-slot territory.
• Operating Temperature 0°C to 50°C (32°F to 122°F): Designed for conditioned server rooms and workstation environments. If your edge deployment runs in a non-climate-controlled space that can exceed 50°C, plan for airflow or enclosure cooling — this card is not rated for industrial-temperature extremes.

Integration and Compatibility

The 2M2-REMOVABLE-PCIE (often searched as 2M2 REMOVABLE PCIE) is built around the PCI Express 4.0 standard, which means it is backward-compatible with PCIe 3.0 and 2.0 slots at reduced bandwidth. However, the bifurcation requirement is non-negotiable for dual-drive operation: the host PCIe controller must split the x8 connection into two x4 lanes at the hardware level. This is configured in UEFI/BIOS on supported boards — not all server or workstation platforms expose this option, so confirm before purchase. Pairing this card with a network video recorder platform or a dedicated high-capacity storage build will give you the removable, high-speed NVMe architecture that surveillance and data-intensive workloads demand. For enterprises building out AI-assisted camera analytics nodes or edge computing racks, the dual-independent x4 architecture means each drive can service a separate workload without contending for bandwidth. The card carries a 2-year manufacturer warranty.

Frequently Asked Questions

Q: Does the 2M2-REMOVABLE-PCIE require bifurcation, and how do I enable it?

A: Yes — bifurcation is required. Your motherboard or host card must support splitting a PCIe x8 slot into two x4 lanes. This is typically configured in UEFI/BIOS under PCIe slot settings. Not all platforms support it; check your motherboard documentation before purchasing.

Q: What M.2 drive sizes fit the 2M2-REMOVABLE-PCIE?

A: The card accepts 2230, 2242, 2260, and 2280 M.2 NVMe drives using M-Key connectors wired for PCIe x4. SATA M.2 drives are not supported — only NVMe.

Q: What is the maximum data transfer rate for the 2M2-REMOVABLE-PCIE?

A: The maximum aggregate data transfer rate is 128Gbps under PCIe 4.0, with each M.2 slot running at up to PCIe x4 speeds independently.

Q: Does the 2M2-REMOVABLE-PCIE need additional power cables?

A: No. The card is fully bus-powered through the PCIe x8 slot. No SATA or auxiliary power connectors are required.

Q: Does this card require driver installation?

A: No drivers or software are required. The host OS enumerates the NVMe drives natively once the card is installed and bifurcation is properly configured.

Q: What is the warranty on the 2M2-REMOVABLE-PCIE?

A: StarTech provides a 2-year manufacturer warranty on the 2M2-REMOVABLE-PCIE.

Ted Perry

The 2M2-REMOVABLE-PCIE is one of those components that solves a specific problem cleanly — adding two independent PCIe 4.0 x4 NVMe drives into a single x8 slot with no driver overhead and no shared bandwidth compromise. I've deployed similar carrier architectures in edge recording nodes where drives need to be physically rotated for data retrieval, and the removable tray design here is the correct approach for that use case. What I always flag for integrators first: the 128Gbps aggregate ceiling is real, but it only materializes if your platform actually bifurcates that x8 slot. Skipping that BIOS check is the single most common deployment error with cards like this.

Technical Highlights:

• 128Gbps Aggregate Throughput: With two PCIe 4.0 x4 slots running independently, you have enough bandwidth for simultaneous high-bitrate write streams — relevant for multi-camera surveillance nodes writing uncompressed or minimally compressed footage in parallel.
• Bus-Powered Operation: The card draws entirely from the PCIe slot — no auxiliary power connectors. In dense 1U or 2U chassis where power cable routing is already congested, this simplifies installation and reduces the risk of a loose connector causing an unplanned drive drop.
• 40,000-Hour MTBF: At roughly 4.5 years of continuous operation at rated MTBF, this card is engineered for unattended deployment scenarios — appropriate for edge nodes that don't get routine hands-on maintenance.

Deployment Considerations:

• Confirm PCIe bifurcation support in your UEFI before installing. On platforms where bifurcation is not available, only one drive will enumerate — the second bay will be invisible to the OS regardless of the drive installed.
• Operating temperature ceiling is 50°C. In non-climate-controlled edge enclosures or tight chassis with poor airflow, verify ambient temperatures stay below that threshold — NVMe drives themselves generate heat that can compound enclosure temperatures quickly.

For surveillance integrators building out edge AI nodes or video analytics servers that need fast, field-swappable NVMe storage without driver complexity, the 2M2-REMOVABLE-PCIE is a practical fit — particularly in deployments where chain-of-custody drive handling or periodic media rotation is part of the operational procedure.
