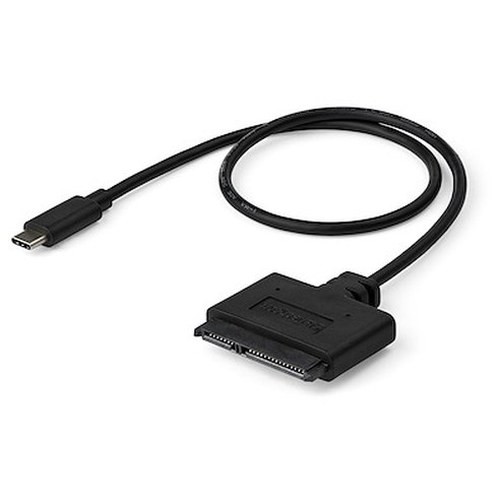

StarTech USB31CSAT3CB USB-C to 2.5in SATA Drive Adapter Cable

Overview

The StarTech USB31CSAT3CB is a slim, bus-powered adapter cable that connects any 2.5-inch SATA SSD or HDD directly to a USB-C host — no enclosure, no external power brick, no extra hardware. At 20 inches long and weighing just one ounce, it is the kind of tool that lives in a laptop bag or field kit without taking up meaningful space. If you need fast, direct access to a SATA drive from a modern USB-C workstation or laptop, this cable gets the job done without the overhead of a full enclosure.

This is a point-to-point adapter, not a docking station. It handles one 2.5-inch SATA drive at a time and draws power entirely from the USB-C port — no separate power supply needed as long as your host port delivers adequate bus power for the connected drive.

Key Features

• USB 3.2 Gen 2 Interface (10 Gbps): The host-side USB-C connector operates at USB 3.2 Gen 2 speeds — up to 10 Gbps theoretical throughput. In practice, a modern SATA SSD topping out around 550 MB/s will not bottleneck at the interface level, meaning you are pulling maximum drive performance rather than waiting on the adapter. Useful for imaging large drives in the field or transferring high-volume footage archives.
• Single SATA Data + Power Combo Connector (7+15 pin): The drive-side uses a combined 7+15 pin SATA connector that carries both data and power in one plug — the same standard connector on any 2.5-inch SATA SSD or mechanical hard drive. No proprietary connectors, no adapter-within-an-adapter. If your drive has a standard SATA interface, it connects directly.
• Bus-Powered Design: Power is drawn from the USB-C host port, eliminating the need for a wall adapter or secondary power cable. This matters for field deployment, mobile workstations, and environments where outlet access is limited. Note that high-power mechanical HDDs may require a host port that delivers sufficient bus current — verify your host port's power output if using spinning drives.
• 20-Inch Cable Length: At 20 inches, the cable provides enough reach to place a drive flat on a desk or mount surface while the host laptop sits nearby — without forcing awkward port-adjacent positioning. Short enough to avoid cable clutter on a workbench, long enough for practical bench use.
• Operating Temperature 0°C to 70°C: Rated for standard office and controlled environment operating conditions. Suitable for IT rooms, server areas, and climate-controlled field enclosures. Not designed for uncontrolled outdoor thermal extremes.
• Compact Form Factor (1.7in wide, 0.2in thick): The adapter head is thin enough to fit alongside other ports without physically blocking adjacent connections — a practical consideration on ultrabooks and compact workstations where port spacing is tight.
• 2-Year Manufacturer Warranty: StarTech backs the USB31CSAT3CB with a 2-year manufacturer warranty, which is above average for a passive cable adapter in this category.

Integration and Compatibility

The USB31CSAT3CB is compatible with any 2.5-inch SATA SSD or SATA HDD using the standard 7+15 pin connector. It is explicitly not compatible with 3.5-inch drives (the product name calls this out directly) — 3.5-inch drives require a powered enclosure or a separate adapter with dedicated power input. It is also not compatible with NVMe or M.2 drives, which use entirely different interfaces.

On the host side, any USB-C port supporting USB 3.2 Gen 2 will deliver full 10 Gbps throughput. USB 3.2 Gen 1 (5 Gbps) ports will also work but will cap throughput at 5 Gbps. Thunderbolt 3 and Thunderbolt 4 ports are backward compatible with USB and will work at full USB 3.2 Gen 2 speed. Standard USB-A ports are not compatible without a separate adapter — this cable is USB-C host only.

For security and surveillance deployments, this adapter is a practical tool for NVR and DVR maintenance workflows: pulling drive images for forensic review, transferring archived footage to an analyst workstation, or provisioning a replacement drive before installation. The 10 Gbps interface keeps large file transfers from becoming the bottleneck in a time-sensitive investigation workflow.

Frequently Asked Questions

Q: Is the USB31CSAT3CB compatible with 3.5-inch SATA hard drives?

A: No. The USB31CSAT3CB is designed exclusively for 2.5-inch SATA drives. It does not supply sufficient power for 3.5-inch drives, which require a separate 12V power input. Use a powered enclosure or desktop adapter for 3.5-inch drives.

Q: Will this adapter work with NVMe or M.2 SSDs?

A: No. The drive-side connector is a standard 7+15 pin SATA combo connector. NVMe and M.2 drives use a different interface and physical connector and are not compatible with this cable.

Q: What is the maximum data transfer speed of the USB31CSAT3CB?

A: The adapter supports USB 3.2 Gen 2, which has a maximum theoretical throughput of 10 Gbps. Real-world transfer speed will be limited by your drive's SATA interface — most 2.5-inch SATA SSDs top out around 550 MB/s, which this adapter handles without becoming the bottleneck.

Q: Does the USB31CSAT3CB require external power?

A: No external power supply is required. The adapter is bus-powered via the USB-C host port. For mechanical HDDs with higher power draw, confirm that your host port delivers adequate bus current to avoid intermittent disconnects.

Q: What is the warranty on the USB31CSAT3CB?

A: StarTech covers the USB31CSAT3CB with a 2-year manufacturer warranty.

Q: Can I use this adapter with a USB-A port?

A: No. The host connector is USB-C only. If your workstation only has USB-A ports, you would need a separate USB-C to USB-A adapter — though this may also reduce throughput depending on the adapter used.

Jerry Tildsen

The USB31CSAT3CB is a tool I keep in my field kit specifically because of that 10 Gbps USB 3.2 Gen 2 ceiling — when you are pulling a 2TB archive drive out of a decommissioned NVR and need to image it quickly before handing it off, waiting on a USB 3.0 bottleneck is not acceptable. This cable removes that friction entirely.

Technical Highlights:

• 10 Gbps USB 3.2 Gen 2: Handles the full sequential read bandwidth of any SATA SSD (typically 500–550 MB/s) without throttling — the drive, not the adapter, will be the speed ceiling.
• 7+15 Pin SATA Combo Connector: Single plug handles both power and data for any standard 2.5-inch SATA drive, with no proprietary breakout cables or secondary connectors required.
• 1 oz, 20-inch Cable: Light enough and compact enough to carry permanently in a laptop bag — relevant when you are making unplanned site visits that turn into drive recovery sessions.

Deployment Considerations:

• Bus-powered operation is convenient, but verify your USB-C host port's power delivery on older laptops before connecting a 2.5-inch spinning HDD — insufficient bus current will cause intermittent disconnects during large transfers.
• This cable is strictly 2.5-inch SATA only — confirm drive type before deployment. Bringing this cable to a site with 3.5-inch NVR drives or NVMe-based systems means a wasted trip.

This adapter earns a permanent slot in any surveillance integrator's go-bag, particularly for forensic image pulls and pre-deployment drive provisioning workflows where speed and zero-overhead portability both matter.
