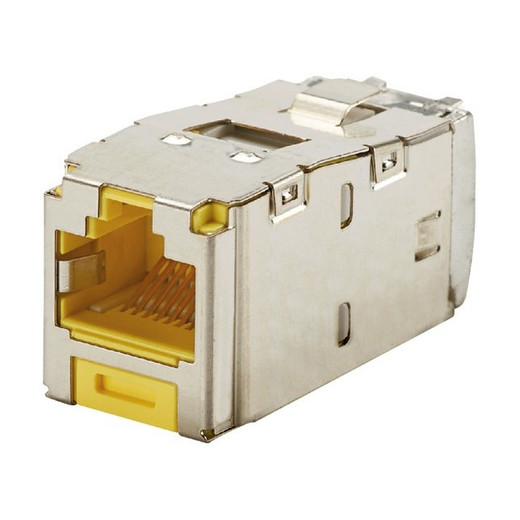

Panduit CJS688TGYLY Mini-Com Cat 6 Shielded RJ45 Jack Module
The Panduit CJS688TGYLY is a Mini-Com® Cat 6 shielded RJ45 jack module engineered for high-density structured cabling installations where EMI/RFI immunity and verified Category 6 performance are non-negotiable. Built for 22-26 AWG shielded twisted pair cable, this tool-free TG-style jack ships 100% factory tested and individually serialized, eliminating field guesswork on Category 6 channel compliance. Yellow color-coding speeds VLAN segregation, security network identification, or multi-tenant demarcation in commercial access control, surveillance PoE backbones, and data center horizontals.
Key Features
- TG (Tool-Free) termination — IDC contacts accept 22-26 AWG conductors without a punchdown tool, cutting installation time and eliminating the risk of over-compression on shielded cable
- Shielded construction with 360° jacket drain continuity maintains better than -40 dB alien crosstalk rejection across the full Cat 6 bandwidth, critical for PoE++ camera drops near AC line voltage and fluorescent ballasts
- 100% factory tested to exceed ANSI/TIA-568.2-D and ISO 11801 Category 6 component specs — every jack ships with verified insertion loss, return loss, and NEXT performance
- Individual serial number laser-etched on each module for as-built documentation, change-order traceability, and BICSI DCDC audit compliance
- IEEE 802.3bt Type 3 & Type 4 (PoE++) rated for 2,500 mating cycles at 90W continuous load — handles Axis Q-line PTZs, Hanwha multi-sensor arrays, and UniFi 6 Enterprise APs without contact degradation
- Yellow jacket matches TIA-606-B administration standard for auxiliary circuits, security VLANs, or out-of-band management planes
- Snap-in Mini-Com form factor fits all Panduit modular patch panels, surface-mount boxes, and angled faceplates without adapter frames
The TG termination system uses a hinged cap with integrated strain relief that locks conductors into gold-plated IDC contacts — no impact tool required. Shielded cable jacket bonds to the die-cast module frame via a 360° compression ring, ensuring shield continuity through the jack body to the faceplate or panel ground. This eliminates the floating-shield failures common with clip-on EMI jackets. The module's inline geometry maintains the 100-ohm impedance window across the transition from cable to contact, delivering consistent insertion loss across all eight positions — a requirement when running 2.5GBASE-T or 5GBASE-T over Category 6 infrastructure.
In the field, these modules drop into Panduit Mini-Com patch panels (CPP series), angled faceplates (CFA series), or surface-mount boxes for consolidation point installations in open ceilings and equipment rooms. The yellow color-code integrates into TIA-606-B labeling schemes: pair it with yellow patch cords for end-to-end circuit identification in multi-VLAN environments, or reserve yellow jacks for security/access control networks segregated from IT data. The jack's 2,500-cycle rating outlasts standard RJ45 connectors by 10×, a necessity for IDF patch fields and test labs where technicians plug and unplug daily. Field techs stock these modules in CPP48WBLY 48-port blank panels to build custom patch fields on-site without pre-termination lead times.
Each module is UL 2043 plenum-rated for above-ceiling installation and RoHS compliant. Exceeds ANSI/TIA-568.2-D and ISO 11801 Category 6 channel requirements when paired with Panduit Pan-Net shielded cable and patch cords. Supports IEEE 802.3af (15.4W PoE), 802.3at (30W PoE+), and 802.3bt Type 3 (60W) and Type 4 (90W PoE++) — critical for IP camera housings with integrated heater/blower assemblies, 4K PTZ domes, and Wi-Fi 6E access points. Ships in singles; order carton quantity (50-pack, sold separately) for volume deployments.
