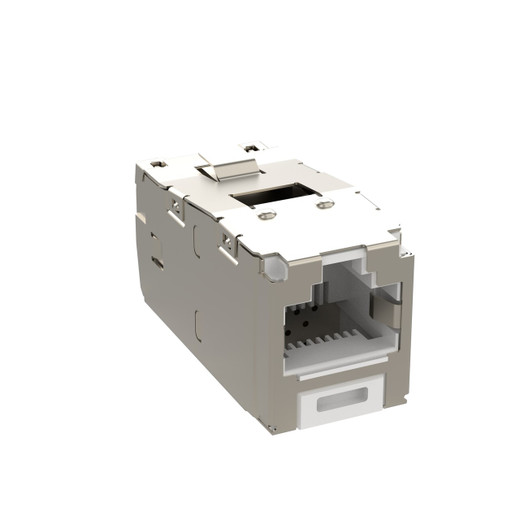

Panduit CJS688TGWHY Mini-Com Cat 6 Shielded RJ45 Module Jack
The Panduit CJS688TGWHY is a shielded Category 6 RJ45 module jack engineered for tool-less termination of 22-26 AWG four-pair shielded twisted-pair cable. Built into the Mini-Com modular platform, this white jack eliminates punch-down tool dependencies in the field while delivering verified performance that exceeds ANSI/TIA-568.2-D and ISO 11801 Category 6 channel and component requirements. Every unit ships with an individual serial number for enterprise-grade asset tracking and traceability, and each jack is 100% factory tested before leaving the production line. Designed for high-density patch panel and faceplate deployments where termination speed, EMI immunity, and PoE++ support are non-negotiable.
Key Features
- Tool-less TG termination style — field install with no punch-down tool required, reducing kit weight and training overhead
- Shielded construction (STP) for EMI/RFI rejection in electrically noisy environments — motor controllers, VFDs, high-power lighting circuits
- Exceeds ANSI/TIA-568.2-D and ISO 11801 Cat 6 performance specs — verified headroom for 1 Gbps Ethernet and 10GBASE-T short runs
- Supports IEEE 802.3af/at PoE and 802.3bt Type 3/4 PoE++ — tested to 2,500 mating cycles under power, suitable for IP cameras, access points, and LED lighting
- Individual serial number per jack — integrates with cable management databases for complete infrastructure documentation
- Mini-Com modular system compatibility — drop into Panduit modular patch panels, surface mount boxes, and multi-port faceplates without adapters
- UL 1863 and UL 2043 plenum-rated, RoHS compliant — meets NEC Article 800 and Canadian Electrical Code commercial install requirements
The TG termination system is a field-proven time saver: strip jacket, untwist pairs to the color-coded wiring guide, seat conductors into the IDC slots, and snap the cap. No impact tool, no blade alignment, no punch force variability between techs. The shielded design extends beyond the connector body — the metal housing bonds to shielded cable jackets via the integrated drain wire termination point, creating a continuous 360° shield path from patch panel to device. This is critical in environments where fluorescent ballasts, AC drives, or RF equipment share the same cable tray; unshielded Cat 6 jacks will pass insertion loss and return loss but fail bit-error-rate tests under real-world EMI exposure. Panduit's factory testing includes swept-frequency return loss, insertion loss, NEXT, PS-NEXT, FEXT, PS-FEXT, and alien crosstalk measurements across the full 1-250 MHz spectrum, so every jack arrives with verified margin above the minimum spec floor.
The 2,500-cycle PoE rating is a deployment differentiator for access control and IP surveillance projects where frequent cable swaps are common during commissioning and troubleshooting. Standard RJ45 jacks are rated for 750 cycles; under continuous PoE load (especially 60W+ 802.3bt Type 3 and 90W Type 4), contact plating degrades faster, leading to intermittent link drops and thermal damage. Panduit's spring geometry and gold-plated contacts are engineered to maintain contact resistance below 20 milliohms through the full cycle count, even at elevated temperatures. The Mini-Com form factor integrates into Panduit's modular infrastructure ecosystem — pair with CPPL-series patch panels for 48-port 1U density, or snap into CFPSL dual-gang faceplates for wall-plate terminations. Each jack's serial number links to a QR code on the packaging, enabling scan-to-database workflows for as-built documentation; this is a requirement for DOD, healthcare, and financial-sector projects where DCIM and CMMS integration is mandatory.
UL 2043 plenum rating confirms the jack passed the Steiner Tunnel flame and smoke test, qualifying it for installation in air-handling spaces above drop ceilings without conduit. The white housing matches standard office and healthcare facility color schemes, and the compact 0.62" width allows tight spacing in high-density panels without finger clearance issues. For structured cabling contractors managing multi-building campus deployments, the 50-unit carton quantity aligns with typical floor or IDF quantities, reducing reorder frequency and packaging waste. This jack is the field-install workhorse for any shielded Cat 6 horizontal or zone cabling project where termination speed, EMI performance, and audit-trail traceability define success.
