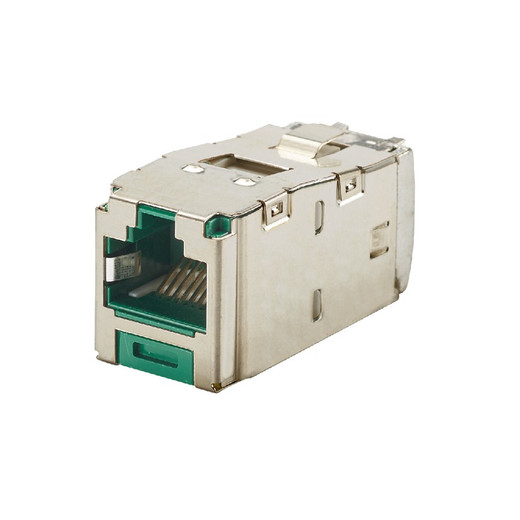

Panduit CJS688TGGRY Mini-Com® Cat 6 Shielded RJ45 Jack Module - Green
The Panduit CJS688TGGRY is a Mini-Com® shielded Cat 6 RJ45 jack module designed for integrators who need reliable, tool-less termination in EMI-sensitive environments. The TG (tool-less) termination design eliminates the need for a punchdown tool, cutting labor time on large deployments while maintaining the shielded performance required for industrial, healthcare, or high-density data center installations. The green color follows industry convention for PoE-powered endpoints or voice applications, and the module ships individually serialized for complete traceability on warranty and audit-sensitive jobs.
Key Features
- Tool-less TG termination eliminates punchdown tools, saves labor on large jobs
- Shielded Cat 6 performance for EMI-sensitive environments
- Supports high-power PoE: 802.3bt Type 3 (60W) and Type 4 (100W)
- Individual serialization for warranty tracking and documentation
- Mini-Com modular system compatible with patch panels and faceplates
- Rated for 2,500 connection cycles
- 100% factory tested to exceed TIA-568.2-D and ISO 11801
Shielded twisted pair (STP) construction provides critical EMI/RFI rejection in environments where unshielded cable would suffer crosstalk or interference—industrial control systems near motor drives, healthcare facilities with MRI or RF equipment, or dense IDF closets where hundreds of cables run parallel. The TG termination mechanism uses a slide-in design: strip the cable jacket, untwist pairs to the color-coded wire guides, press the termination cap, and the module locks the conductors into place. No punchdown tool, no guesswork, and consistent termination quality across an entire job. Each jack is factory-tested to exceed ANSI/TIA-568.2-D Category 6 channel and component requirements, and meets IEC 60603-7 mechanical and electrical specs. Power-over-Ethernet support extends to 802.3bt Type 3 (60W) and Type 4 (100W)—the full 100W single-signature PD spec required by modern PTZ cameras, LED lighting controllers, and 802.11ax access points.
Green is the TIA-606-B standard color for PoE or auxiliary circuits, making it easy to visually distinguish power-fed jacks from standard data drops during adds/moves/changes. The Mini-Com form factor snaps into Panduit's modular patch panels (CPP24WBLY, CPP48WBLY) and faceplate inserts (CFPL series), so you can mix Cat 6, Cat 6A, fiber, and copper on the same panel without adapter plates. Serialization—each jack has a unique ID printed on the housing—is a requirement for warranty claims on some Panduit projects, and critical for large enterprise or government jobs where every component must be traceable to a batch and test report. On a 500-drop job, tool-less termination saves roughly 30 seconds per jack compared to punchdown; that's 4+ hours of labor across the deployment. The 2,500-connection-cycle rating exceeds standard patch cord mating specs, so these jacks hold up in IDF closets where cables are moved frequently.
The CJS688TGGRY meets ANSI/TIA-568.2-D and ISO 11801 Category 6 requirements, IEC 60603-7 connector specs, and is UL 1863 Listed and UL 2043 plenum-rated. RoHS compliant. This module fits jobs where shielded cable is spec'd, where tool-less termination cuts labor cost, and where high-power PoE support is non-negotiable—new construction with 802.11ax WiFi, retrofit projects adding PTZ cameras to legacy infrastructure, or datacenter cross-connects where every dB of crosstalk margin matters.
