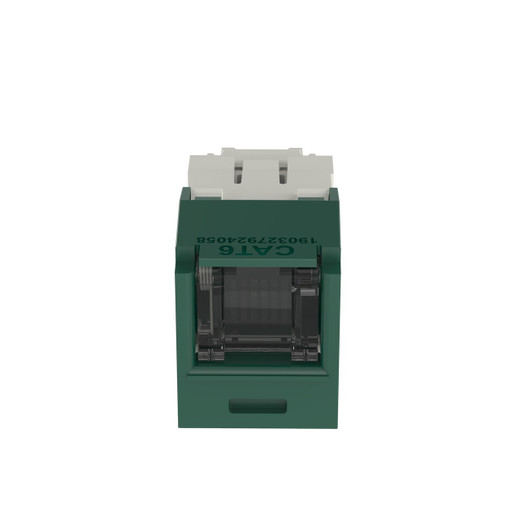

Panduit CJH688TGGR Mini-Com® Cat 6 RJ45 Shuttered Jack Module

The Panduit CJH688TGGR is a Mini-Com® Cat 6 UTP RJ45 jack module with an integrated spring-shuttered door that keeps dust and debris out of unmated ports. Designed for commercial network deployments where structured cabling terminates in modular patch panels or faceplates, this jack module handles 4-pair, 22-26 AWG twisted pair cable and delivers 100% factory-tested performance that exceeds TIA-568-C.2 Category 5e requirements. Each unit is individually serialized for asset tracking and traceability, and the green housing provides quick visual identification in color-coded infrastructures. The shuttered design protects the internal contacts from contamination in open ports across warehouses, manufacturing floors, and public-space installations.

Key Features

• Integrated spring shutters protect RJ45 contacts from dust and debris in unmated ports
• Exceeds ANSI/TIA-568-C.2 Category 5e and ISO 11801 Class D channel and component requirements (1–100 MHz)
• Rated for 2500 mating cycles with IEEE 802.3af/at and proposed 802.3bt Type 3 and Type 4 PoE
• Individually serialized for asset tracking and traceability
• Terminates 4-pair, 22-26 AWG twisted pair cable
• 100% factory tested to ensure performance consistency
• Compatible with Mini-Com modular patch panels and faceplates
• Green housing for color-coded network identification
• UL 1863, UL 2043, and RoHS compliant

The CJH688TGGR uses Panduit's TG (twisted-pair, generic) termination platform, which accepts standard 22-26 AWG twisted pair cable without requiring proprietary tooling. The integrated spring shutters close automatically when a patch cord is unplugged, forming a physical barrier that prevents airborne particulates, lint, and facility debris from settling on the eight gold-plated contacts inside the jack. This matters in environments like food processing plants, wood shops, or construction trailers where dust contamination degrades contact resistance and causes intermittent link failures. The shutters are designed for 2500 insertion cycles under full PoE load—802.3af (15.4W), 802.3at (25.5W), and the proposed 802.3bt Type 3 (60W) and Type 4 (100W) standards—so the jack can support long-term deployments of IP cameras, wireless access points, VoIP phones, and networked LED lighting without thermal degradation of the termination.

Each jack module is serialized with a unique identifier printed on the housing, enabling you to maintain a per-port asset register in your DCIM or CMMS system. This is critical for large-scale rollouts where hundreds or thousands of jacks are deployed across multiple floors or buildings: you can track which serial numbers were installed in which panels, tie them to MAC address tables from your switch stack, and correlate port-level failures back to specific manufacturing lots if a quality issue surfaces. The green housing integrates into color-coded structured cabling schemes—common in healthcare, education, and multi-tenant buildings—where different colors denote VLANs, security zones, or service types (data, voice, surveillance, building automation). The CJH688TGGR's form factor is compatible with all Mini-Com modular patch panels and faceplates, so you can mix shuttered and non-shuttered jacks in the same panel to prioritize contamination protection only where it's needed, reducing per-port cost without sacrificing flexibility.

The jack module exceeds ANSI/TIA-568-C.2 Category 5e and ISO 11801 Class D swept-frequency performance from 1 to 100 MHz, and meets ANSI/TIA-1096-A component specifications and IEC 60603-7 mechanical standards. It carries UL 1863 certification for communications use and UL 2043 plenum rating for installation in air-handling spaces, and is RoHS compliant for export to EU markets. The spring-shuttered design addresses a specific deployment risk—open-port contamination in dusty or high-traffic environments—without requiring non-standard patch cords or adding insertion-loss penalty, making it the right choice for installations where uptime depends on physical protection of the copper termination layer.
