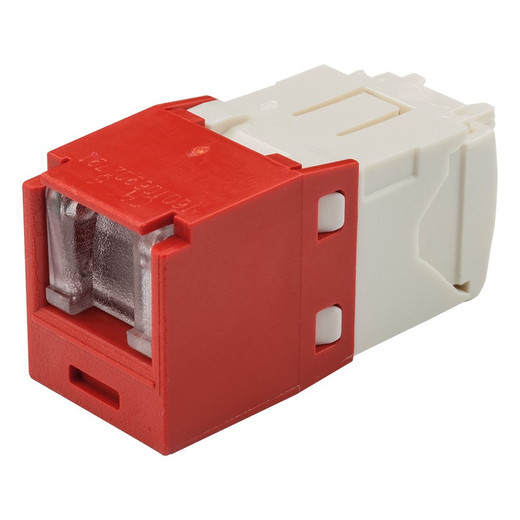

Panduit CJH688TGRD Cat 6 Shuttered RJ45 Jack Module Red

Panduit CJH688TGRD Mini-Com Cat 6 UTP RJ45 Shuttered Jack Module, Red

The Panduit CJH688TGRD is a Cat 6 UTP RJ45 jack module engineered for high-density structured cabling installations where dust protection, performance margin, and traceability matter. Part of the Pan-Net Mini-Com modular connectivity system, this shuttered jack combines field-proven termination reliability with an integrated spring-loaded door that keeps contaminants out of unmated ports—critical for open patch panels in dusty mechanical rooms, industrial enclosures, or jobsites under construction. Every module is individually serialized and 100% factory-tested to exceed ANSI/TIA-568.2-D and ISO 11801 Category 6 channel requirements, giving integrators measurable headroom on installed link performance. Red housing enables instant visual identification for fire alarm circuits, security system backhaul, or any application requiring color-coded separation per customer spec or NEC Article 760/800 practice.

Key Features

• Spring-shuttered RJ45 port blocks dust and debris in unmated jacks, reducing cleaning and service calls
• Exceeds ANSI/TIA-568.2-D and ISO 11801 Category 6 performance requirements with factory-verified headroom
• 100% factory tested—every jack ships with verified performance, not sample-lot certification
• Individual serialization supports cable plant documentation and MAC traceability per TIA-606-C labeling standards
• Rated 2500 mating cycles under IEEE 802.3af/at PoE and 802.3bt Type 3 (60W) and Type 4 (100W) power load
• Tool-less punch-down termination accepts 22–26 AWG solid or stranded twisted-pair cable
• Universal Mini-Com footprint fits all Panduit modular patch panels, surface-mount boxes, and faceplates
• UL 2043 plenum rated and UL 1863 listed; RoHS compliant for specification-driven projects

The CJH688TGRD delivers Category 6 performance with measurable margin—verified at the factory, not assumed in the field. Each jack exceeds ANSI/TIA-568.2-D channel requirements and meets ISO 11801 Class E specifications, ensuring that installed links pass Fluke DTX or Ideal LanTek certification even when cable routing introduces challenging cross-talk or return-loss conditions. The integrated spring shutter solves a chronic problem in open patch-panel deployments: dust, drywall particles, and airborne contaminants collect inside RJ45 jacks during construction or HVAC work, degrading contact resistance and causing intermittent link failures months after turnover. The shutter closes automatically when a patch cord is removed, keeping the contact area clean without tape, caps, or manual intervention. For integrators managing large panel counts in mechanical rooms or above-ceiling zones, this translates to fewer post-install cleaning cycles and reduced no-trouble-found service dispatches. The jack terminates 4-pair 22–26 AWG cable with Panduit's tool-less punch-down design—no impact tool required, just seat the conductors and press the cap. The termination system maintains pair geometry and minimizes untwist, preserving the balance and twist rate that determine crosstalk performance at 250 MHz. Serialization is laser-etched on each module body, providing a permanent machine-readable identifier for TIA-606-C cable plant records, DCIM integration, or MAC audit trails. This is especially valuable in multi-tenant buildings, data centers, or campus networks where traceability and documentation quality affect operational handoff and future troubleshooting efficiency.

The CJH688TGRD is built for patching-intensive environments—desktop outlets in call centers, nurse stations, and tech bars where users frequently swap devices; IDF and MDF patch fields with high churn; and industrial control networks where Ethernet/IP and PROFINET devices cycle through test and commissioning phases. The module is rated for 2500 connection cycles under PoE load per IEEE 802.3af (15.4W), 802.3at (30W), and 802.3bt Type 3 (60W) and Type 4 (100W) specifications, ensuring contact integrity even in environments where patch cords are inserted and removed daily. Red housing serves multiple use cases: color-coding fire alarm or mass-notification backhaul per NEC 760.3 and 760.179 separation rules, identifying secondary or out-of-band management links, marking guest or isolated VLANs in healthcare or hospitality networks, or simply matching customer facility standards for structured cabling aesthetics. The Mini-Com form factor ensures compatibility with Panduit's complete line of modular patch panels, angled and flat faceplates, surface-mount boxes, and furniture bezels—allowing integrators to standardize on a single jack SKU across wall outlets, floor boxes, and rack-mount panels without stocking multiple termination styles. Modules snap into panel frames without tools or screws, and the slim profile supports high port density (48 jacks in 1RU) without sacrificing access for adds, moves, or changes.

The CJH688TGRD is UL 1863 listed as a communications circuit accessory and UL 2043 rated for use in air-handling spaces, satisfying NEC 300.22(C) plenum requirements without conduit or junction-box enclosure in most AHJ interpretations. This approval is critical for above-ceiling horizontal distribution in commercial office, healthcare, and educational facilities where dropped ceilings create plenum return-air paths. RoHS compliance ensures the module meets EU Directive 2011/65/EU and California Proposition 65 lead-content limits, a requirement for projects pursuing LEED certification, specification-driven government contracts, or corporate ESG procurement standards. The spring-shuttered design is not cosmetic—it directly reduces the total cost of ownership by preventing the dust ingress that leads to oxidized contacts, intermittent links, and technician dispatches that cost more than the jack itself. For integrators building out new IDFs, retrofitting legacy spaces, or supporting modular furniture systems, the CJH688TGRD provides Cat 6 performance, field-proven durability, and the contamination protection that keeps links operational between certification and occupancy.
