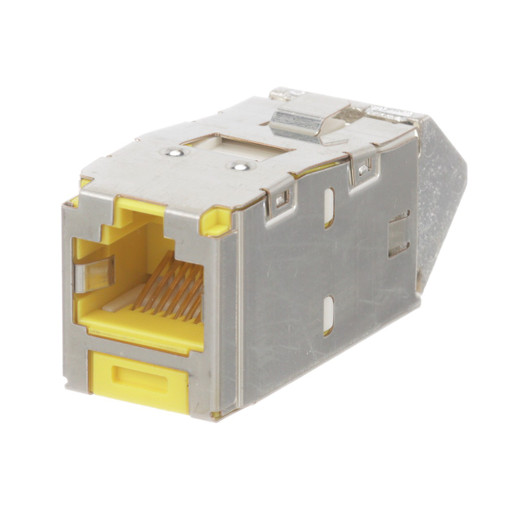

Panduit CJSUD688TGYLY Mini-Com Cat 6 Shielded RJ45 Jack Module
The Panduit CJSUD688TGYLY Mini-Com jack module addresses cable routing challenges in high-density patch panels with its 45° up/down angled port design. Instead of forcing horizontal cable egress, the angled orientation routes cables vertically—aligned with overhead trays or equipment racks—reducing bend radius violations and cable bundle congestion in 1U 48-port panels. Tool-free TG termination eliminates the need for a punchdown tool, cutting install time while maintaining consistent IDC contact pressure across all eight conductors. Shielded construction provides EMI protection in electrically noisy environments: datacenters with VFD-controlled HVAC, industrial facilities with motor controllers, and AV systems running alongside dimmer packs and LED drivers.
Key Features
- 45° up/down angled port design improves cable routing and bend radius compliance in high-density installations
- Tool-free TG termination—no punchdown tool required, eliminating over-drive and under-drive termination errors
- Shielded construction (STP) protects against EMI/RFI in electrically noisy environments
- Exceeds ANSI/TIA-568.2-D and ISO 11801 Cat 6 performance requirements for insertion loss, return loss, and NEXT
- Rated for 2500 connection cycles—supports frequent patching in active network closets
- Supports IEEE 802.3af/at PoE and 802.3bt Type 3 & Type 4 PoE++ for cameras, access points, and IP phones
- 100% factory tested and individually serialized for asset tracking and warranty validation
- Compatible with Mini-Com modular patch panels, faceplates, and surface mount boxes
- Yellow housing for color-coded network segmentation (security cameras, guest VLANs)
The TG termination system uses a captive wire guide and termination cap that seats conductors into IDC contacts without requiring a punchdown tool. Installers strip the cable jacket, lay conductors into the color-coded guide channels, and press the cap until it clicks—compression force is built into the cap, ensuring consistent contact pressure. This eliminates the two most common punchdown errors: over-driving (which cuts into the conductor and reduces current-carrying capacity for PoE) and under-driving (which creates intermittent contact). For PoE++ deployments delivering up to 51W to PTZ cameras or 30W to Wi-Fi 6E access points, the TG system maintains the low contact resistance needed to minimize voltage drop across the 100-meter channel.
Shielded construction uses a metal shell that mates with shielded RJ45 plugs to create a 360° EMI barrier around all eight conductors. In high-EMI environments, unshielded twisted pair can experience external crosstalk that degrades SNR and increases bit error rates—particularly on longer runs (80-100m) where cumulative exposure is highest. The shield terminates to the jack's metal frame, which bonds to the patch panel ground bar when installed in a shielded Mini-Com panel, creating a continuous shield path from switch to end device. The 45° angled port allows vertical cable egress, maintaining the 4× cable diameter minimum bend radius required by TIA standards and reducing strain on terminated conductors that can degrade insertion loss over time.
This module exceeds TIA-568.2-D Cat 6 component specs for insertion loss, return loss, and NEXT, and meets ISO 11801 Class E and IEC 60603-7 mechanical requirements. The 2500 connection cycle rating confirms the jack maintains performance after 2500 mate/unmate cycles—appropriate for network closets where cables are frequently moved. Each jack is laser-etched with a unique serial number for asset tracking in DCIM systems. UL 1863 and UL 2043 listings allow plenum installation without conduit, and RoHS compliance meets government and enterprise procurement requirements. For high-density structured cabling requiring bend radius compliance, tool-free termination speed, and shielded performance, the CJSUD688TGYLY delivers the reliability Panduit's Pan-Net line is specified for in datacenter, campus, and industrial network installations.
