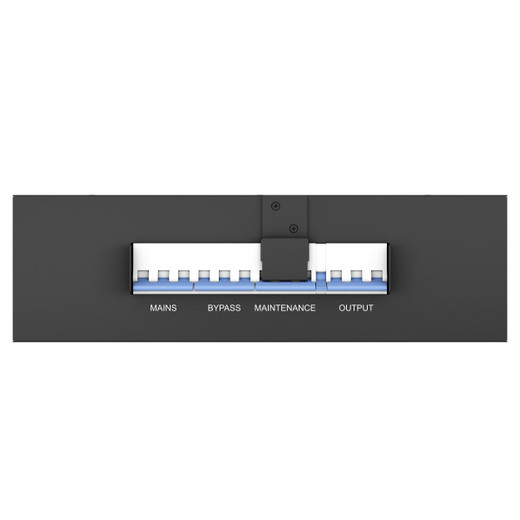

Panduit UMB20K 3-Phase UPS Maintenance Bypass Switch
The Panduit UMB20K is a maintenance bypass switch engineered for 3-phase UPS systems, enabling safe routine maintenance without interrupting critical power to connected loads. Designed for datacenter, telecom, and industrial installations where downtime isn't an option, this bypass switch provides a hardwired path around the UPS during service windows, letting technicians work on batteries, modules, or firmware while keeping servers, network equipment, and security infrastructure online. Compatible with Panduit U10N32V, U15N32V, and U20N32V UPS models, the UMB20K delivers the operational flexibility that high-availability environments demand.
Key Features
- 3-phase maintenance bypass for Panduit U10N, U15N, and U20N series UPS systems
- Hardwired bypass path maintains power continuity during UPS servicing
- Compact 5.1" H × 17.3" W form factor for rack or wall mounting
- Rated for 10kVA, 15kVA, and 20kVA UPS loads
- Mechanical interlocking prevents unsafe switching sequences
- Bypass and isolation switches with clear position indicators
- Suitable for datacenter, telecom, and mission-critical power applications
The UMB20K uses a mechanical interlock design that enforces the correct switching sequence during bypass engagement and disengagement. When maintenance is required, the operator transfers the load from the UPS output to the bypass path, isolates the UPS from input and output, then performs service work while utility power feeds the load directly. The interlock prevents simultaneous closure of incompatible switch positions, eliminating the risk of backfeed or load interruption. Bypass and isolation switches feature clear ON/OFF position indicators, and the unit accommodates the full rated load of compatible Panduit UPS models—10kVA, 15kVA, or 20kVA depending on the paired system. The compact 5.1-inch height and standard 17.3-inch width allow wall mounting adjacent to the UPS or integration into existing power distribution enclosures.
Maintenance bypass switches are standard practice in Tier II+ datacenters, telecom central offices, healthcare IT closets, and industrial control rooms where power interruptions carry financial or safety consequences. Scheduled UPS maintenance—battery replacement, firmware updates, module swaps, internal cleaning—can take 30 minutes to several hours. Without a bypass path, these tasks force a full shutdown or a risky live transfer to temporary generator or utility feed. The UMB20K keeps the maintenance window transparent to end users and connected systems. It's typically installed between the UPS output and the downstream PDU or panelboard, close enough to the UPS for short cable runs but accessible for operator interaction. Electricians appreciate the clear labeling and mechanical feedback during switching; facility managers value the uptime continuity during preventive maintenance schedules.
The UMB20K is purpose-built for Panduit's U10N32V, U15N32V, and U20N32V 3-phase UPS models, ensuring dimensional fit, load rating alignment, and coordinated short-circuit protection. While the provided spec sheet lists competitor cross-reference SBP16KRMI4U, proper bypass switch selection should always match the UPS manufacturer's specifications for voltage, phase configuration, and fault current ratings to maintain compliance with NEC Article 645 (Information Technology Equipment) and any applicable local electrical codes. Installations requiring N+1 redundancy, maintenance-free uptime guarantees, or SLA-driven availability targets should consider the bypass switch a non-negotiable component of the power infrastructure—not an optional add-on, but the mechanism that allows preventive maintenance to happen without ever dropping the load.
