CyberPower MBP20A6 Maintenance Bypass

CyberPower MBP20A6 Maintenance Bypass Power Distribution Unit

Overview

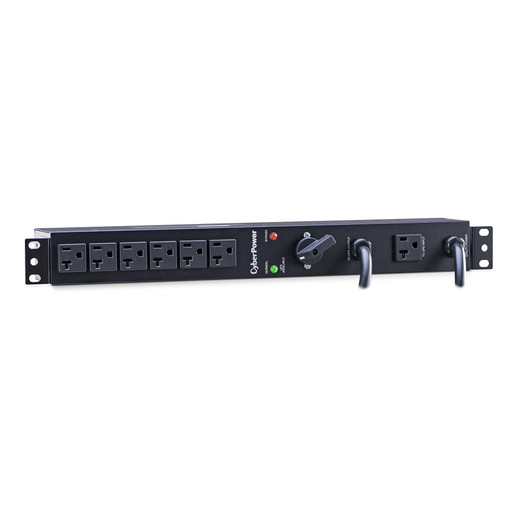

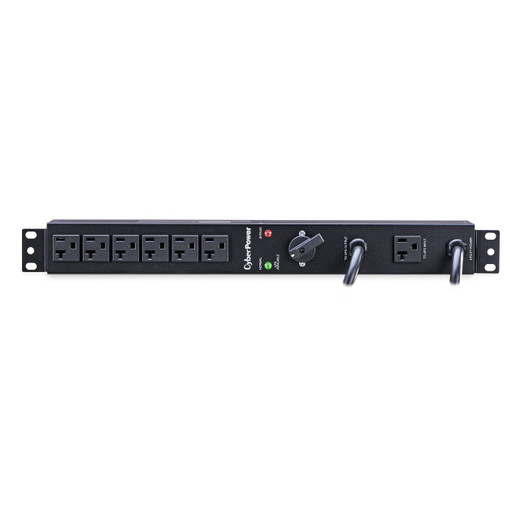

The CyberPower MBP20A6 is a 6-outlet, 1U rackmount maintenance bypass PDU designed to eliminate downtime during UPS battery replacement, maintenance, or installation. It accepts power from two separate sources — UPS and utility mains — and lets you manually transfer electrical load between them without interrupting power to connected equipment. This is essential infrastructure for any surveillance or security system running on UPS backup, where a planned maintenance window should not trigger an emergency shutdown or loss of recording capability.

Built around a manual bypass switch with visual LED indicators (green for normal UPS operation, red for utility bypass mode), the MBP20A6 connects to both a UPS and the facility power grid. When you need to service the UPS, you flip the switch to bypass mode, seamlessly handing the load to utility power. Flip back when maintenance is complete. No graceful shutdown sequence, no coordinated power-down across your recorder, switches, and access-control hardware — the load just stays live.

Key Features

• 6 NEMA 5-20R rear outlets: Each outlet rated for 16A continuous (20A nameplate), giving you enough receptacles for a typical mid-size recorder, PoE switch, access-control controller, and backup network appliance without daisy-chaining power strips.
• Dual input design with manual bypass switch: Two NEMA 5-20P input plugs let you wire the MBP20A6 between UPS output and facility mains. The mechanical bypass switch gives you positive control — no relay fail-over, no ambiguity about which power source is feeding the load. If the switch is flipped to bypass, utility power is supplying your equipment; flip it back, and UPS power resumes.
• LED status indicators (green/red): Normal operation lights green (drawing from UPS); flip to bypass mode and the red LED confirms you're on utility power. At a glance, any technician can verify the equipment is still live during a battery swap, preventing accidental disconnection.
• 1U rackmount form factor with multiple mounting options: Fits standard 19-inch racks as a 1U device, but also mounts vertically in 0U space (wall-mount orientation), under counters, or on walls in non-rack environments. For surveillance control rooms, NOCs, or distributed recorder closets, this flexibility means you're not forced into a full rack just to install the bypass unit.
• 120 VAC, 20A input/output rating (derated to 16A continuous): Matches standard North American facility power and typical UPS output voltage. The 16A continuous derate (versus 20A nameplate) accounts for sustained thermal load — realistic for 24/7 surveillance deployments where the PDU is always powered.
• Metal housing with integrated UPS mounting hardware: The MBP20A6 is constructed from powder-coated steel and includes mounting brackets to attach the unit directly to a small-form-factor UPS (such as a CyberPower 1U or tower unit). This keeps cable runs short and the bypass logic physically close to the UPS battery section, reducing the chance of confusion during maintenance about which unit feeds which load.
• 6 ft utility cord and 3.3 ft UPS cord included: Pre-measured cable lengths are sized so you can route the utility input from the facility panel and the UPS input from the battery unit without excessive slack or tension. Reduces ad-hoc wiring errors during installation.
• Operating temperature range 32–104°F (0–40°C): Suitable for standard commercial indoor environments, surveillance closets, and climate-controlled server rooms. Not rated for unheated storage areas or outdoor enclosures — keep the MBP20A6 indoors in typical HVAC-controlled space.
• UL60950-1 and cUL certified, RoHS compliant: Meets safety and material-composition standards for commercial electrical equipment in North America and Canada. No surprises during compliance audits or insurance underwriting for security systems in regulated facilities.
• 3-year limited manufacturer warranty: Covers defects in materials and workmanship. Standard terms apply — does not cover misuse, improper bypass switching, or damage from utility power surges that exceed the unit's clamping capability.

Integration and Deployment Context

The MBP20A6 fits into any surveillance or access-control system architecture where a UPS provides the primary power reserve and you need to perform battery maintenance or replacement without triggering a system-wide shutdown. Typical deployments include:

• Distributed recorder closets: A mid-size NVR, a managed PoE switch for IP cameras, and an access-control panel all draw from the same UPS. Maintenance bypass lets you replace UPS batteries or swap the entire unit without losing power to the recorder or losing continuity of video streaming.
• NOC or security control rooms: Multiple monitors, a VMS workstation, network equipment, and emergency systems share a single UPS. The bypass unit lets facilities swap or service the UPS during business hours without a controlled shutdown that can cascade into unplanned downtime.
• Hybrid on-premises and cloud recording: Local NVR backed by redundant internet uplinks via PoE-powered edge switches. The bypass ensures the NVR stays online during UPS maintenance, preserving local buffer capacity even if WAN links fluctuate during the work window.

The manual switch design is a deliberate choice — it requires an operator to actively transfer the load, ruling out silent failure modes where a faulty relay leaves equipment stranded without power. For security-critical systems, that human-in-the-loop verification is often preferred to automatic failover.

Physical and Environmental Specifications

The MBP20A6 measures 18.5 × 2.01 × 2.99 inches (470 × 51 × 76 mm) and weighs 4.6 lb (2.09 kg). Its compact 1U depth fits into tight rack spaces without dominating real estate. If you're mounting it vertically or wall-mounted in a closet outside the server rack, the small footprint and light weight make it easy to position near both the UPS and the patch panel, keeping cable runs manageable.

What's in the Box

The MBP20A6 ships as a complete unit ready for installation: the PDU itself, a 6-foot utility input power cord (NEMA 5-20P), a 3.3-foot UPS input cord (NEMA 5-20P), and mounting hardware to secure the PDU to a compatible UPS or rack frame. No additional cables or adapters are required for standard North American 120V installations.

Frequently Asked Questions

Q: What's the difference between the MBP20A6 and a simple manual power transfer switch?

A: A plain transfer switch might toggle between two live inputs, but the MBP20A6 integrates outlet distribution (6 NEMA 5-20R receptacles), status indication, and form-factor mounting (rack or wall) into one unit. It's designed as a complete PDU solution, not just a relay box. You plug equipment into the MBP20A6's outlets; the MBP20A6 itself switches between UPS and utility inputs.

Q: Can I use the MBP20A6 with a non-CyberPower UPS?

A: Yes. The MBP20A6 is a passive bypass PDU. It accepts 120 VAC from any compatible UPS output (matching the voltage and connector type, typically NEMA 5-20P). It doesn't require proprietary communication or firmware. Any UPS with a standard 120V output can feed the MBP20A6 input.

Q: Is the bypass switch automatic or manual?

A: The MBP20A6 uses a manual mechanical switch. You physically flip it to transfer the load. There is no automatic failover, no relay logic, and no single point of failure in a relay coil. This is intentional — for maintenance scenarios, a human operator confirms the transfer visually (via the LED indicators) before and after the switch, reducing risk of accidental load loss.

Q: What happens if both the UPS and utility power are connected and live at the same time?

A: The switch selects one input at a time. Only the input you've selected with the manual switch supplies the 6 outlets. The other input is disconnected from the output side of the switch. This prevents backfeeding or parallel power conflicts that could damage equipment.

Q: Does the MBP20A6 fit in a 0U (zero-U) rack space?

A: The MBP20A6 can be mounted vertically in a wall-mount or undercounter orientation, occupying no horizontal rack space. In that configuration, it sits outside the standard 19-inch rack frame. If you need it to occupy 1U within a rack, use the standard rackmount orientation.

Q: Is the 20A / 16A rating sufficient for my surveillance system?

A: The continuous rating is 16A (derated). A typical mid-size NVR draws 2–4 amps, a managed PoE switch draws 2–3 amps, and an access-control panel draws 1–2 amps. You can safely support 4–6 devices. If you have higher total load (e.g., multiple large recorders), consider a higher-amperage CyberPower bypass unit or split the load across two MBP20A6 units on separate UPS branches.

Karl Wilson

The MBP20A6 solves a specific problem: you need to replace or service a UPS without powering down your surveillance infrastructure. I've seen sites work around this by manually unplugging equipment, swapping batteries or the entire UPS, then re-powering everything — and every time, someone forgets a device, or a recorder goes offline mid-stream. The MBP20A6 bypasses this chaos. With its manual switch and LED status feedback, you flip a lever and the load transfers to utility power. Your NVR, PoE switch, and access-control panel stay powered throughout the maintenance window. Then you flip back when done.

Technical Highlights:

• 20A input derated to 16A continuous output: Realistic rating for 24/7 surveillance duty. You're not paying for nameplate amps you'll never use; the 16A sustained capacity is what you'll actually draw from an NVR, PoE switch, and access-control system combined. Protects against thermal buildup in the PDU over long maintenance windows.
• 6 NEMA 5-20R outlets in a 1U footprint: No daisy-chaining, no extension cords behind the rack. One input from the UPS, one from facility mains, six clean outputs. Equipment plugs directly in. In a typical surveillance closet, this eliminates tangled power logistics.
• Manual switch with green/red LED indicators: The tactile confirmation is crucial. You see red light up on the LED when you flip to bypass; you know utility power is live. Flip back, green comes on — UPS is feeding the load again. No ambiguity, no network calls to the NVR to confirm it's still recording.
• Integrated UPS mounting hardware: The MBP20A6 can strap directly to a small UPS unit. Cable runs stay short, and the entire assembly — UPS + bypass PDU — acts as one coherent power module. Easier to move, reconfigure, or troubleshoot than a remote bypass switch hung on the wall.

Deployment Considerations:

• The manual switch requires an operator on-site. If you're remote-managing a recorder or access-control system, you need someone physically present to flip the switch and confirm the transfer. This is intentional — no cloud-controlled relay that could fail silently — but it does mean you can't automate bypass logic from a VMS or access-control panel API.
• The 16A derate is firm for continuous operation. If your surveillance system draws more than 13–14 amps sustained (e.g., three large recorders plus multiple switches), the MBP20A6 is not adequate. Test your actual load before installation. A single miscalculation — forgetting a RAID array or a secondary recording appliance — and you'll overload the PDU during maintenance and lose everything you were trying to protect.

Deploy the MBP20A6 in distributed recorder closets, NOCs with hybrid VMS + edge-compute setups, or any surveillance facility where UPS battery swap or maintenance is a routine operation. It's the difference between a 10-minute planned maintenance window and a site-wide power-down that cascades into lost footage and angry calls from stakeholders.
