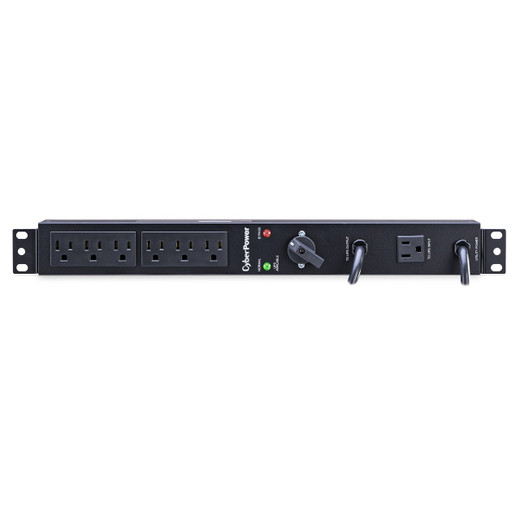

CyberPower MBP15A6 1U Maintenance Bypass Power Distribution Unit

The CyberPower MBP15A6 is a 6-outlet 1U rackmount maintenance bypass power distribution unit designed to isolate equipment load from UPS power during battery replacement, UPS maintenance, or installation work. This unit transfers electrical load from UPS output to utility mains without interrupting power to connected devices — the critical requirement when you cannot afford downtime during infrastructure service.

Overview

A maintenance bypass PDU solves a specific problem: you cannot shut down surveillance equipment or network infrastructure while servicing the UPS. The MBP15A6 provides a manual switchover mechanism that diverts load from the UPS to utility power, allowing the UPS itself to be serviced, replaced, or reconfigured. The unit sits between the UPS and your powered equipment in the rack, offering a controlled transition path that prevents both power loss and electrical damage during the changeover.

With input and output rated for 15A (derated to 12A for continuous operation), the MBP15A6 handles mixed surveillance and networking loads typical of mid-scale security operations. The metal housing and 1U form factor integrate cleanly into standard 19-inch racks, and mounting hardware accommodates both standard rackmount and tower-style UPS configurations.

Key Features

• 6 NEMA 5-15R Outlets (Rear Panel): Standard North American duplex outlets arranged for easy plug management. Rear placement keeps cable runs tidy in cramped rack enclosures and reduces tripping hazards at the front of your installation.
• Dual Input Paths: 2x NEMA 5-15P utility connectors on the input side (rated 15A, derated to 12A continuous) allow redundant power feeds or simplified looping from a facility PDU or backup generator circuit. This flexibility matters in deployments where a single utility feed creates a hidden single point of failure.
• Dedicated UPS Input Outlet: 1x NEMA 5-15R reserved for the UPS power cord, keeping UPS output isolated from utility power during normal operation. The MBP15A6 switches between UPS and utility input via a manual bypass switch, eliminating any accidental backfeeding or cross-connection.
• Manual Bypass Switch with Dual Modes: Toggle between Normal (equipment draws from UPS) and Bypass (equipment draws from utility mains). LED indicators — green for Normal, red for Bypass — provide instant visual confirmation of the active power source. No microcontroller, no automatic switchover logic, no software dependency: you control the transition manually and visually verify the result before releasing equipment to utility power.
• Included Power Cords: 6 ft utility-inlet cord and 3.3 ft UPS-input cord are pre-attached, eliminating the need to source custom lengths. Both use standard NEMA connectors, simplifying replacement if damaged during service.
• 1U Rackmount with Tower Compatibility: Standard 19-inch rack mounting hardware included; the unit also accommodates UPS tower configurations where vertical space is limited. Total footprint is 17 inches wide, 3 inches deep, and 2 inches tall, leaving ample room for cable management above and below in dense racks.
• Wide Operating Environment: Rated 32–104°F operating temperature and 0–90% relative humidity (non-condensing), plus 0–10,000 ft elevation tolerance. This range covers most data center, telecom closet, and warehouse installations without environmental concern. Metal housing provides passive thermal dissipation and mechanical protection against accidental contact or vibration.
• UL60950-1 / cUL Certification and RoHS Compliance: Meets North American electrical safety and global hazardous substance restrictions. The dual certification means no surprise recertification overhead if your facility or customer base straddles US and Canadian requirements.

Integration & Compatibility

The MBP15A6 is transparent to downstream equipment — it presents standard 120VAC nominal utility power and carries no protocol, firmware, or network dependency. Plug any 120VAC surveillance camera power supply, network switch, access control panel, or recorder into the six rear outlets. If you are running redundant UPS units, you can loop utility input from a facility PDU or generator circuit into the dual input connectors, creating a backup path that does not rely on a single UPS unit.

The manual bypass switch design is intentional: there is no automatic failover logic, so human error during switchover is the only operator-induced failure mode. Most integrators prefer this simplicity — you verify LED status before releasing load, you know exactly when the UPS is offline, and you avoid the complexity of testing automatic bypass circuits under real load conditions.

What's in the Box

• 1x CyberPower MBP15A6 Maintenance Bypass PDU (1U rackmount form factor)
• 1x 6 ft utility power cord (NEMA 5-15P to inlet)
• 1x 3.3 ft UPS input cord (NEMA 5-15P to outlet)
• 1x Mounting hardware kit (19-inch rack and UPS tower bracket)
• 1x 3-Year Limited Warranty card

Frequently Asked Questions

Q: Can the MBP15A6 be used with any UPS brand or only CyberPower units?

A: The MBP15A6 works with any UPS that outputs 120VAC at 15A or less via a NEMA 5-15P connector. It is not brand-specific. The dedicated UPS input outlet simply receives the UPS output cord; there is no intelligence or protocol handshake required.

Q: What happens if I accidentally leave the bypass switch in Bypass mode after UPS maintenance is complete?

A: Equipment will continue to draw from utility mains instead of the UPS. If utility power fails, there is no backup. The manual switch design requires you to physically confirm the LED indicator and switch position before releasing the bypass. Most integrators make this part of the post-maintenance checklist and tag the PDU so this state is not missed.

Q: Is the MBP15A6 suitable for outdoor or wet-location installations?

A: No. Operating humidity is rated 0–90% non-condensing, and there is no NEMA 4X or IP67 rating. This unit is designed for indoor racks, telecom closets, and server rooms. For outdoor or harsh-environment UPS installations, consult the UPS manufacturer for a weather-rated bypass module.

Q: Can I daisy-chain multiple MBP15A6 units for higher current capacity?

A: No. Each unit is a discrete bypass switch with a 12A continuous rating. If you exceed 12A total load, you need a higher-capacity bypass model or a separate utility feed to your UPS. Daisy-chaining would not increase capacity and would introduce complexity without benefit.

Q: Does the MBP15A6 require any software configuration or network connection?

A: No. This is a purely passive electrical device with a manual switch and LED status indicators. No software, no network, no configuration required. Plug it in and operate the switch manually.

Q: What is the warranty coverage on the MBP15A6?

A: The unit includes a 3-Year Limited Warranty from the manufacturer, covering defects in material and workmanship under normal use. Warranty details and claim procedures are included in the box.

Karl Wilson

The MBP15A6 solves a problem that looks simple until you have lived through it: how do you service a UPS in a security installation without going dark? I have walked through too many data centers and camera rooms where the entire team held its breath while someone yanked the UPS power cord because there was no bypass mechanism. The MBP15A6 is the right answer for surveillance integrations where a UPS replacement or battery swap cannot happen on a scheduled downtime window — and in security work, that is almost always.

Technical Highlights:

• Manual bypass switch with dual-mode control: Toggle between Normal (UPS powers equipment) and Bypass (utility mains power equipment). Green and red LED indicators confirm which power source is active. Zero microcontroller, zero network dependency — you see the status and you control the transition. That simplicity is a feature, not a limitation, because it eliminates the testing and validation overhead of automatic failover circuits.
• Dual utility input connectors (2x NEMA 5-15P): Allows you to loop utility power from a facility PDU, backup generator, or second utility feed. If your surveillance install shares a UPS with network infrastructure, you can isolate UPS maintenance without forcing the entire rack to utility-only mode — the MBP15A6 can pull from a redundant utility source while the primary UPS is offline.
• 12A continuous derated capacity: Typical surveillance camera power supplies, network switches, and access control panels draw 2–8A per unit. A 12A continuous rating is enough for mixed loads — 2–3 rack-mounted items at full load or 4–6 camera power supplies. Know your actual load before sizing; the 15A input rating is the plug limit, but 12A is the safe sustained value.
• 3-year manufacturer warranty: Covers defects in material and workmanship. A maintenance bypass PDU has no moving parts except the manual switch, so failure is rare — but when it happens, you want the replacement under warranty rather than scrambling for an emergency substitute in the middle of a UPS maintenance window.

Deployment Considerations:

• Manual bypass means human responsibility: you must visually confirm LED status and switch position before releasing the bypass. Most integrators tie this to a post-maintenance checklist and add a physical tag to the unit reminding staff to flip the switch back to Normal. Automation avoids this step but introduces test complexity — manual is more reliable in real-world service.
• The 6 ft utility cord and 3.3 ft UPS cord are pre-attached. In cramped racks, measure your cable run from the facility PDU and UPS to the MBP15A6 location before ordering. If you need longer utility input, source a NEMA 5-15P extension cord rated for your load (12A minimum). The UPS-side cord length is usually fixed by the UPS location, so plan accordingly.
• This is an indoor-only device: 0–90% non-condensing humidity and 32–104°F operating range. If your UPS lives in a telecom shelter, unheated warehouse, or outdoor cabinet, the MBP15A6 cannot be deployed outside the main equipment enclosure. Plan the bypass connection inside the primary rack or climate-controlled space.

Position the MBP15A6 in surveillance installations where UPS maintenance is predictable and required — security operations running 24/7 camera and NVR loads that cannot tolerate even brief power transitions. The manual switchover model is ideal because it forces the technician to think through the transition step by step, and there is no automatic failover logic to second-guess or debug. If your facility regularly services UPS units and you need a bulletproof, no-surprises bypass solution, this is the right tool.
