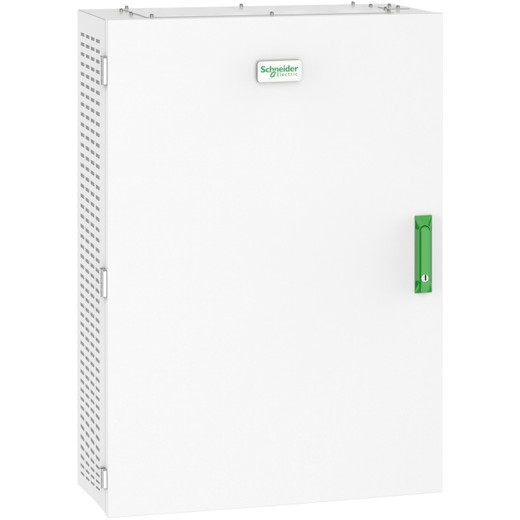

APC by Schneider Electric Easy UPS 3S Parallel Maintenance Bypass Panel for 3 Upss - E3SBPAR10K40F

APC by Schneider Electric E3SBPAR10K40F Easy UPS 3S Parallel Maintenance Bypass Panel

Overview

The E3SBPAR10K40F is a parallel maintenance bypass panel engineered for the Easy UPS 3S series, designed to support configurations of up to three paralleled UPS units rated between 10 and 40KVA at 208V. A maintenance bypass panel at this scale lets your team isolate any UPS in the parallel group for scheduled maintenance or replacement without dropping the protected load — an operational necessity in data centers, critical infrastructure, and manufacturing environments where planned downtime is not an option.

The 208V single-voltage design targets North American three-phase commercial and industrial installations. The panel's 700mm × 700mm × 330mm (W×H×D) white enclosure is sized to house the switching and bus infrastructure required to parallelize three units across a 10–40KVA span — giving you room to scale capacity across that range as load requirements grow. For more on APC by Schneider Electric power solutions, browse the full catalog.

Key Features

• 3-UPS Parallel Support: Connects up to three Easy UPS 3S units into a single load bus — scaling capacity and adding N+1 redundancy without deploying a separate static transfer switch.
• 10–40KVA Operating Range: Covers the mid-range commercial power envelope where a single UPS is often undersized. Paralleling within this window lets you right-size capacity incrementally rather than over-specifying a single large unit.
• 208V Single-Voltage Architecture: Matched to the 208V distribution standard common in North American commercial buildings and data center power strips — no step-up transformer required.
• 0–40°C Operating Range: Rated for standard indoor mechanical room and data center environments. The 0°C lower bound means it is not intended for cold-storage or unheated spaces — plan your installation room accordingly.
• Up to 95% Relative Humidity (Non-Condensing): Tolerant of humid plant floors and telecom closets, reducing the need for aggressive climate control in the panel room.
• 2000m Maximum Altitude: Suitable for most continental US deployments without derating — installations above this elevation should verify with APC's power accessories and planning resources.
• RoHS and REACH Compliant: Meets EU hazardous-substance directives. Mercury-free construction. Relevant if your procurement requires environmental compliance documentation for the full power chain.

Frequently Asked Questions

Q: How many UPS units does the E3SBPAR10K40F support in parallel?

A: The E3SBPAR10K40F is designed for configurations of up to three Easy UPS 3S units operating in parallel.

Q: What voltage does the E3SBPAR10K40F operate at?

A: It operates at 208V, targeting North American three-phase commercial and industrial power distribution.

Q: What is the KVA range supported by the E3SBPAR10K40F?

A: The panel supports UPS configurations from 10KVA to 40KVA.

Q: What are the operating environment limits for the E3SBPAR10K40F?

A: Operating temperature is 0–40°C, relative humidity 0–95%, and maximum altitude 2000 meters. It is intended for indoor conditioned spaces.

Q: Is the E3SBPAR10K40F RoHS compliant?

A: Yes. The E3SBPAR10K40F carries both RoHS and REACH compliance certifications and is mercury-free.

Marty Allison

The E3SBPAR10K40F addresses a specific operational gap: in a three-unit 208V parallel UPS installation, you cannot safely pull one unit for maintenance without this type of bypass panel absorbing the load transition. At the 10–40KVA range this panel is rated for, that's a meaningful chunk of critical infrastructure that cannot tolerate a brownout during a planned service window.

Technical Highlights:

• 208V / 10–40KVA Envelope: Squarely targets the mid-market commercial data center tier — above desktop UPS territory, below the 60–80KVA-and-up enterprise class. This is where parallel configurations are most common and bypass panels most often get skipped in initial design, then retrofitted at pain.
• 0–40°C Operating Range: Standard data center and mechanical room envelope. The 0°C lower limit is worth noting — this is not rated for outdoor or unheated equipment rooms in cold climates without supplemental heating.
• RoHS + REACH, Mercury-Free: Relevant for enterprise procurement teams with environmental compliance requirements across the full power chain, not just end-devices.

Deployment Considerations:

• Verify your Easy UPS 3S model numbers are within the supported 10–40KVA range before ordering — APC's parallel bypass panels are typically KVA-range-specific and are not interchangeable across the full Easy UPS 3S lineup.
• The 700mm × 700mm × 330mm footprint requires planning your electrical room layout before delivery; floor space adjacent to the UPS stack must accommodate this panel's width and service clearance.

For critical facility teams running three-unit Easy UPS 3S parallel arrays in 208V data centers or industrial control rooms — where a service event on one UPS must be invisible to the load — the E3SBPAR10K40F is the purpose-built bypass path that makes that possible.
