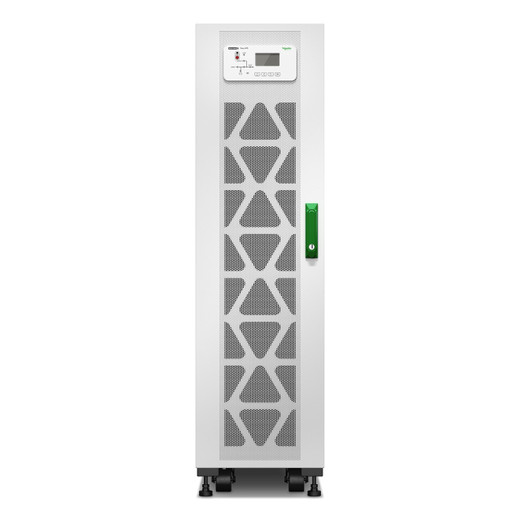

APC by Schneider Electric Easy UPS 3S 10 KVA 208V 3:3 UPS for Internal Batteries - E3SUPS10KFBS

APC by Schneider Electric E3SUPS10KFBS Easy UPS 3S 10 KVA 208V 3:3 Tower UPS for Internal Batteries

The E3SUPS10KFBS is APC by Schneider Electric's Easy UPS 3S platform in a 10 KVA / 10,000 W tower form factor, configured for 3:3 three-phase input and output at 208V. Designed for deployments that need a commercially serious UPS without the footprint of a rack-mount chassis, this unit is sized for mid-tier critical loads — think small data rooms, edge compute nodes, VoIP infrastructure, or security head-end equipment clusters where a single power event can cascade into hours of recovery work. The internal-battery configuration means no external battery cabinet is required for the base runtime case, and the 5x8 startup service tier sets appropriate expectations for a commercial (non-mission-critical) support engagement. If you are evaluating APC by Schneider Electric power protection products, this model sits at the 10 KVA capacity point in the Easy UPS 3S line.

Key Features

• 10 KVA / 10,000 W Output Capacity: At unity power factor, this unit delivers a full 10,000 W — no derating. For a three-phase UPS at this capacity class, that means you can load it to nameplate without hunting for a conversion coefficient. Size your load budget accordingly and leave standard headroom (typically 70–80% of nameplate for runtime efficiency).
• 208V 3:3 Three-Phase Topology: Input and output are both 208V three-phase, which matches the standard distribution voltage for North American commercial electrical panels feeding server rooms and security head-ends. No autotransformer or step-up required if your panel is already at 208V.
• Input Voltage Range 208–220V at 50/60 Hz: The unit accepts a narrow ±6% input band (208–220V), which is appropriate for well-regulated commercial utility feeds. If your facility experiences wide voltage swings or sags below 208V regularly, verify that the transfer window aligns with your generator or bypass source before commissioning.
• 31A Maximum Output Current: At 208V three-phase, 31A maximum output current gives you the arithmetic to check whether your downstream panel breaker and PDU cabling are sized correctly before you rack anything. This is a pre-installation check that saves a service call.
• 120V Internal Battery Bus: The 120V battery architecture is native to the Easy UPS 3S internal battery design. Battery modules are self-contained within the tower chassis — no external cabinet wiring, no separate battery breaker panel to commission for the base runtime configuration.
• Tower Form Factor, Metal Enclosure: The metal tower chassis, finished in white, is floor-standing and self-supporting. For security operations centers, network closets, or any space where rack real estate is at a premium, a tower UPS keeps the load off your rack rails and the weight off your raised floor tiles — relevant when you are already running dense switch and NVR stacks.
• IP20 Enclosure Rating: IP20 means the chassis is protected against solid objects larger than 12mm (finger-safe) but carries no water ingress rating. This unit is strictly for conditioned indoor environments — machine rooms, server closets, climate-controlled security head-ends. Do not deploy in unfinished utility spaces, loading dock rooms, or anywhere with condensation risk.
• 0–40°C Operating Range: Standard commercial HVAC temperature envelope. If your equipment room regularly exceeds 40°C (104°F) — common in poorly cooled closets during summer — derate runtime expectations and check battery health more frequently, as elevated ambient temperature accelerates battery aging.
• 0–95% Operating Relative Humidity (Non-Condensing): Wide humidity tolerance, but the IP20 rating means condensation remains a hard exclusion. Pair with a power conditioning and environmental monitoring solution in any space where humidity control is inconsistent.
• 5x8 Startup Service: The included startup service covers business-hours (5 days/week, 8 hours/day) commissioning support. For deployments where uptime is critical around the clock, evaluate whether upgrading to a higher service tier is appropriate before the unit goes live — it is significantly easier to negotiate service terms before installation than after a failure.

Integration and Compatibility

The E3SUPS10KFBS is designed for integration into commercial three-phase 208V electrical infrastructure. Downstream load compatibility depends on your PDU, transfer switch, and load equipment — verify that all downstream devices accept 208V three-phase input before connecting. For UPS network management and SNMP monitoring integration, confirm which network management card slots or communication ports are supported on this chassis prior to purchase, as the base model configuration determines what remote monitoring options are available. APC's EcoStruxure and PowerChute software ecosystems are the standard management layer for this product family; consult APC documentation for supported firmware and protocol versions.

Frequently Asked Questions

Q: What is the output power capacity of the E3SUPS10KFBS?

A: The E3SUPS10KFBS is rated at 10 KVA / 10,000 W output capacity at unity power factor.

Q: Does the E3SUPS10KFBS require an external battery cabinet?

A: No. This model is configured for internal batteries — the base runtime is provided by battery modules housed within the tower chassis itself, without a separate external battery cabinet.

Q: What input voltage does the E3SUPS10KFBS accept?

A: The unit accepts 208–220V three-phase input at 50 or 60 Hz, which aligns with standard North American commercial 208V distribution panels.

Q: Is the E3SUPS10KFBS suitable for outdoor or unconditioned space installation?

A: No. With an IP20 enclosure rating, this unit is rated for indoor conditioned environments only. It has no water or dust ingress protection beyond basic finger-safe construction.

Q: What does the 5x8 startup service mean for this UPS?

A: The 5x8 designation means startup and commissioning support is available during standard business hours, five days per week. It is not 24/7 support. Sites requiring around-the-clock commissioning coverage should evaluate higher service tiers.

Q: What is the maximum output current of the E3SUPS10KFBS?

A: Maximum output current is 31A. Use this figure to verify that your downstream PDU, transfer switch, and branch circuit breakers are correctly rated before energizing the load.

Marty Allison

The E3SUPS10KFBS punches at the right capacity for mid-tier commercial deployments where three-phase 208V distribution is already in place. The 10,000 W at unity power factor means no derating math — what you see on the nameplate is what you get on the output terminals, which simplifies load planning considerably compared to older UPS designs with 0.8 or 0.9 power factor ratings.

Technical Highlights:

• 10 KVA / 10,000 W Unity PF Output: Full watt-for-watt delivery simplifies load calculations. At 208V three-phase with 31A max output, you have clear hard limits to design your branch circuits and PDU selections around.
• 208–220V Input Band: Designed for regulated commercial utility feeds. The narrow input window (208–220V) reflects an assumption of stable grid or generator input — not the place for sites with chronic under-voltage or wide sag events without upstream conditioning.
• 0–40°C Operating Envelope with IP20: Standard conditioned-room spec. The IP20 rating is a firm reminder that this chassis belongs in climate-controlled spaces. Deploy it in a room where the HVAC is monitored and maintained — battery longevity is directly tied to ambient temperature staying below 25°C for rated cycle life.

Deployment Considerations:

• Internal battery configuration means the tower is self-contained for base runtime, but confirm the battery module count and expected runtime at your actual load before deployment — runtime at 100% load will be substantially shorter than at 50% load, and the specific figures depend on the battery configuration installed.
• The IP20 rating is a hard constraint: no condensation, no uncontrolled humidity, no utility closets without HVAC. Violating this shortens battery life and voids warranty coverage in most configurations.

This unit is a strong fit for a security head-end room or small data closet running a mix of NVRs, managed switches, and access control servers on a 208V three-phase panel — exactly the infrastructure profile where a single power event without UPS protection means hours of camera footage gaps and door controller resets.
