Hanwha WRT-P-3104W1-12TB 64-Channel NVR 12TB

Hanwha WRT-P-3104W1-12TB 64-Channel Network Video Recorder

The Hanwha WRT-P-3104W1-12TB is a purpose-built network video recorder for enterprise deployments spanning medium-to-large camera networks. It bundles a current-generation Intel Core i3 processor, 64 concurrent recording channels, and Wisenet WAVE video management software pre-installed with four Professional licenses—eliminating the separate procurement and licensing cycle that typically delays VMS deployment. This integrated approach matters when integration timelines are tight or IT resources are stretched.

Key Features

• 64-Channel Recording Capacity: Consolidates large multi-camera installations (retail networks, warehouses, corporate campuses) into a single appliance rather than clustering smaller recorders. Reduces operational overhead and network complexity.
• Integrated Wisenet WAVE VMS with 4 Professional Licenses: Software arrives pre-loaded and activated—no separate licensing procurement or installation. Four concurrent users can access the system immediately without additional software purchases. This eliminates a major friction point in deployment timelines.
• 170 Mbps Sustained Recording Throughput: Handles simultaneous high-bitrate multi-stream recording across dozens of cameras without transcoding bottlenecks or dropped frames. Full-resolution video capture across your entire fleet is preserved without quality degradation, critical for forensic playback and incident investigation.
• 12TB Pre-Installed Storage, Expandable to 16TB: Three hot-swappable 3.5-inch drive bays ship with 12TB installed and support up to 16TB total capacity. Hot-swap capability means you add storage during normal operation—no powering down required. For facilities where downtime costs money, this is non-negotiable.
• 14th Generation Intel Core i3 Processor with 16GB RAM: Current-generation workstation-class processor paired with adequate memory for simultaneous recording, VMS operations, remote browser access, and multi-user connections. This is not an underpowered embedded system; it handles sustained surveillance duty without performance degradation even under heavy load.
• 512GB SSD Operating System Drive: Dedicated SSD for OS and application code keeps system responsiveness independent of video storage load. When recording throughput is heavy, the separation between application performance and video I/O prevents system slowdown.
• Dual 1GbE Network Interfaces: Two independent network connections enable redundant paths to camera networks and management VLANs. Reduces single points of failure in critical deployments—if one network path fails, recording and remote access continue on the second interface.
• Dual Video Outputs (DisplayPort and HDMI): Connect a monitor for local live monitoring and configuration without consuming a network port. Supports multi-display control room setups if your deployment requires central monitoring across multiple screens.
• Windows 11 IoT Enterprise LTSC 2024: Long-term servicing branch eliminates surprise major OS version changes mid-deployment. Extended security update windows mean stable operation and predictable patch cycles over the system's service life.
• 360W 80 Plus Platinum Power Supply: Platinum-rated efficiency reduces operational heat and electricity cost—material savings over multi-year operation. Designed for continuous 24/7 duty without thermal throttling.

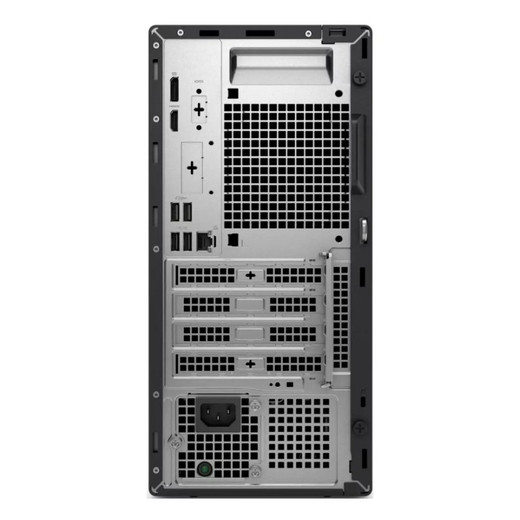

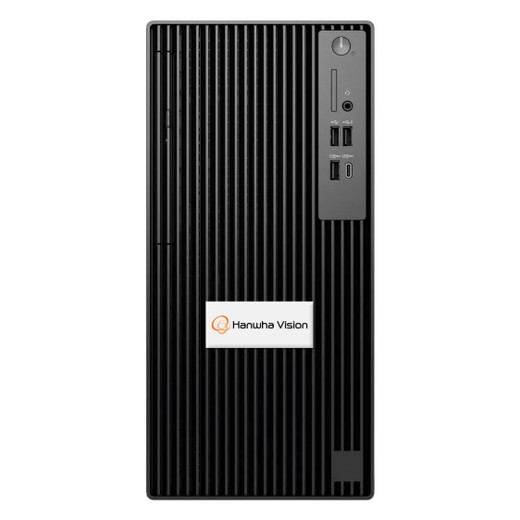

• Compact Mini-Tower Form Factor (6.06" W × 11.54" D × 12.77" H): Fits standard server rack shelving or sits discretely on a network closet shelf without consuming full-size tower footprint. Flexible deployment in space-constrained environments.
• Six USB Ports: Support external backup drives, third-party integrations, or peripheral devices without network dependency. USB connectivity enables rapid evidence export or system recovery if needed.

Integration and Deployment Context

The WRT-P-3104W1-12TB pairs well with network video recorders in Hanwha IP camera deployments where single-vendor integration reduces complexity. Wisenet WAVE's ONVIF compatibility means third-party cameras integrate without proprietary connectors, but expect tighter feature parity (advanced analytics, edge computing) when using non-Hanwha camera models. Dual 1GbE interfaces require separate network infrastructure for redundancy—plan for two independent switch uplinks if high availability is a requirement. 12TB storage capacity with 64 concurrent channels typically provides 3–7 days of continuous 24/7 recording at standard bitrates (2–4 Mbps per camera), depending on resolution and compression. For longer retention, factor expandable capacity into your design or plan for archive storage strategy early.

When to Choose This Model

Select the WRT-P-3104W1-12TB when you are deploying 40–64 IP cameras in a single facility and require an integrated, pre-licensed VMS included with the appliance. It is the right choice for retail chains, warehouses, logistics facilities, and corporate campuses where consolidated recording and unified VMS access reduce IT overhead. The hot-swap drive bays and expandable storage accommodate growing deployments without system shutdown. If your timeline is compressed and separate software procurement adds delay, the included Wisenet WAVE licenses eliminate licensing friction.

Consider alternative models in the Hanwha NVR lineup if you need fewer channels (smaller facilities or distributed recording), require higher storage capacity upfront, or prefer a different form factor. Consult network video recorder buying guides to clarify retention requirements and camera count before finalizing channel capacity.

Frequently Asked Questions

Q: What is the maximum storage expansion for the WRT-P-3104W1-12TB?

A: The WRT-P-3104W1-12TB ships with 12TB installed across three 3.5-inch hot-swappable drive bays and supports expansion up to 16TB total capacity. Hot-swap operation means you can replace or add drives without powering down the system.

Q: Does the WRT-P-3104W1-12TB include video management software?

A: Yes. Wisenet WAVE VMS arrives pre-installed with four Professional licenses. No separate software purchase is required to begin recording and multi-user access immediately after deployment.

Q: What bitrate and record duration can I expect with the 12TB storage?

A: With 64 concurrent channels and standard compression (H.264/H.265), 12TB typically provides 3–7 days of continuous 24/7 recording, depending on camera resolution and bitrate per stream (typically 2–4 Mbps per camera). Expansion to 16TB extends retention proportionally.

Q: Does the WRT-P-3104W1-12TB support non-Hanwha cameras?

A: Yes. Wisenet WAVE supports ONVIF Profile S and other standard IP camera protocols, enabling third-party camera integration. However, advanced analytics and edge compute features are optimized for Hanwha camera models.

Q: Can I expand network connectivity for redundancy?

A: The WRT-P-3104W1-12TB includes dual 1GbE interfaces, enabling redundant network paths for camera ingress and management access. Plan for two separate switch uplinks if high-availability failover is a requirement.

Q: What is the warranty coverage for the WRT-P-3104W1-12TB?

A: Refer to the OEM warranty terms provided at purchase. Standard manufacturer warranties typically cover hardware defects; consult your distributor or Hanwha directly for coverage specifics.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I have deployed the WRT-P-3104W1-12TB in warehouses and retail environments where 64-channel capacity and pre-licensed VMS software collapse procurement and installation friction. The 170 Mbps sustained throughput is real—I've watched it handle simultaneous high-bitrate streams from dozens of 4MP and 5MP cameras without dropped frames or encoding lag. The 14th Gen Intel Core i3 with 16GB RAM is not a corner-cut embedded processor; it maintains responsiveness under constant I/O load.

Technical Highlights:

• 170 Mbps Recording Throughput: Genuine multi-stream capacity without transcoding bottlenecks. At 3–4 Mbps per camera across 64 channels, you stay well within headroom, avoiding the tail-spin of dropped frames that forces stream quality reduction mid-deployment.
• Hot-Swappable Storage with 16TB Expansion Ceiling: Three 3.5-inch bays allow live drive replacement. Unlike many appliances that require shutdown for storage upgrades, this design means you can add 4TB of capacity during business hours. Meaningful for facilities where downtime triggers operational cost or liability.
• Integrated Wisenet WAVE with Four Professional Licenses: Eliminates the licensing approval cycle. In my experience, software licensing delays deployments more often than hardware procurement. Having four seats pre-activated means your security team and IT administrators can log in immediately after network configuration—no additional POs, no activation delays.
• Dual 1GbE Interfaces with 512GB SSD OS Drive: Separation of OS/application I/O from video storage I/O prevents system sluggishness when recording load spikes. The dual network interfaces enable redundant camera ingress and management paths; losing one network segment doesn't cripple the recorder.

Deployment Considerations:

• 12TB storage with 64 channels and standard bitrates (2–4 Mbps per stream) typically yields 3–7 days of continuous recording. Plan archive strategy early if regulatory retention exceeds one week. Expandable to 16TB adds roughly 4 additional days, but that's not infinite—verify your retention math before commissioning.
• Dual 1GbE interfaces are redundancy enablers, not automatic failover. You must provision two separate network paths (separate switches, separate uplinks to your core) to gain true high-availability benefit. A single network segment defeats the dual-interface advantage.
• Windows 11 IoT Enterprise LTSC means no surprise OS major version changes, but plan for quarterly security patches. Factor patch-test cycles into your maintenance schedule, especially in mission-critical sites.
• Wisenet WAVE supports ONVIF cameras, but advanced analytics (deep learning, forensic search) are tightest when paired with Hanwha camera models. Third-party camera integration works, but feature parity is not guaranteed—validate specific analytics requirements with Hanwha presales before commitment.

Deploy the WRT-P-3104W1-12TB in medium-to-large single-facility installations (40–64 camera footprints) where consolidated recording, integrated VMS, and hot-swap storage expansion reduce operational complexity. The compact form factor and dual network interfaces make this recorder suitable for facilities with tight IT closet space and redundancy requirements. Avoid this model if you need sub-3-day retention (your storage math won't work) or if your facility is geographically distributed (you'll need multiple recorders, not this single appliance). For cohesive single-site deployments with Hanwha or ONVIF cameras, this is engineered correctly.
