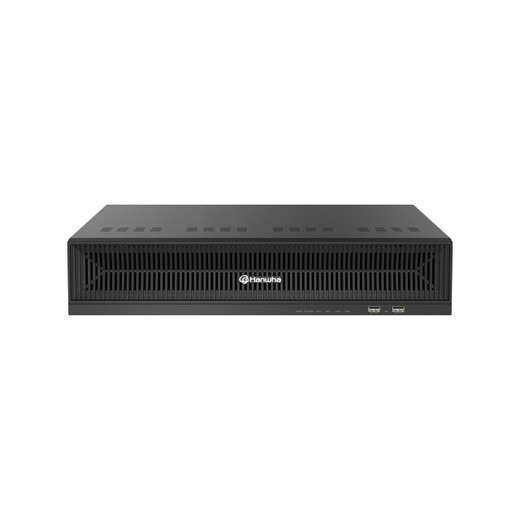

Hanwha WRN-1632S-12TB 32-Channel 2U PoE+ NVR 12TB

Hanwha WRN-1632S-12TB 32-Channel 2U PoE+ NVR with 12TB Storage

The Hanwha WRN-1632S-12TB is a rackmount network video recorder engineered for mid-to-large enterprise and warehouse automation deployments where integrated power delivery and efficient multi-codec recording directly reduce infrastructure complexity and operational cost. This 2U appliance combines 32-channel recording capacity with 16 built-in PoE/PoE+ ports (200W total budget), eliminating the need for external power injectors and simplifying network topology design. Running on Intel architecture with Ubuntu 22.04 LTS, the WRN-1632S-12TB ships with 12TB of pre-installed storage and supports H.265, H.264, and MJPEG codecs to accommodate heterogeneous network video recorder installations without re-encoding overhead.

Key Features

• 32-Channel Recording Capacity: Supports up to 32 IP camera feeds simultaneously. Critical for medium-to-large facilities where a single recorder consolidates video from multiple zones, reducing management complexity and eliminating the capital expenditure and network overhead of separate appliances. Centralizes storage, backup, and retention policy across the entire site.

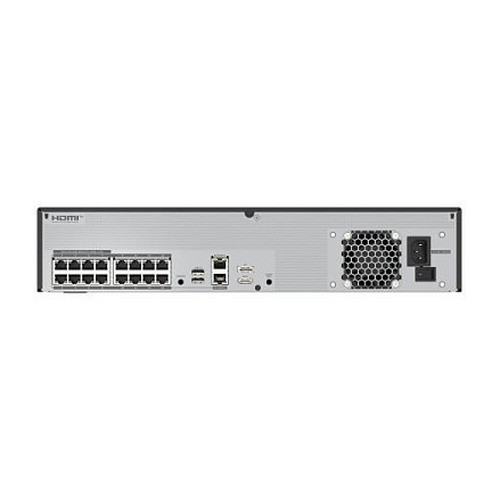

• Integrated 16 PoE/PoE+ Ports with 200W Power Budget: Built-in 802.3at PoE+ switching delivers up to 30W per port across 16 ports. Eliminates external PoE injectors and dedicated power distribution infrastructure—a substantial savings on hardware, cabling labor, and rack space, particularly in retrofit scenarios. The 200W budget supports approximately 12–16 standard IP cameras at 10–15W each, or 8–10 high-power PTZ units at 20–25W concurrently. Simplifies power delivery topology and reduces single points of failure.
• 250 Mbps Recording Throughput: Handles simultaneous high-bitrate streams from multiple channels without throttling or frame-dropping. Essential for deployments mixing standard-definition and high-resolution cameras, or mixed codec environments (H.265 and H.264 running side-by-side). Validates that peak bandwidth demand won't compromise video quality, introduce latency, or cause recorder CPU saturation during peak activity periods.
• H.265 Advanced Video Compression: Reduces storage requirements 40–60% compared to H.264 depending on scene complexity and frame rate. On a 24/7 multi-camera system, this translates directly to extended retention periods or reduced storage replacement cycles—a meaningful economic impact over the appliance lifecycle. The WRN-1632S-12TB's pre-installed 12TB capacity can hold significantly more footage in H.265 mode than in H.264, stretching retention from weeks to months on busy feeds without additional hardware investment.
• Multi-Codec Support (H.265, H.264, MJPEG): Manages mixed-vendor camera environments without forcing standardization or incurring re-encoding penalties. Allows gradual camera fleet upgrades or heterogeneous camera deployments without recorder replacement. Reduces operational friction when integrating legacy IP cameras with newer models.
• 4 Internal SATA HDD Bays—12TB Pre-Installed, Expandable to 40TB: Unit ships ready to deploy with no drive imaging or configuration required. Supports 24/7 recording at full 32-channel capacity with H.265 codec enabled. Expandable to 40TB raw capacity (10TB per drive maximum) via four 3.5" SATA bays, allowing retention extension without purchasing a second recorder. Internal expansion eliminates external NAS dependency and keeps video data on the local appliance for faster seek times and reduced network congestion.
• AI Metadata and Analytics Support: Compatible with Hanwha Wisenet AI analytics engines for object detection, people counting, loitering detection, and zone intrusion. Enables proactive security workflows (automated alerts and event-driven responses) rather than reactive video review, reducing security operations overhead and improving incident response velocity.
• Audio Output and Two-Way Communication: Integrated audio support enables event-driven speaker announcements and two-way talk-back through compatible cameras. Useful for retail loss prevention, facility access control, and warehouse management scenarios where staff need real-time communication with monitored zones.
• 2U Rack Mount Form Factor: Fits standard 19-inch data center and network closet environments. Vertical integration into existing infrastructure minimizes footprint and power density concerns. Designed for professional IT/network deployment without requiring floor space or special mounting.

Integration and Compatibility

VMS Ecosystem: The WRN-1632S-12TB integrates with Wisenet WAVE client software, mobile app, and cloud-sync modes for unified management across on-premises and cloud storage. Full ONVIF Profile S/T/G compliance ensures compatibility with third-party video management software platforms (Milestone XProtect, Genetec Security Center, and others), avoiding vendor lock-in and supporting heterogeneous enterprise deployments. Wisenet WAVE enables intelligent search, metadata-driven queries, and rule-based event management across all 32 channels from a single dashboard.

Deployment Scenarios

The WRN-1632S-12TB is well-suited for:

• Multi-Zone Warehouse and Logistics: Consolidates video from 32 dock doors, receiving bays, or inventory aisles into a single appliance. Integrated PoE+ ports reduce cabling runs and eliminate separate power infrastructure, critical in large warehouse footprints.
• Retail and Loss Prevention: Handles store entrance, fitting rooms, checkout zones, and back-office areas simultaneously. H.265 compression extends retention, enabling months of searchable footage for forensic analysis and compliance audits.
• Multi-Building Corporate Campus: Acts as a regional collector for smaller buildings or zones that feed into it, reducing the number of separate recorders and simplifying management policy enforcement across sites.
• Data Center and Network Operations Center (NOC): 2U rackmount form factor integrates seamlessly into existing server racks and network closets. Low power consumption and managed thermal profile fit standard data center power and cooling budgets.

Frequently Asked Questions

Q: What's the real-world storage capacity with H.265 compression enabled across all 32 channels at 24/7 operation?

A: With H.265, typical retention on the 12TB pre-installed configuration ranges from 2–4 weeks depending on camera resolution and bitrate. A single 1080p camera at 4 Mbps in H.265 consumes roughly 1.7 GB per day; 32 cameras at similar bitrates consume approximately 54 GB per day, yielding 220+ days of storage on the 40TB maximum (four 10TB drives). Higher resolutions or bitrates will reduce retention proportionally.

Q: Does the WRN-1632S-12TB work with non-Hanwha cameras?

A: Yes. Full ONVIF Profile S/T/G compliance ensures compatibility with any standards-compliant IP camera. The multi-codec support (H.265, H.264, MJPEG) handles feeds from Axis, Hikvision, Dahua, Uniview, and other vendors without requiring firmware modifications or re-encoding.

Q: Can I expand storage beyond 12TB, and how?

A: Yes. The WRN-1632S-12TB has four internal 3.5" SATA bays. The unit ships with one 12TB drive pre-installed; the remaining three bays support up to 10TB drives each (40TB total maximum). Replacement or expansion drives are installed internally without external enclosures or network dependencies.

Q: What happens if I exceed the 250 Mbps throughput limit?

A: Frame dropping or latency may occur. The 250 Mbps aggregate throughput is a hard ceiling. To avoid this, validate your camera bitrate total before deployment using the camera manufacturer's specifications. H.265 streams consume roughly half the bandwidth of equivalent H.264 streams, so codec selection directly impacts available headroom.

Q: What's the PoE+ power budget and how many high-power PTZ cameras can I support?

A: The 200W total power budget supports 16 ports. High-power PTZ units (pan-tilt-zoom) typically draw 20–30W each; the 200W budget accommodates 6–10 PTZ cameras concurrently, or a mix of standard fixed cameras (10–15W) and PTZs. Monitor power consumption per camera in the manufacturer's datasheet and total across all connected devices to stay within budget.

Q: Is the WRN-1632S-12TB compatible with Wisenet WAVE and other VMS platforms?

A: Yes. The appliance runs Wisenet WAVE client, mobile, and cloud-sync natively. It also exposes all 32 channels via ONVIF standards, enabling integration with Milestone, Genetec, and third-party VMS systems. You are not locked into Wisenet.

Eden Phillips

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The WRN-1632S-12TB is a competent appliance for integrators building mid-scale surveillance networks where power and storage consolidation matter. The 16 built-in PoE+ ports eliminate a common failure point—external injectors—and the 250 Mbps throughput ceiling is sufficient for most 1080p and mixed 4K deployments under 32 cameras. What sets this model apart is the H.265 codec: on a 24/7 system, the 40–60% bandwidth and storage savings are not marketing claims—they translate to real retention gains and lower storage replacement frequency.

Technical Highlights:

• H.265 Codec Impact: Cuts storage cost roughly in half. A 12TB configuration in H.265 holds 2–4 weeks of 32-camera footage at typical bitrates; the same drives in H.264 hold 1–2 weeks. The math is simple enough that justifying the upgrade to H.265-capable cameras becomes easier when you show the retention ROI to a customer.
• PoE+ Consolidation: 200W across 16 ports means no external injectors, no separate UPS planning for injectors, and simpler commissioning. For warehouse or multi-zone deployments, this is a real operational win. Just validate camera power draw upfront—high-end PTZ units can chew through your budget fast.
• Expandable Storage Architecture: Four internal SATA bays with a 40TB maximum is not aggressive—it's realistic for mid-scale deployments. Avoid the temptation to populate all four 10TB drives on day one; stagger expansion as footage retention requirements grow.
• ONVIF Openness: Full Profile S/T/G compliance means you're not betting the site on Wisenet. Third-party camera integration is standard, not an afterthought. This flexibility is critical when customers want to mix vendors or upgrade cameras independently of the recorder.

Deployment Considerations:

• Throughput Ceiling: The 250 Mbps aggregate is a hard limit. If you're integrating 4K cameras at high frame rates or multiple PTZ units with continuous panning, validate total bitrate against manufacturer specs before order. This is not a gotcha if you do homework upfront.
• Power Budget Math: 200W sounds generous until you plug in a 30W PTZ and realize you've consumed 15% of your budget on one camera. Document power draw for every camera model in your project and total before installation. Oversubscribing is easy and silent.
• Storage Lifespan: HDD lifespan in 24/7 NVR duty is typically 3–5 years. Plan for drive replacement within the appliance lifecycle. Do not assume the unit will run untouched for 7 years—it won't.

The WRN-1632S-12TB positions well for warehouse automation, multi-building retail, and logistics environments where you need consolidated 24/7 recording across 20–32 zones and can justify the H.265 upgrade cost against storage savings over 3–5 years. It's not overkill for smaller sites, but it's not a bargain bin impulse buy either—it's a platform-grade appliance for integrators who know their bitrate math and respect power budgets.
