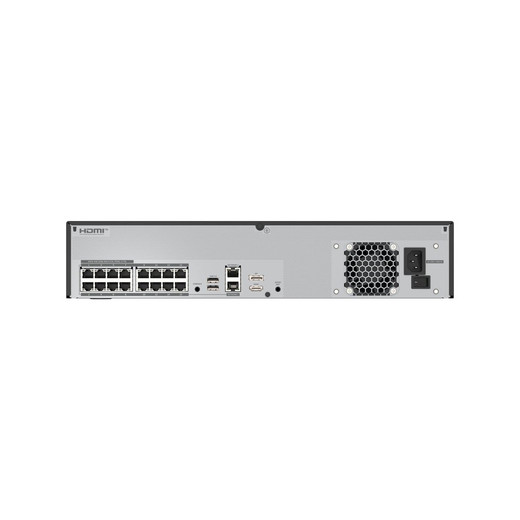

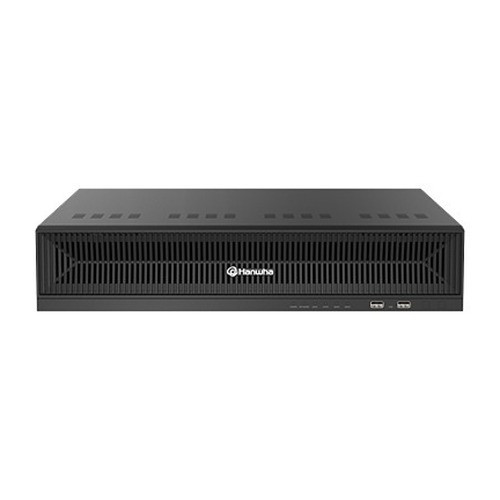

Hanwha WRN-1632S-18TB 32-Channel 2U PoE+ NVR
Overview
The Hanwha WRN-1632S-18TB is a 2U rack-mount network video recorder engineered for enterprises and integrators managing 24/7 multi-camera surveillance across corporate offices, retail chains, warehouses, data centers, and critical infrastructure. This model ships with 18TB of internal storage and supports up to 40TB total capacity across four SATA HDD slots, enabling extended retention periods without external NAS arrays. The WRN-1632S-18TB pairs 32-channel recording capability with integrated PoE+ power delivery—16 dedicated PoE/PoE+ ports carrying a 200W budget—eliminating external power injectors in moderate-scale deployments. It runs Hanwha's Wisenet WAVE VMS platform natively, consolidating camera management, event rules, and forensic playback into a single interface without separate VMS licensing or third-party middleware.
Key Features
- 32-Channel Recording with Integrated PoE+ Power Delivery: The WRN-1632S-18TB records all 32 camera streams simultaneously while powering up to 16 cameras over dedicated PoE/PoE+ ports (802.3at, up to 30W per port). The 200W total PoE budget handles typical enterprise cameras drawing 5–15W each—no external power injectors required. This reduces equipment sprawl in server rooms and installation labor, and matters most when deploying 10+ cameras in a single rack cabinet.
- H.265 Primary Codec with H.264 and MJPEG Fallback: H.265 compresses video roughly 40–60% more efficiently than H.264 at equivalent image quality. On 24/7 multi-stream recording across high-resolution cameras, this translates directly to longer retention periods within the same storage budget. H.264 and MJPEG codecs remain available for older camera models, preventing forced hardware replacements during migration.
- 250 Mbps Sustained Recording Throughput: This throughput ceiling supports 20+ simultaneous 4MP streams at 30 fps in H.265 without frame drops or encoding bottlenecks. Critical for real-time alerting pipelines and forensic playback requiring responsive multi-camera review. A single encoded stream at 4MP/30fps/H.265 consumes roughly 8–12 Mbps; the NVR handles this load without latency.
- Up to 40TB Internal Storage (Ships with 18TB): Four SATA HDD slots accept drives up to 10TB each. Expansion from the shipped 18TB to 40TB enables weeks or months of retention depending on camera count and resolution. Internal storage avoids network-attached storage complexity and is preferred in air-gapped, regulated (healthcare, finance), or bandwidth-constrained environments.
- Dual 1 Gbps WAN Ethernet Ports (Independent from PoE): Two separate Gigabit LAN ports enable network redundancy and load-balancing without saturating the PoE port bandwidth. One port can failover to a secondary ISP or backup network path if the primary link fails—essential for surveillance systems targeting >99% uptime without interrupting recording.
- AI Metadata Analytics and Forensic Search: Integrated AI-driven event detection extracts motion, object classification, and searchable metadata without offloading processing to cloud infrastructure. Reduces manual review time on multi-week recordings and supports bandwidth-constrained or air-gapped networks where cloud connectivity is unavailable or restricted.
- Wisenet WAVE VMS Native Integration: Pre-loaded Wisenet WAVE platform eliminates separate VMS licensing and simplifies management across Hanwha IP cameras and network video recorders at multiple sites. User provisioning, event rules, playback, and archival are unified without API bridges or middleware complexity.
- Audio Output and Two-Way Communication: Built-in audio capabilities support integrated alarm notification and speaker-driven announcements for response workflows. Eliminates external audio interfaces in deployments requiring audible alerts or zone-based communication.
- 0°C to +40°C Operating Range: Standard commercial climate tolerance. Server rooms or rack environments exceeding 40°C sustained require active cooling. Verify your installation site does not habitually run above this threshold, particularly in high-density racks or confined spaces without dedicated HVAC.
Integration and Compatibility
The WRN-1632S-18TB integrates natively with Hanwha network video recorders and surveillance cameras across the Wisenet ecosystem. ONVIF Profile S/T support enables interoperability with third-party IP cameras if required, though Hanwha camera pairing yields tighter feature parity and simplified provisioning. Dual WAN ports support redundant network architectures and load-balancing configurations common in enterprise deployments. Wisenet WAVE VMS handles multi-site management through centralized event rules, user roles, and scheduled archival—useful for retail chains, logistics networks, or corporate campus deployments spanning multiple buildings.
Frequently Asked Questions
Q: Can the WRN-1632S-18TB power all 32 cameras on its internal PoE ports?
A: No. The unit has 16 dedicated PoE/PoE+ ports with a 200W total power budget, sufficient for roughly 13–16 cameras at typical power draw (5–15W each). The remaining 16 camera channels require external PoE switches or power injectors. Plan your network topology accordingly during design.
Q: How much longer does H.265 retention last compared to H.264 on the same storage?
A: H.265 typically reduces file size 40–60% at equivalent quality, meaning you can record 40–60% longer on 18TB before looping. Actual gains depend on scene complexity (static scenes compress better than busy/crowded areas) and camera resolution. Run a 24-hour trial in your environment to validate retention estimates.
Q: Does the WRN-1632S-18TB support NDAA Section 889 compliance?
A: Evidence provided does not confirm NDAA designation. Contact Hanwha directly or your integrator to verify compliance status for regulated federal procurement.
Q: What happens if one of the two WAN ports fails?
A: Recording continues uninterrupted because both ports operate independently. Configure one as primary and the other as a secondary failover route in Wisenet WAVE network settings. Failover timing depends on your switch or gateway configuration.
Q: Can I expand storage beyond 40TB?
A: The WRN-1632S-18TB has four SATA HDD slots accepting drives up to 10TB each, maxing at 40TB internal. For longer retention, integrate external NAS via the network ports or implement tiered archival to secondary storage outside Wisenet WAVE.
Q: Is this unit suitable for outdoor or wet environments?
A: No. The WRN-1632S-18TB is rated for 0–40°C operating range and is not IP-rated for outdoor or moisture-exposed installation. Deploy this unit in climate-controlled server rooms or rack cabinets only.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The WRN-1632S-18TB is a credible fit for enterprise and integrator deployments requiring 24/7 multi-camera recording without external NAS complexity. The dual 1 Gbps WAN ports deserve attention—they enable network redundancy without forcing failover through a single bottleneck, which matters when you need >99% uptime. The integrated 200W PoE budget will power roughly 13–16 cameras; beyond that, you're wiring external switches anyway, so don't let the PoE count mislead you into thinking you can go all-in on integrated power.
Technical Highlights:
- H.265 Compression: Cuts storage requirements 40–60% versus H.264. On 18TB shipped capacity, this translates to weeks of additional retention at standard resolutions. Cost-per-TB matters less than retention days when forensic investigations span months.
- 250 Mbps Sustained Throughput: Handles 20+ simultaneous 4MP/30fps streams without frame drops. Real-world value: responsive multi-camera forensic playback and active alerting pipelines without encoding latency.
- Up to 40TB Internal Storage: Four SATA slots eliminate network-attached storage dependencies. Critical for air-gapped networks, regulated industries (healthcare, finance), and bandwidth-constrained sites.
- Wisenet WAVE Native VMS: No separate licensing. Integrates natively with Hanwha cameras and simplifies multi-site management through centralized rules and archival policies.
Deployment Considerations:
- The 16 PoE ports have a 200W ceiling—verify your camera power budget before committing to integrated power. Most deployments require hybrid power (some cameras on PoE, others on external injectors).
- Operating range is 0–40°C. Server rooms running sustained >40°C will throttle performance or fail storage drives. Active cooling is non-negotiable in high-density racks.
- H.265 compression benefit assumes modern cameras. Pairing with legacy H.264-only cameras negates storage savings—validate codec compatibility across your camera fleet before rollout.
Position the WRN-1632S-18TB for 24/7 retail chains, logistics networks, and corporate campuses where internal storage stability and network redundancy outweigh the marginal cost premium. It's not the choice for outdoor-only surveillance or highly mobile deployments, but for stationary multi-site enterprises, the dual WAN ports and integrated Wisenet WAVE justify the footprint.
