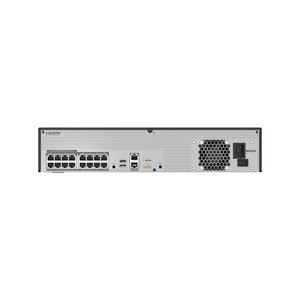

Hanwha WRN-1632-18TB 32-Channel 2U Rackmount NVR
The Hanwha WRN-1632-18TB is a centralized network video recorder engineered for mid-to-large scale IP surveillance deployments requiring simultaneous recording across 32 camera channels without external storage dependencies. Built on an Intel processor architecture and shipped with 18TB of fixed SATA storage plus four pre-activated Professional Wisenet WAVE licenses, the WRN-1632-18TB handles the codec flexibility and throughput demands of heterogeneous camera installations—where you may inherit legacy H.264 hardware alongside modern H.265 deployments.
Key Features
- 32-Channel Recording at 250 Mbps Throughput: Ingests from up to 32 IP cameras simultaneously at full frame rate without frame drops. The 250 Mbps ceiling means you can run multiple high-resolution streams—4K, 8MP, 5MP—from different vendors on the same recorder without saturation. Critical for integrators who cannot rely on synchronized camera refresh cycles or who need to absorb sudden traffic spikes during alarm events.
- H.265 Primary Codec with H.264 and MJPEG Fallback: H.265 compression reduces storage footprint by roughly 40–60% compared to H.264 for equivalent image quality. On a 24/7 multi-camera recorder, that translates to recording 45–60 days of full-resolution archive instead of 20–30 days before rolling over oldest footage. H.264 and MJPEG fallback ensure you can still ingest cameras that predate H.265 support without transcoding overhead on the recorder itself.
- 18TB Internal Storage, Expandable to 40TB: Four fixed SATA HDDs ship pre-installed, eliminating the need for external SAN or NAS provisioning during initial deployment. The 40TB maximum allows forensic-grade retention (60+ days of high-resolution multi-camera footage) for compliance workflows or criminal investigations—though thermal management in dense rackmount cabinets becomes a consideration if you approach maximum capacity.
- Four Pre-Activated Professional WAVE Licenses Included: Wisenet WAVE Professional licenses arrive ready to activate, eliminating separate software procurement and key-exchange delays. The base four channels are immediately functional; expanding beyond four channels requires additional WAVE licensing, but the foundation is established without vendor approval gates.
- Dual 1 Gigabit Ethernet (Separate WAN and LAN): Two independent RJ-45 ports enable network segmentation—one dedicated to camera ingest (LAN), one to remote access or cloud failover (WAN)—reducing broadcast traffic collisions and enabling graceful failover if a single NIC fails. For 24/7 surveillance environments where uptime SLAs are non-negotiable, this architecture eliminates a single point of failure.
- AI Metadata Integration via Wisenet WAVE: Native integration with Hanwha's WAVE analytics platform unlocks AI-powered object detection, behavioral search, and forensic indexing across recorded streams. Instead of reviewing hours of footage frame-by-frame, operators search for specific event classes (person, vehicle, loitering behavior) in seconds—a material acceleration for incident response and post-event investigation workflows. This elevates the NVR beyond simple recording storage into an investigative tool.
- Audio I/O for Synchronized Playback: Integrated audio input and output enable synchronized audio-video review and event correlation—valuable for retail loss prevention, critical infrastructure monitoring, or custody verification in law enforcement workflows where audio context is legally or operationally required.
- microSD Card Export for Evidence Chain-of-Custody: Portable microSD slot simplifies secure evidence export without requiring network bandwidth or vendor-specific USB tools. Critical for law enforcement and legal workflows where evidence integrity and chain-of-custody documentation must withstand judicial scrutiny.
Integration and Deployment Considerations
The WRN-1632-18TB integrates with any ONVIF-compliant IP camera ecosystem, though Hanwha IP cameras paired with the recorder unlock the full WAVE metadata stack without driver or protocol translation overhead. For multi-site installations or hybrid environments mixing Hanwha with third-party cameras (Axis, Hikvision, Uniview, etc.), verify that non-Hanwha cameras support H.265 encoding if storage optimization is a priority; legacy cameras defaulting to H.264 will consume storage at roughly 2x the rate of H.265 equivalents.
Network planning should account for the 250 Mbps peak throughput and the dual-NIC segmentation—ensure your camera network and NVR LAN uplink are provisioned to sustain continuous ingest without congestion during peak activity hours. For network video recorder deployments in bandwidth-constrained sites (remote facilities, satellite offices), confirm that your WAN link can accommodate remote access and cloud sync without starving camera ingest on the LAN port.
What's in the Box
The WRN-1632-18TB ships as a standalone 2U rackmount unit with 18TB of pre-installed SATA storage and four activated Professional Wisenet WAVE licenses. No separate power supplies, no external drives, no license keys to manage—the unit is ready for mounting into a standard 19-inch rackmount cabinet upon arrival.
Frequently Asked Questions
Q: What is the maximum retention time with the 18TB storage?
A: Retention depends on codec, resolution, and frame rate. With H.265 compression and 32 channels recording 24/7 at mixed 5MP/8MP resolution, expect 45–60 days of continuous archive before the oldest footage rolls over. With H.264 (lower compression efficiency), retention drops to roughly 20–30 days under the same conditions. The 40TB expansion capacity extends this to 60+ days with H.265.
Q: Does the WRN-1632-18TB support ONVIF cameras from other manufacturers?
A: Yes. The NVR accepts any ONVIF-compliant IP camera. However, Hanwha cameras paired with the WRN-1632-18TB unlock full WAVE AI analytics. Third-party cameras will record and stream normally but will not integrate with WAVE metadata features unless the manufacturer provides WAVE-compatible drivers.
Q: Can I expand storage beyond 18TB?
A: Yes. The WRN-1632-18TB supports up to 40TB of total internal SATA storage through drive replacement or addition. You cannot add external NAS or SAN—expansion is internal HDD only. Plan for thermal management if you max out capacity in a hot or dense rackmount cabinet.
Q: What licenses are included, and do I need to buy more?
A: Four Professional Wisenet WAVE licenses ship pre-activated. Each license enables one channel of WAVE analytics (AI object detection, behavioral search). If you deploy 32 cameras, you need 32 licenses total—purchase 28 additional licenses separately. Without WAVE licenses, the NVR records and plays back video normally but does not perform AI analytics.
Q: Can I use the WRN-1632-18TB with a cloud VMS or hybrid setup?
A: The dual-NIC architecture supports one LAN port for camera ingest and one WAN port for remote access or cloud failover. Confirm your cloud VMS platform (Milestone, Genetec, Axis Companion, etc.) supports ONVIF pull or push ingest from the WRN-1632-18TB before deployment. Hanwha's WAVE platform integrates natively; third-party VMS systems may require ONVIF driver configuration.
Q: Is the WRN-1632-18TB NDAA or TAA compliant?
A: Compliance information is not specified in the available product documentation. Contact the manufacturer or an authorized integrator for NDAA Section 889 or TAA compliance status if this is a requirement for your procurement.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The WRN-1632-18TB lands in the middle of the Hanwha rackmount lineup—practical for mid-sized integrations (30–50 camera sites) where you need local recording redundancy, H.265 codec efficiency, and baseline WAVE analytics without over-speccing into 64-channel or higher-end platforms. The 250 Mbps throughput and dual-NIC isolation are genuine deployment wins if you're managing mixed-vendor camera fleets or operating in bandwidth-conscious environments.
Technical Highlights:
- H.265 + H.264 Fallback: Cutting storage cost in half (H.265 vs. H.264 at equivalent quality) is concrete—on 24/7 32-channel ingest, that's the difference between 30-day and 60-day retention windows. The fallback codecs eliminate forced camera upgrades if you inherit legacy hardware.
- 250 Mbps Peak Throughput: This is not unlimited—confirm your camera mix doesn't exceed it during peak alarm hours. A single 8MP/30fps camera uses roughly 80–100 Mbps; 32 at mixed resolution will ride close to the ceiling under concurrent motion events.
- 18TB → 40TB Expandability: Internal SATA-only expansion means no external NAS complexity, but thermal design becomes critical at maximum capacity. Ensure your cabinet airflow spec accounts for four high-capacity drives spinning continuously in a 2U footprint.
- Pre-Activated WAVE Licenses: Four channels of AI analytics ship ready—meaningful if your deployment prioritizes forensic search on high-value zones. Each additional channel requires separate licensing; budget accordingly if you exceed four monitored areas.
Deployment Considerations:
- Dual gigabit NICs enable LAN/WAN separation—deploy accordingly. Do not assume the WAN port can sustain 250 Mbps cloud egress; segment traffic intelligently or your remote access will starve ingest.
- WAVE analytics only work on Hanwha cameras or ONVIF cameras with Hanwha-signed WAVE drivers. Third-party cameras record and play back normally but skip AI features—don't promise forensic search capabilities to end-users unless cameras are Hanwha-certified.
- microSD export is law-enforcement-grade convenience, but it is not a substitute for redundant storage or cloud failover. Use it for evidence chain-of-custody, not as your primary backup strategy.
Position the WRN-1632-18TB as the baseline 32-channel rackmount for integrations that demand H.265 efficiency, local redundancy, and entry-level AI analytics without the footprint or cost of higher-density platforms. It's right-sized for warehouse automation, regional retail chains, or critical infrastructure sites where 30–60 day retention and codec flexibility matter more than raw scale.
